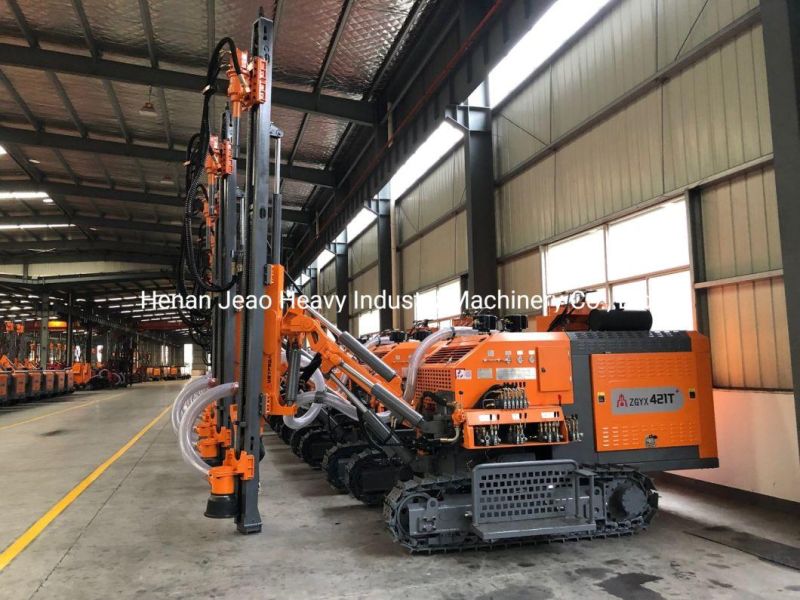

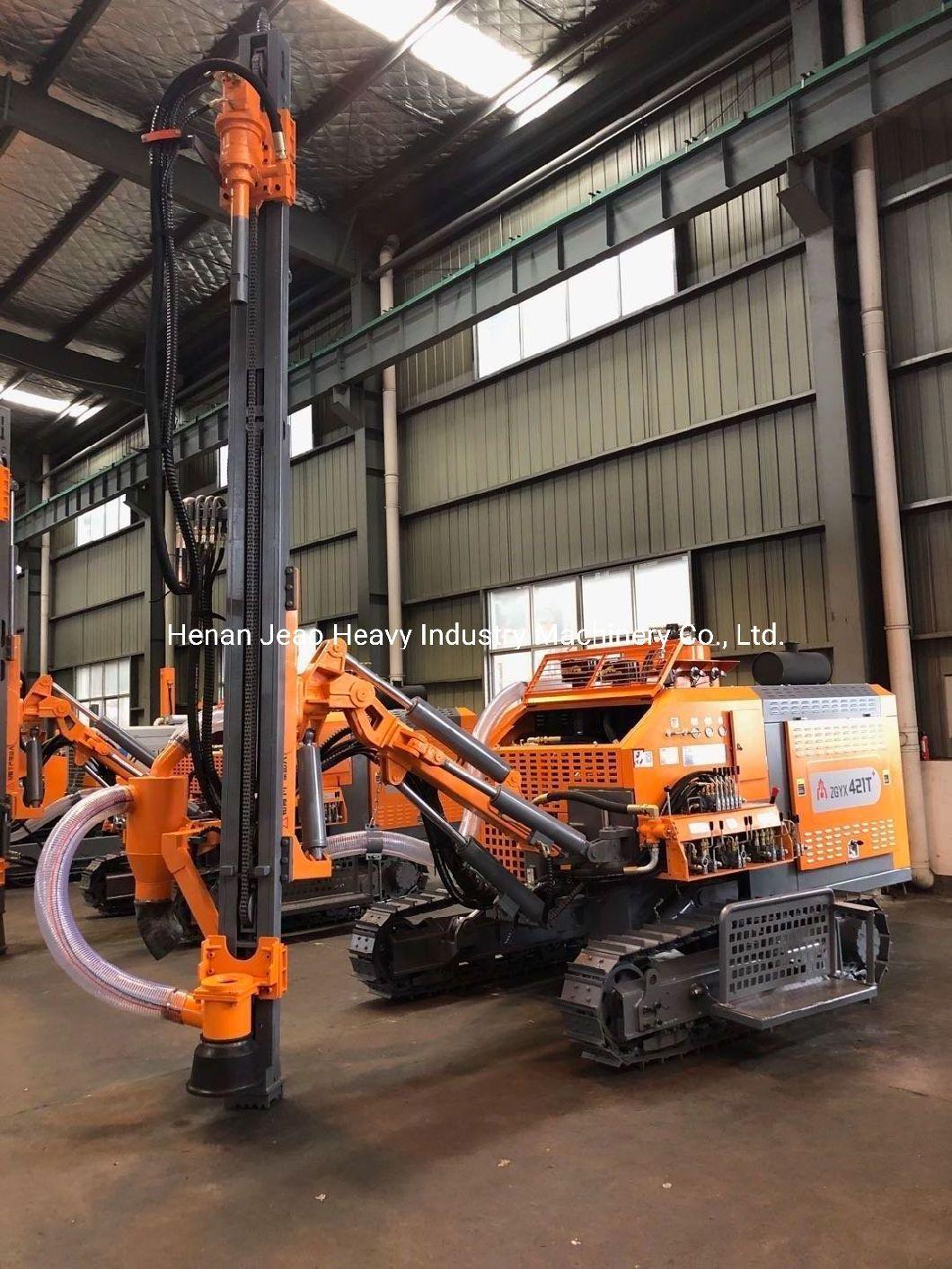

Pneumatic Crawler Integrated Open-Air Monolithic Drilling Rig

Zhejiang Zhongnuo Intelligent Machinery Co., Ltd.

Base Info

Description

Model NoZGYX-421THole Depth20mDrill Pipe SizeΦ60*3000mmHole DiameterΦ80-115mmDTH Hammer3.5"Rotation Torque1650N.mWorking Pressure14.5BarF.A.D12m3/minTramming Speed2/3 Km/hGradient30°Track Frame Oscilation±10°Total Weight6800kgTransportation Dimensions6000*2800*2750mmDry Dust CollectorStandardDual Speed Walking MotorStandard
Pneumatic Crawler Integrated Open-Air Monolithic Drilling Rig

Pneumatic Crawler Integrated Open-Air Monolithic Drilling Rig
