Air and Mud Pump Drilling Rig Borehole Water Well Drilling Machine

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

Model

HQZ-450L

Total Weight(T )

8/10

Dimensions(mm )

5300*2050*2700

Drilling Diameter(mm)

130-400

Drilling Depth(m)

450

One-time Advance Length of the Drill(mm)

3000/6000

Walking Speed(km/h)

6

Climbing Ability(max )

25

Min.Ground Clearance(mm )

300

Working Air Pressure(Mpa )

1.7-3.5

Air Consumption(m3 /min )

17-35

Main Power(kw)

100/6 cylinder

Rotation(rpm)

45-75

Rotary Torque(N.m )

9000-10000

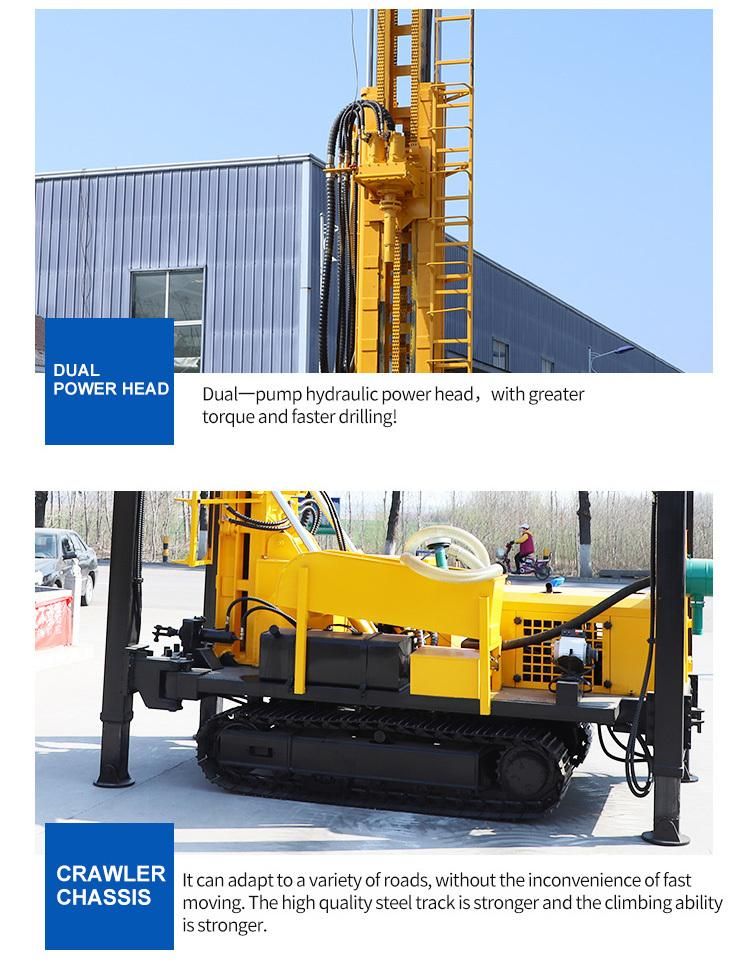

 Detail Photos

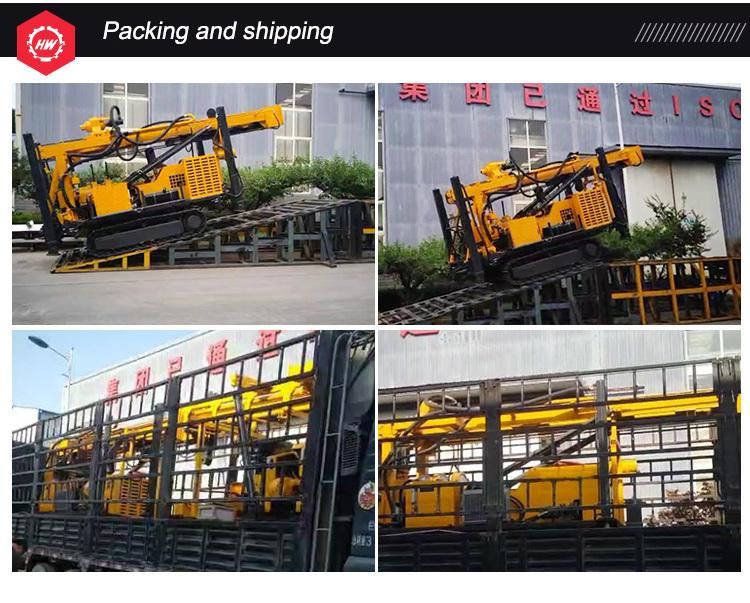

Air and Mud Pump Drilling Rig Borehole Water Well Drilling MachineAir and Mud Pump Drilling Rig Borehole Water Well Drilling Machine Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;

Air and Mud Pump Drilling Rig Borehole Water Well Drilling MachineCompany Profile
Air and Mud Pump Drilling Rig Borehole Water Well Drilling MachineAir and Mud Pump Drilling Rig Borehole Water Well Drilling Machine
