model

HW-B30

borehole diameter (mm)

φ40-φ108mm

Drill hole depth (m)

30m(diameter 40mm)

application of rock types

Soil, medium hard(10grade)

rotation speed

2200r/min

Water consumption (L/H)

14.4L/H

power (cc)

173cc

rod rotation speed (r/min)

0-800

drill pipe

(1)Drill pipe diameter (mm)

φ32

(2)drill pipe length (mm)

720mm(including connector)

(3)Drill pipe material

Titanium alloys

(4)drill pipe weight (kg)

1.1kg

hydraulic motor

(1) Power

7.5hp

The host weight (kg)

23 kg

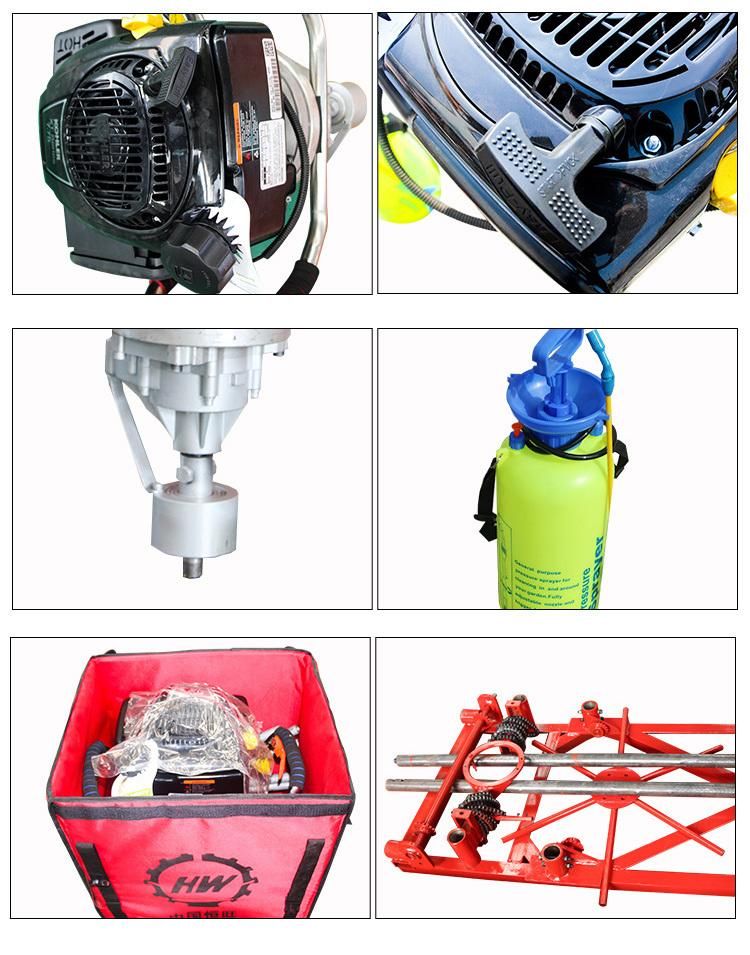

Mini Backpack drill rig Photos
