• Model NO.：STBE
• Certificate：En13236
• Customized：Customized
• Transport Package：Carton
• Specification：230x10x22.23mm
• Trademark：COREDIAM
• Origin：China
• HS Code：82023910
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. STBE Certificate En13236 Customized Customized Transport Package Carton Specification 230x10x22.23mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 10000PCS/Month

Product Description

1.Introduction

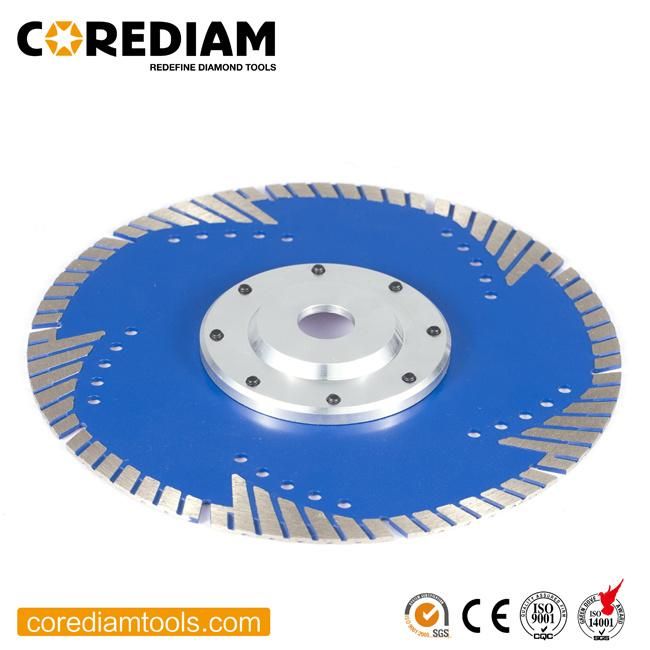

The diameter of this turbo type blade is 230mm, the segment height is 10mm. This type of blade can be applicated in cutting granite, marble and other stone materials with good efficiency. It can be installed on the angle grinder, circular saw and tile saw. MOQ is 100pcs/size. Universal dry and wet cutting blades. The unique design of segments allows ideal removal, better cooling and protecting core, and provides extremely fast cutting. The cooling holes on the core can reduce the temperature during cutting. Turbo rim segments offer efficient and clean cutting.


2.Specification  for reference: (others also availiable as per required)

Item No.	Diameter	Segment Height	Segment Width	Arbor
STBE10508	105mm	8mm	2.2mm	22.23mm
STBE11508	115mm	8mm	2.2mm	22.23mm
STBE12508	125mm	8mm	2.2mm	22.23mm
STBE15008	150mm	8mm	2.2mm	22.23mm
STBE18008	180mm	8mm	2.5mm	22.23mm
STBE23008	230mm	8mm	2.7mm	22.23mm
STBE30010	300mm	10mm	3.2mm	25.4mm
STBE35010	350mm	10mm	3.2mm	25.4mm

3. Features:
 - Universal dry and wet cutting blades.
 - Light, easily-carried.
 - The unique design of segments allows ideal removal, better cooling and protecting core, and provides turbo extremely fast cutting.
 - The cooling holes on the core can reduce the temperature during cutting.

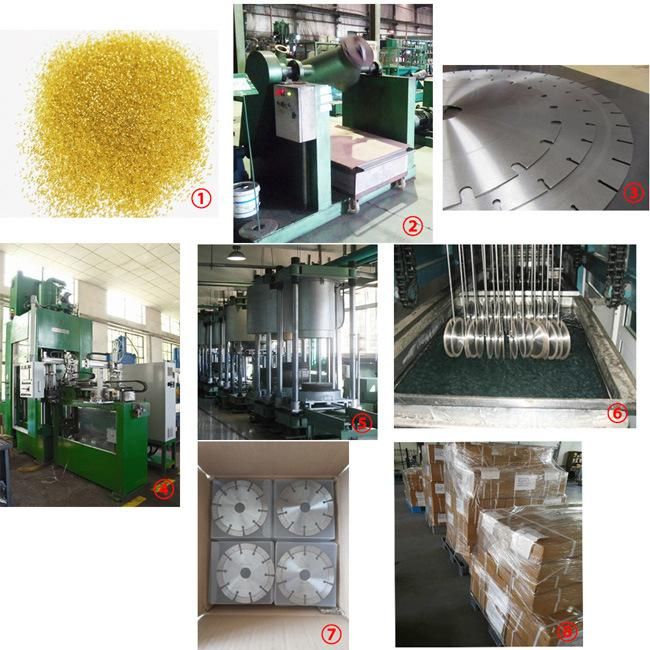

4. Production process.
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch


5. Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

6. Corediam Service
We Corediam provide full diamond blade solution for your project, offering customized diamond blade dependent on the demand of your stone cutting project.

7. Packing and delivery.
