• Model NO.：CTSE
• Specification：105mm-400mm
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. CTSE Specification 105mm-400mm Trademark Corediam Origin China HS Code 82023910 Production Capacity 1000PCS/Day

Product Description

1. Product Introduction

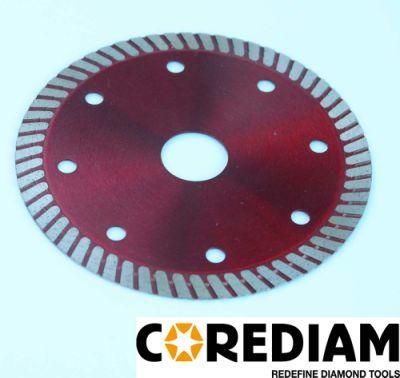

This type of blade is sinter hot-pressed, it has a longer cutting life than another normal sinter Hot-pressed blade. The diameter is 115mm. Designed professionally for cutting hard tile, ceramic tile, porcelain, this Tile blade is chosen soft bond, getting easier, smoother, faster, and chipping-free cutting performance. Thickness can be reached within 1.0mm according to your request.

2. Feature:
- Long cutting life.
- It has smooth, fast and chipping-free cutting performance.
- Light and easily-carried.
- the cooling holes on the core can reduce the temperature during cutting.


3. Delivery time

Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment. If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

4. Production process

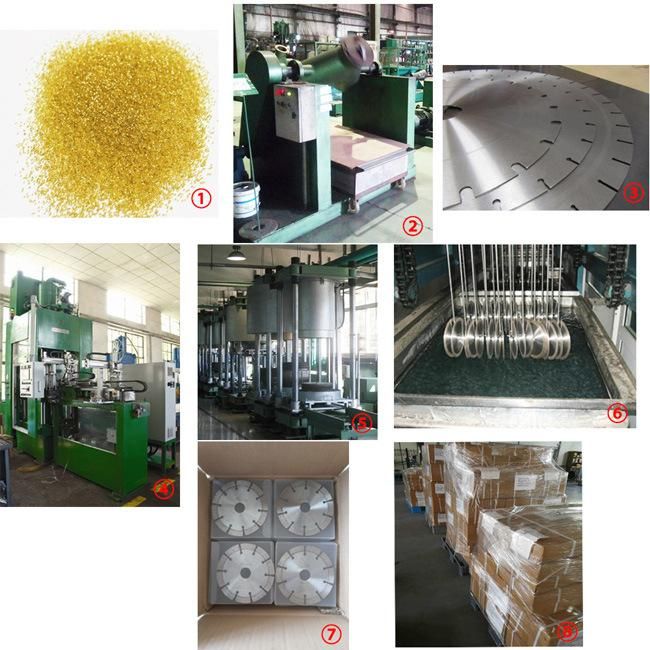

Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch




Specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
CTSE10510	105mm	10mm	1.3mm	20/22.23mm
CTSE11010	110mm	10mm	1.3mm	20/22.23mm
CTSE11510	115mm	10mm	1.3mm	20/22.23mm
CTSE12510	125mm	10mm	1.3mm	20/22.23mm

OEM service offered.

Packing and delivery.
