• Model NO.：GJB
• Application：Milk, Yogurt, Milk Powder, Cheese, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：Stainless Steel High Pressure Homogenizer for Food
• Applications：Homogenize Milk, Yogurt, Icecream, Juice,Chemical
• Capacity：500L,H--10000L,H
• Performance：0.2um
• Homogenizer Pressure：250MPa, 250bar, 70MPa
• Homogenizer Certificated：CE
• Working Life：More Than 10years
• Food Industry Homogenizer：Sanitary Contacting Parts
• MOQ：1 Set
• Motor Brand：ABB, Siemens
• Spare Parts：Available
• Voltage：Make It to Your Order
• Control Box：Yes , No
• Cooling：Tap Water

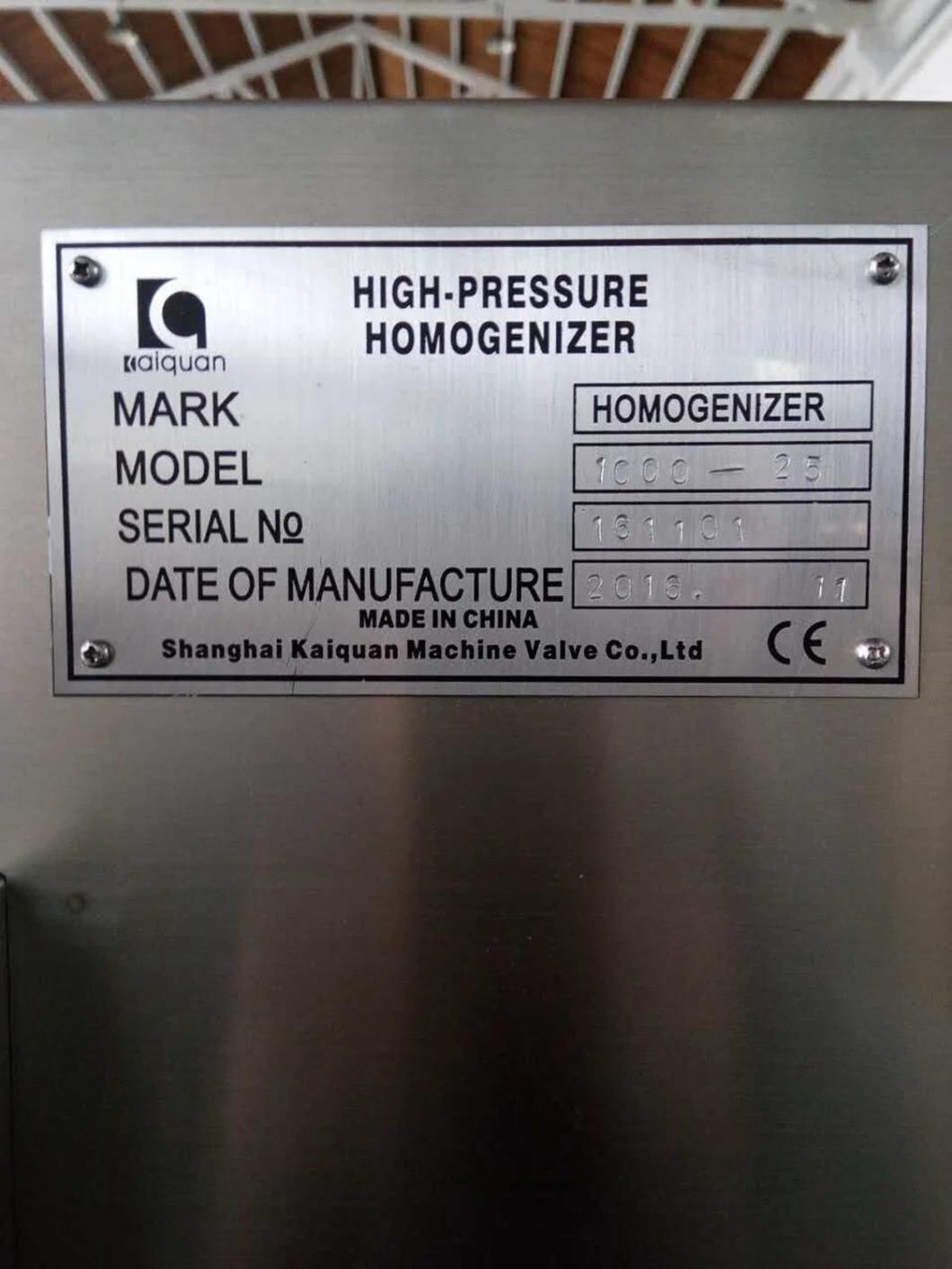

• Name Plate：Yes

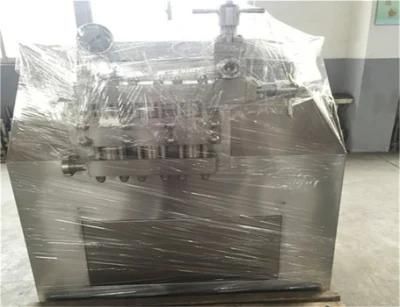

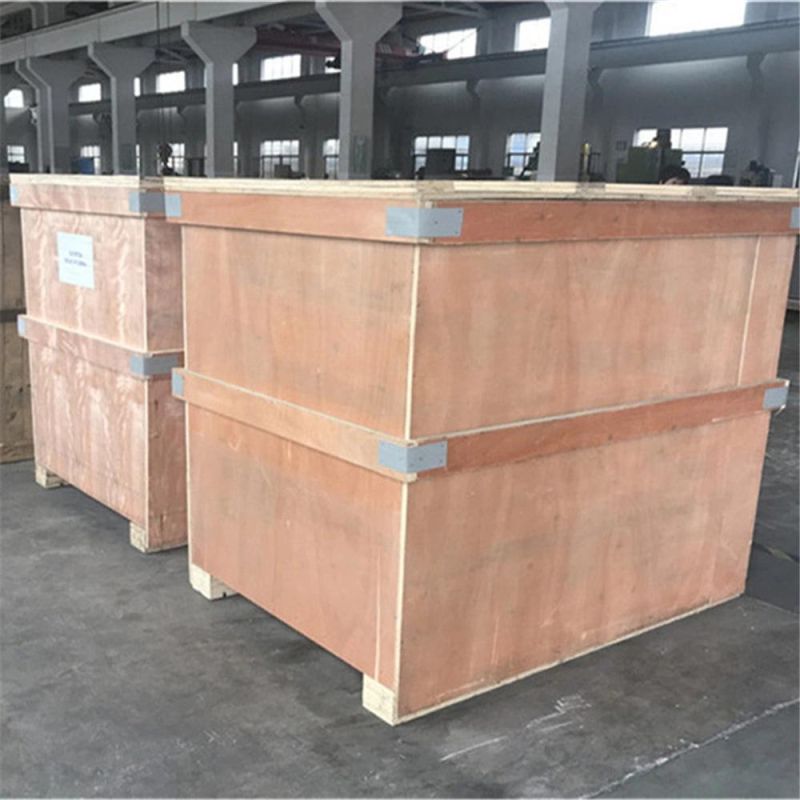

• Transport Package：Standard Wooden Box
• Specification：Follow your request
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Application Milk, Yogurt, Milk Powder, Cheese, Dairy, Milk, Juice, Beverage Customized Customized Name Stainless Steel High Pressure Homogenizer for Food Applications Homogenize Milk, Yogurt, Icecream, Juice,Chemical Capacity 500L/H--10000L/H Performance 0.2um Homogenizer Pressure 250MPa, 250bar, 70MPa Homogenizer Certificated CE Working Life More Than 10years Food Industry Homogenizer Sanitary Contacting Parts MOQ 1 Set Motor Brand ABB, Siemens Spare Parts Available Voltage Make It to Your Order Control Box Yes / No Cooling Tap Water Name Plate Yes Transport Package Standard Wooden Box Specification Follow your request Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

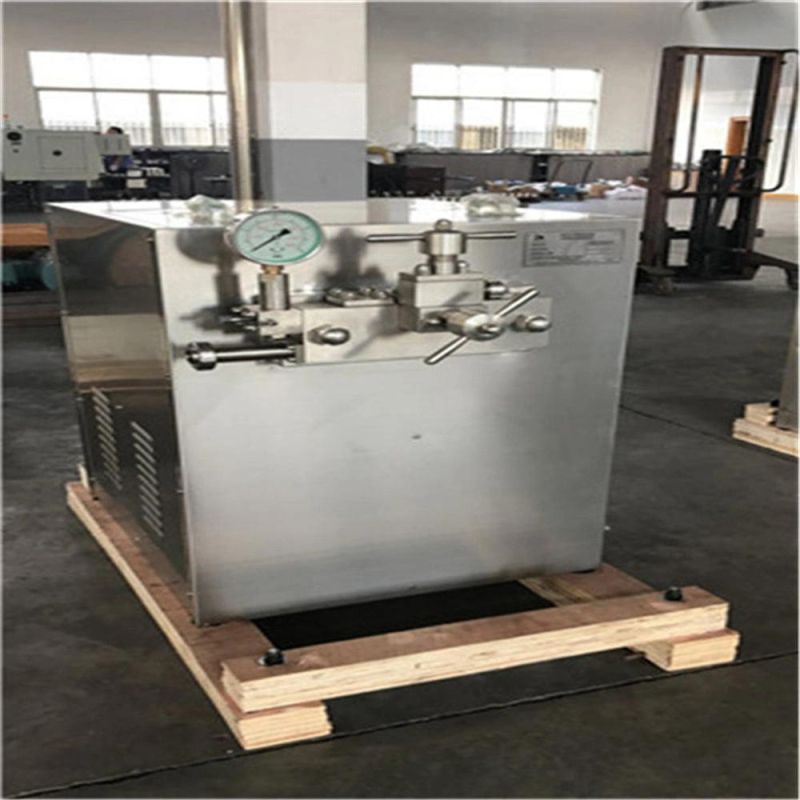

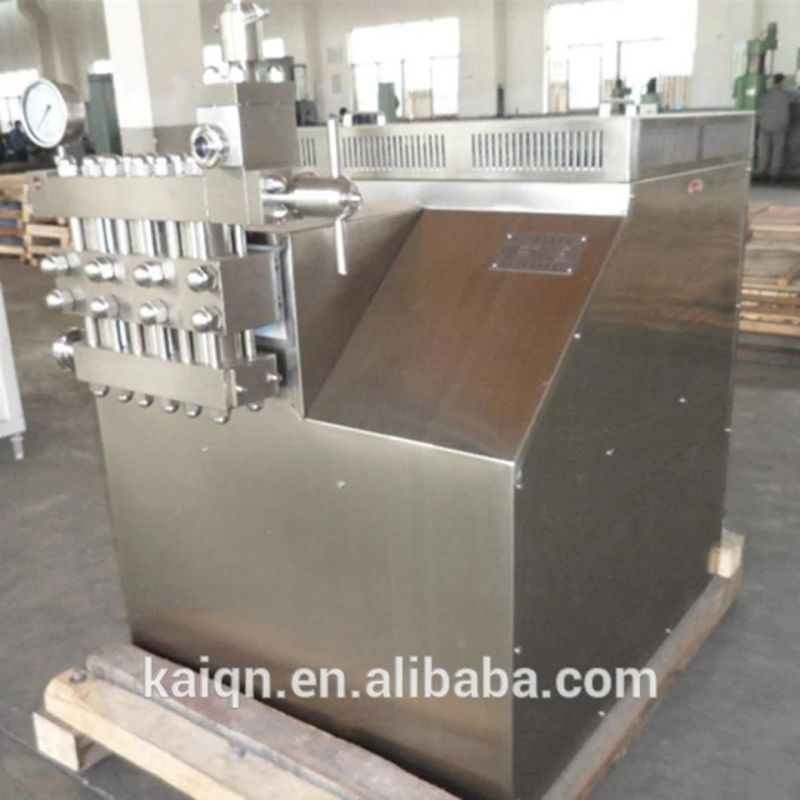

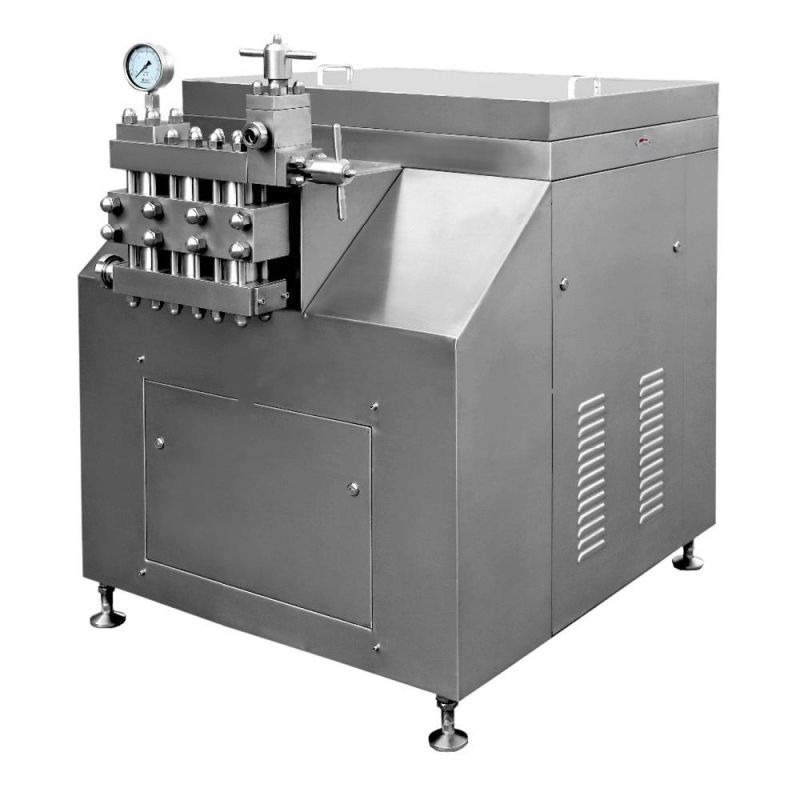

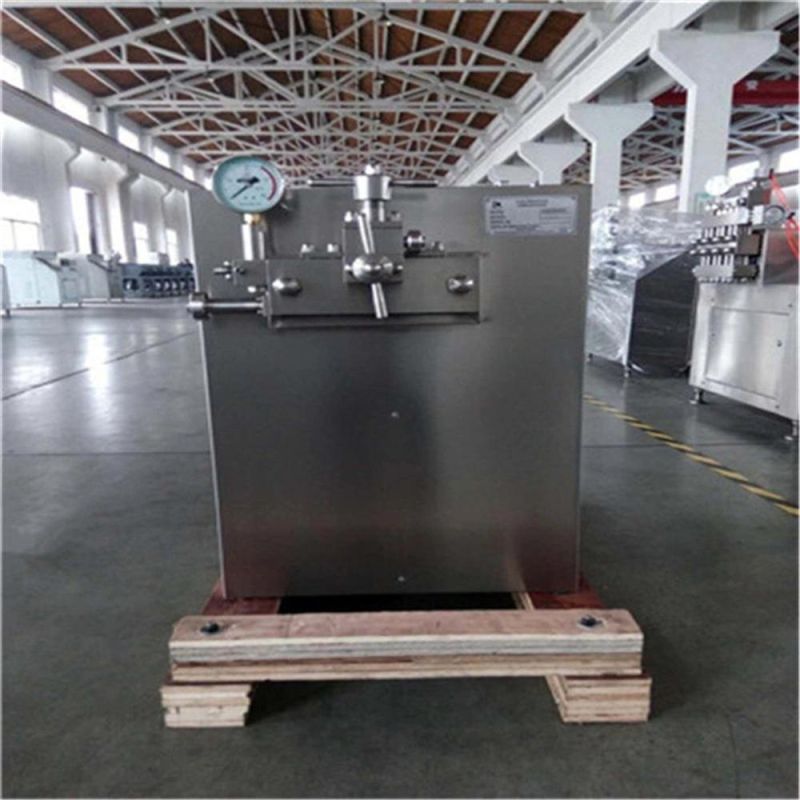

Stainless Steel High Pressure Homogenizer For Food Industry





Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
Stainless Steel High Pressure Homogenizer For Food Industry .
