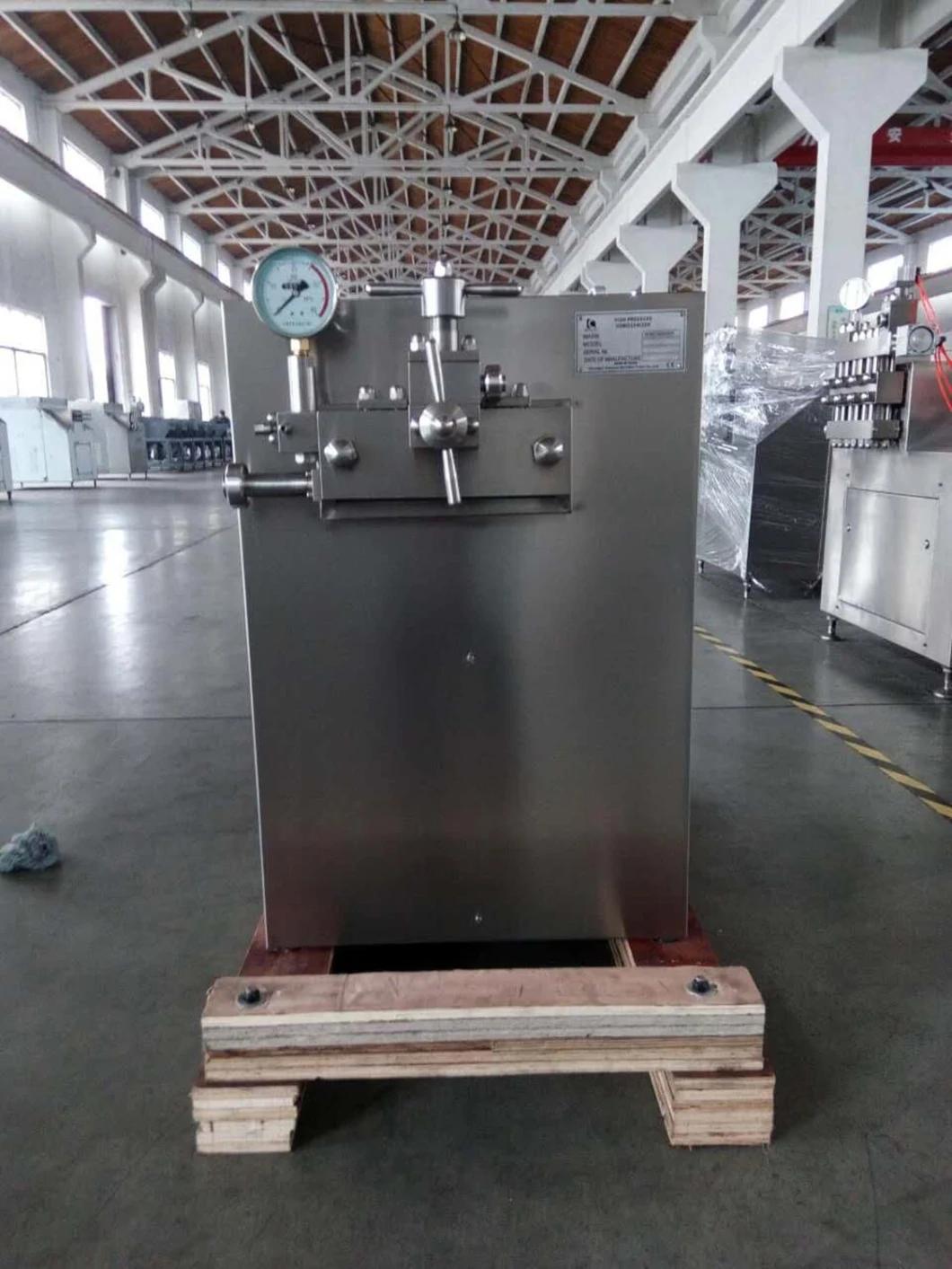

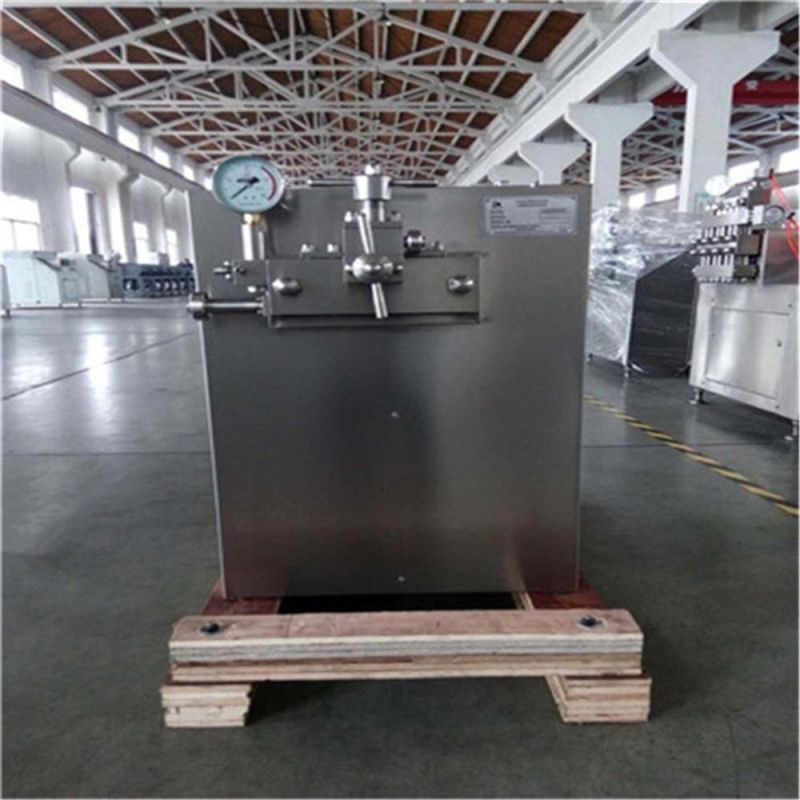

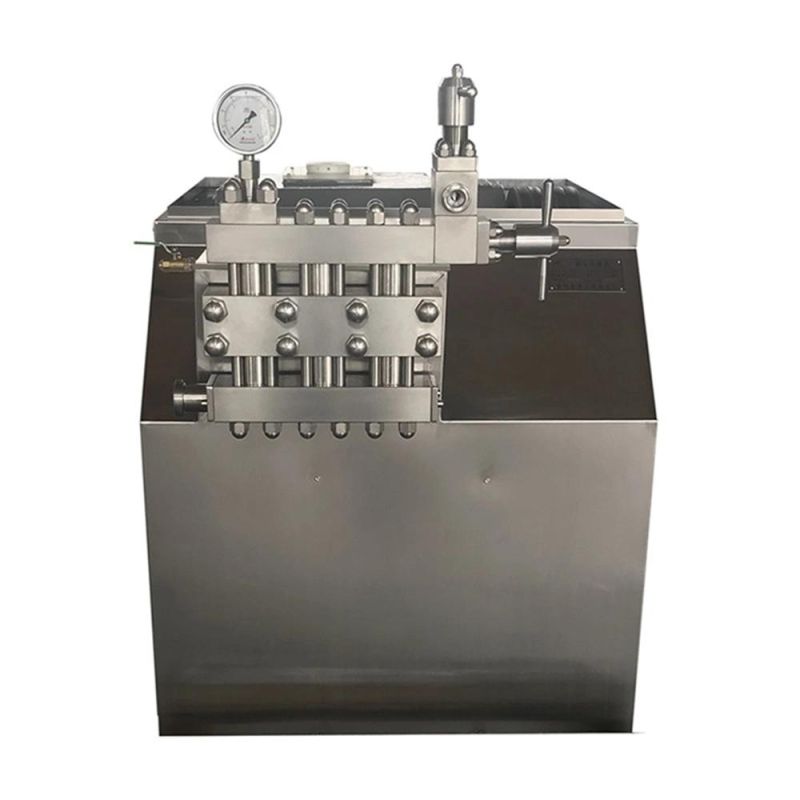

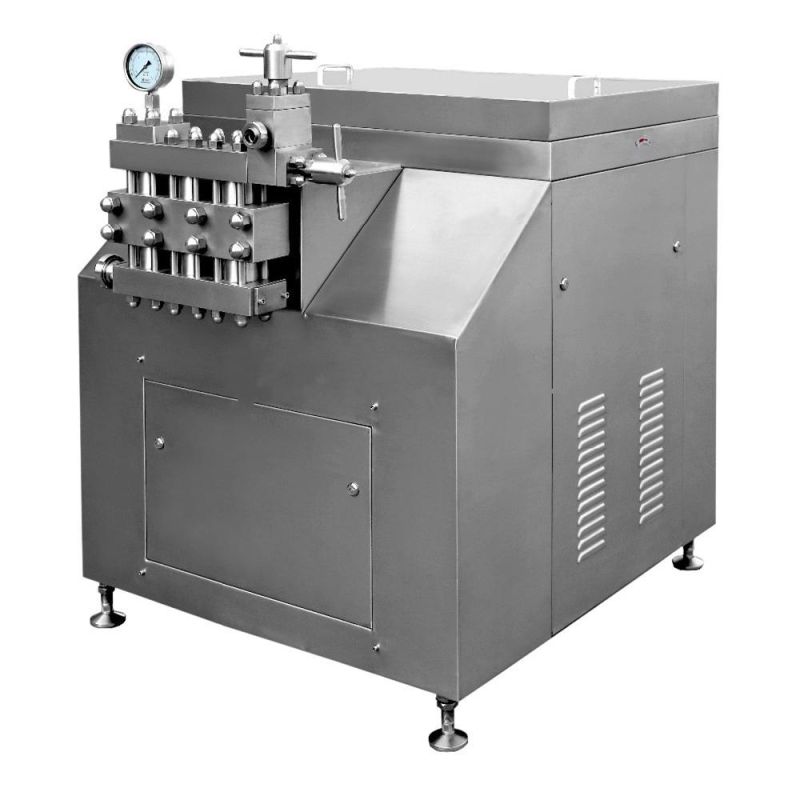

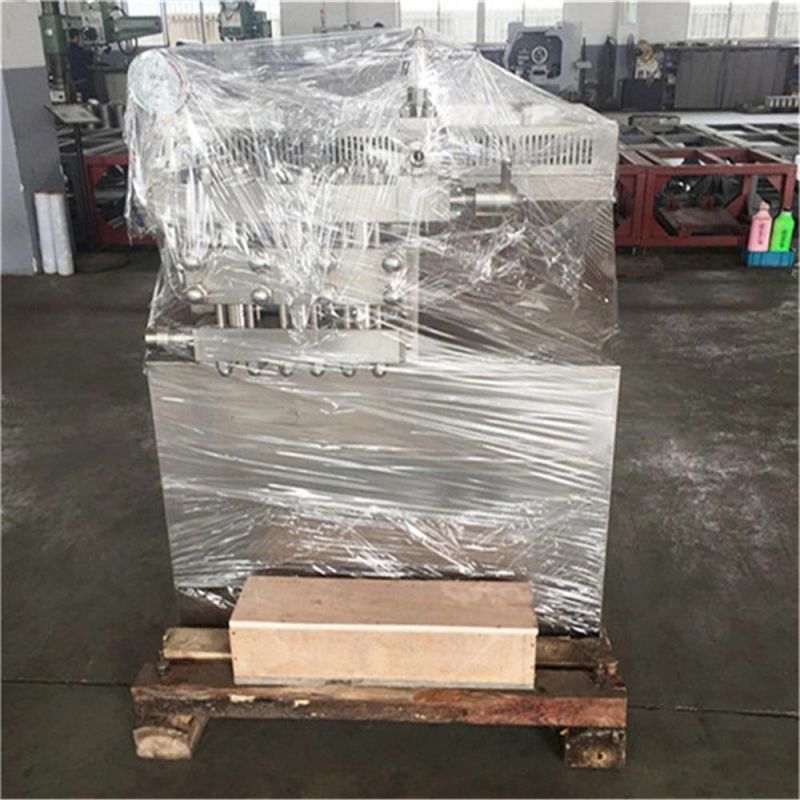

1000L Cream Homogenizer High Pressure Homogenizer Cream Homogneizer
NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD.- After-sales Service:Online Service
- Warranty:One Year
- Process:Mild Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
Base Info
- Model NO.:GJB500, GJB1000, GJB2000, GJB3000
- Application:Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
- Customized:Customized
- Name:1000L Cream Homogenizer High Pressure Homogenizer
- Material:Sanitary Stainless Steel 304 ,316
- Capacity/Flux:500L,H-10000L,H
- Pressure:20MPa to 100MPa
- Certificate:CE Certificate
- Performance:0.2 Um
- Voltage /Hz /Phase:Customized
- Stage /Piston:2,3
- Spare Parts:Available
- Packing:Wooden Box
- MOQ:1set
- Spare Part:Available
- Stage of Pressure:Two Stage
- OEM:Yes
- Cooling:Tap Water

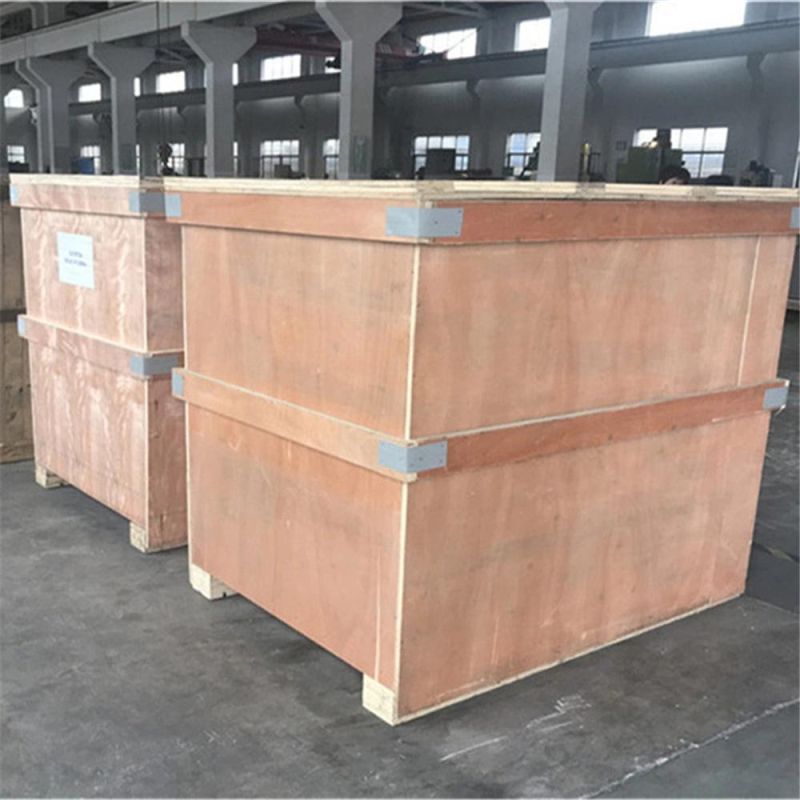

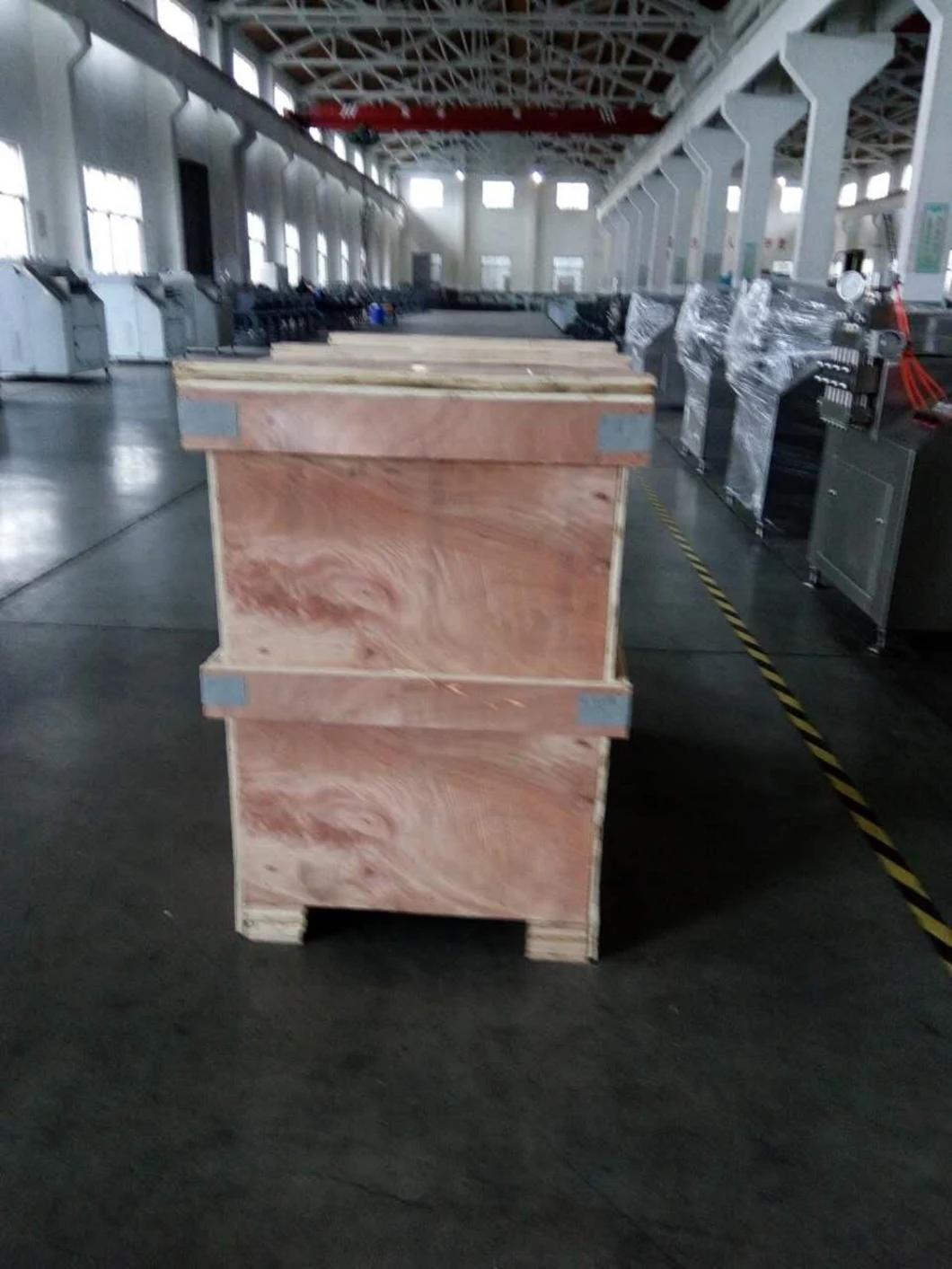

- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
Description
Basic Info.
Model NO. GJB500, GJB1000, GJB2000, GJB3000 Application Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage Customized Customized Name 1000L Cream Homogenizer High Pressure Homogenizer Material Sanitary Stainless Steel 304 /316 Capacity/Flux 500L/H-10000L/H Pressure 20MPa to 100MPa Certificate CE Certificate Performance 0.2 Um Voltage /Hz /Phase Customized Stage /Piston 2/3 Spare Parts Available Packing Wooden Box MOQ 1set Spare Part Available Stage of Pressure Two Stage OEM Yes Cooling Tap Water Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/MonthProduct Description
1000L Cream Homogenizer High Pressure Homogenizer Cream HomogneizerCE Certification
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life


The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
