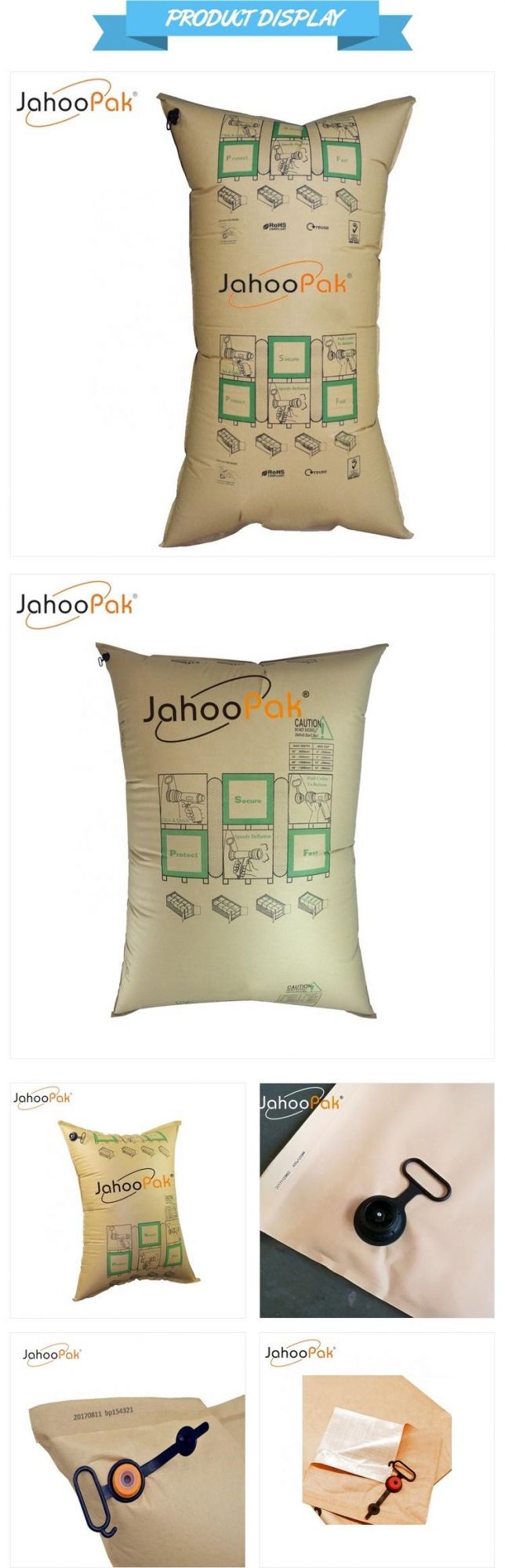

Kraft Paper Air Bags Brown Kraft Paper Container Gap Inflatable Dunnage Bag

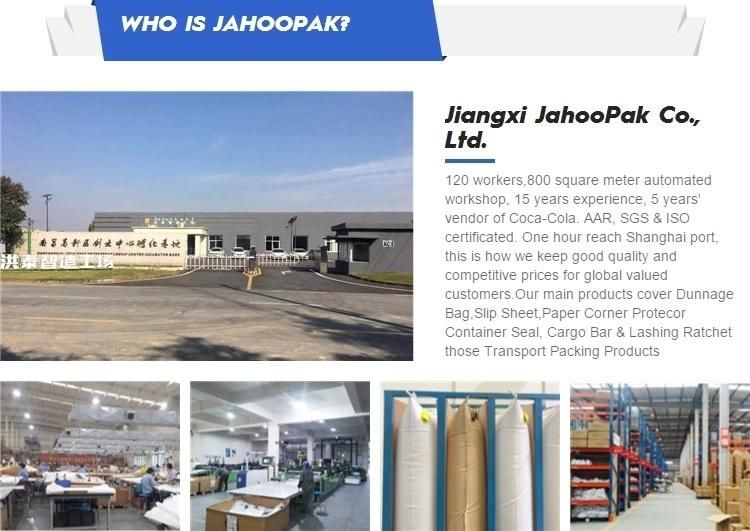

Jiangxi JahooPak Co., Ltd.- Scope of Application：Electronic Products
- Color：Brown
Base Info
- Paper Dunnage Bag Color：Brown
- Dunnage Bag Level：Level 1

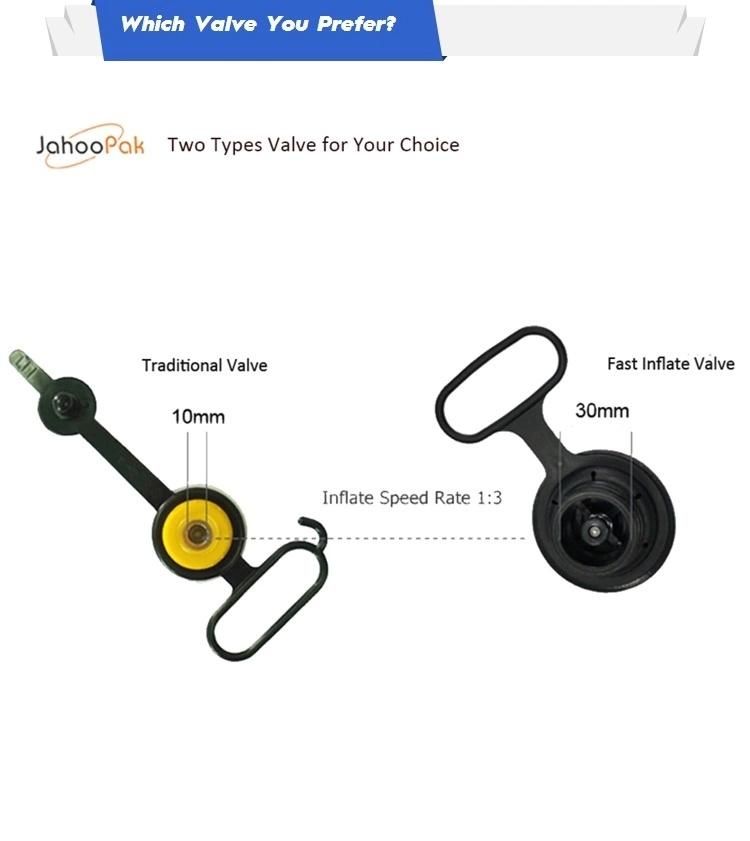

- Jahoopak Valve Choice：Proair Valve or Traditional Valve
- Air Dunnage Bag Width Range：40cm-120cm
- Container Dunnage Bag Length Range：50-330cm
- Dunnage Bag Inflation Pressure：2.6kg
- Dunnage Bag Working Pressure：Level 1: 2.9psi,0.207bar
- Paper Dunnage Bag Inner Mateials：PA Film
- Paper Dunnage Bag Outside Materials：150g Paper & PP Woven Complex
- Dunnage Bag Packing：Packing in Export Carton with Pallet
- Dunnage Air Bag Printing：OEM Acceptable
- Dunnage Bag MOQ：1 PCS
- Layer：Multi Layer
- Model NO.：120*240cm
- Transport Package：Packing in Carton with Pallet
- Specification：120*240cm
- Trademark：JahooPak
- Origin：China
- HS Code：4819400000
- Production Capacity：80000 PCS Per Day
- Package size per unit product：60.00cm * 50.00cm * 5.00cm
- Gross weight per unit product：2.000kg
Description
Enhance high barrier performance;
AAR approved JahooPak dunnage bags incorporate the latest technology and features to help you secure your loads easily and effectively.
JahooPak dunnage bags are safe and efficient while providing high quality cargo securement.
AAR Standard Test Result
| Width mm | Length mm | Using Space cm | Using Highly cm | Max Bearing Pressure(Cosswise) USA | Max Bearing Pressure(Lengthways) USA | Max Bearing Pressure(Cosswise) EU |
| 500 | 1000 | 25-30 | 90 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 500 | 1200 | 25-30 | 110 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 600 | 1200 | 30-35 | 110 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 800 | 1200 | 35-40 | 110 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 800 | 1600 | 35-40 | 150 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 900 | 900 | 40-45 | 80 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 900 | 1200 | 40-45 | 110 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 900 | 1800 | 40-45 | 170 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 1000 | 40-45 | 90 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 1200 | 40-45 | 110 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 1600 | 40-45 | 150 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 1800 | 40-45 | 170 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 2000 | 40-45 | 190 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 2100 | 40-45 | 200 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 2200 | 40-45 | 210 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1000 | 2400 | 40-45 | 230 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1200 | 1200 | 50-60 | 110 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1200 | 1800 | 50-60 | 170 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1200 | 2000 | 50-60 | 190 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1200 | 2100 | 50-60 | 200 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1200 | 2200 | 60-70 | 210 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
| 1200 | 2400 | 60-70 | 230 | 8PSI/N | 17PSI/N | 0.5512Bar/n |
