120d Paper Edge Corner Protector Making Line
Shanghai Shicheng Packaging Machinery Co., Ltd.- Transport Package：PE Film
- Warranty：Two Years
- Thickness：5-8mm
- Material：Paper
- Usage：Packaging
- Trademark：SHICHENG
Base Info
- HS Code：8441809000
- Origin：China
- Model NO.：SCEP-120D
- Production Capacity：5-10 Sets Per Month
Description
Basic Info.
Model NO. SCEP-120D Origin China HS Code 8441809000 Production Capacity 5-10 Sets Per MonthProduct Description
SCEP-120D paper edge protector production line
Specifications:
1.It drive by one axle. All drives parts are thermal refined and surface hardened.
2.It could choose hydraulic cutter or mechanical cutter.
3.It adjust the pressure by double air cylinders.
4.It is convenient to control the machine with touch screen and servo system. The cut off precision is 1000±1mm.
5.It is safe to control and maintain the machine with the alarm and the fault display on the touch screen.
6.It could see the output on the touch screen.
Specification:
| Size of edge board | 25~120mm |
|---|---|
| Thickness of edge board | 2.5~10mm |
| Speed | 0~35m/min,Economic speed:30m/min |
| Cut off precision | 1000±1mm |
| Max.layers | 13(layers) |
| GSM of paper | surface paper175~250gsm(kraft paper) inner paper 420~600gsm(bobbin paper) |
| Total power | 9.5KW |
| Dimension | 25000×1350×1700mm |
| Total weight | 4000KG |

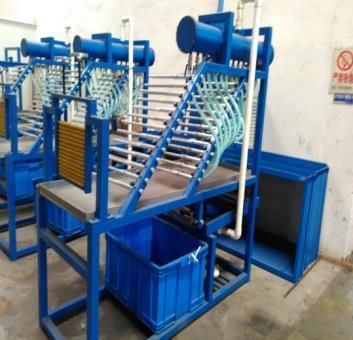

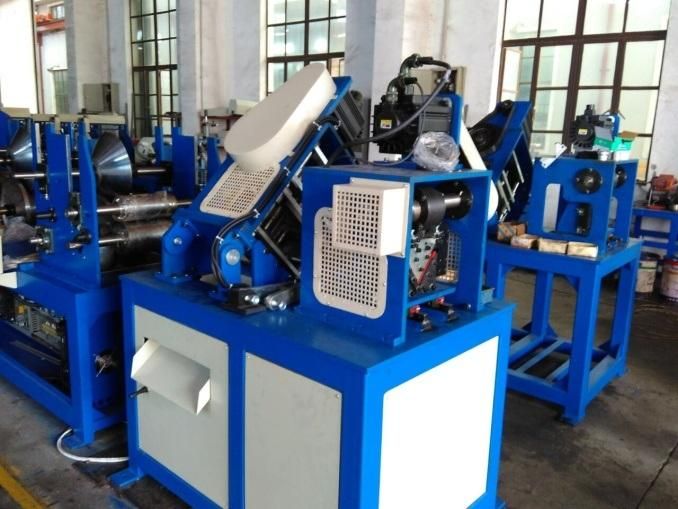

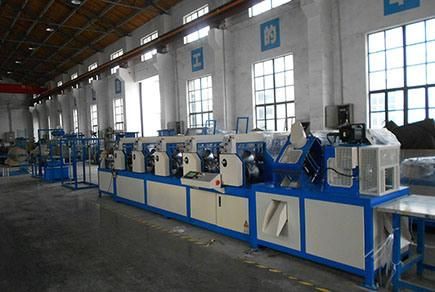

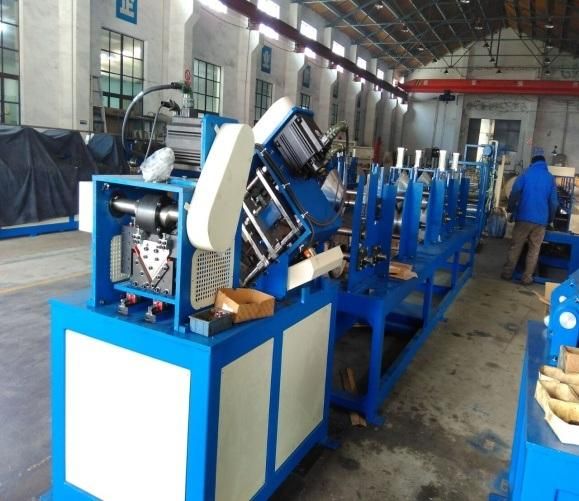

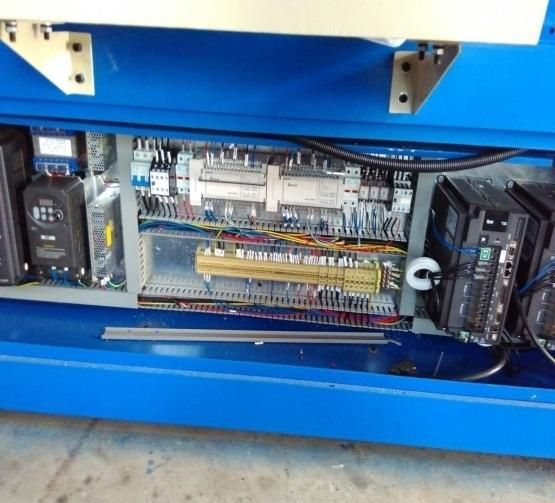

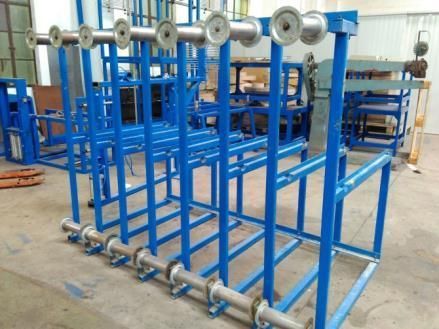

Details of machine photos:

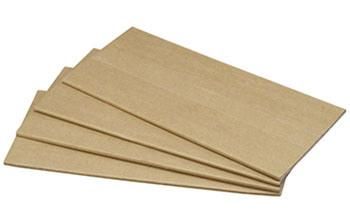

Application:

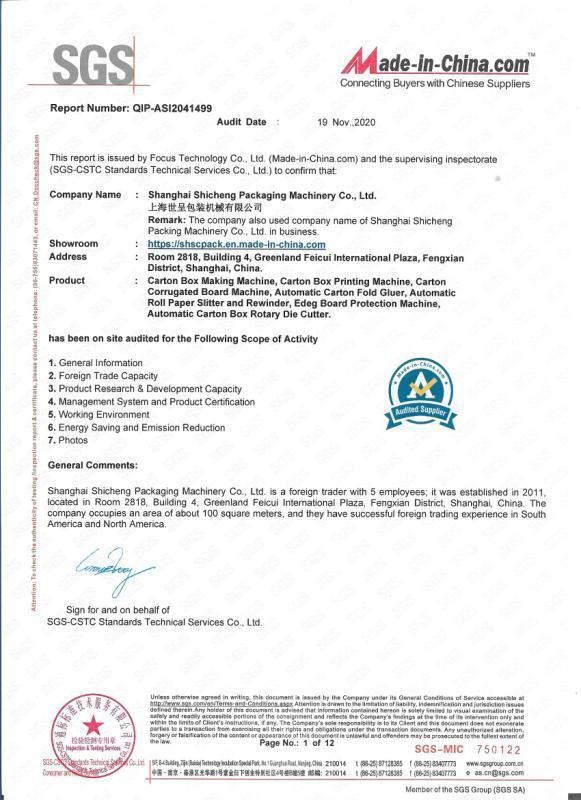

SGS Certification:
