• Transport Package：Wooden Case
• Air Supply：0.55-0.65MPa
• Heat Sealing Power：3kw
• Motor Power：2kw (380V,220V 50Hz)
• Machine Weight (Kg)：1100kg
• Overall Dimension(mm)：2500*1020*1980mm
• Operation System：Touch Screen
• Control System：PLC Control
• Filling Accuracy：≦±0.5%
• Filling Volume：5-500ml,Piece (Adjustable)
• Tube Length：50-250mm (Customizable)
• Tube Diameter：Dia10mm-60mm
• Model NO.：TubePro-60
• Specification：CE, GMP
• Trademark：LTPM China
• Origin：China
• HS Code：8422309090
• Production Capacity：25-30 Sets,Month

Basic Info.

Model NO. TubePro-60 Tube Diameter Dia10mm-60mm Tube Length 50-250mm (Customizable) Filling Volume 5-500ml/Piece (Adjustable) Filling Accuracy ≦±0.5% Control System PLC Control Operation System Touch Screen Overall Dimension(mm) 2500*1020*1980mm Machine Weight (Kg) 1100kg Motor Power 2kw (380V/220V 50Hz) Heat Sealing Power 3kw Air Supply 0.55-0.65MPa Transport Package Wooden Case Specification CE, GMP Trademark LTPM China Origin China HS Code 8422309090 Production Capacity 25-30 Sets/Month

Product Description



Product Specify
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It's ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Feature

1. With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Plastic tube,Laminated tube,Metal tube,ALU tube. It is a multi-purpose machine.
2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3. Servo control makes it precise and convenient to adjust the filling amount by touch screen.(This is optional function.)
4. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7. Three-layer jacket instant heater with inside air heating, it won't damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

Main technical parameters

Model	TubePro-60
Tube Material	Plastic tube,Laminated tube,Metal tube,ALU tube
Tube Diameter	Φ10mm-Φ60mm
Tube Length	50-250mm (customizable)
Filling Volume	5-500ml/piece (Adjustable)
Filling Accuracy	≤±0.5%
Speed (r/min)	3-10
Product Capacity (Pcs/min)	30-60
Air Supply	0.55-0.65Mpa
Motor Power	2kw (380V/220V 50Hz)
Heat Sealing Power	3kw
Overall Dimension(mm)	2500*1020*1980mm (L*W*H)
Machine Weight (kg)	1100kg

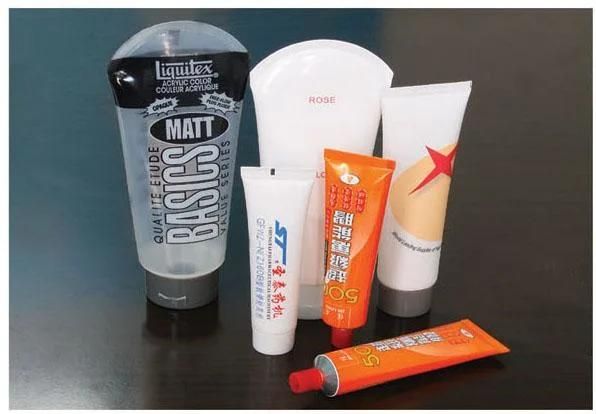

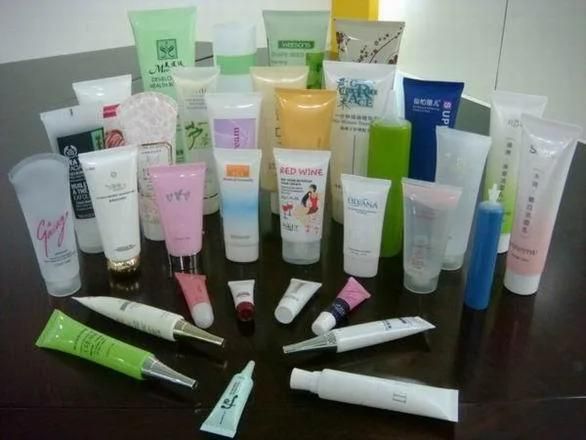

The product we packed:
Machine Specific Photo:

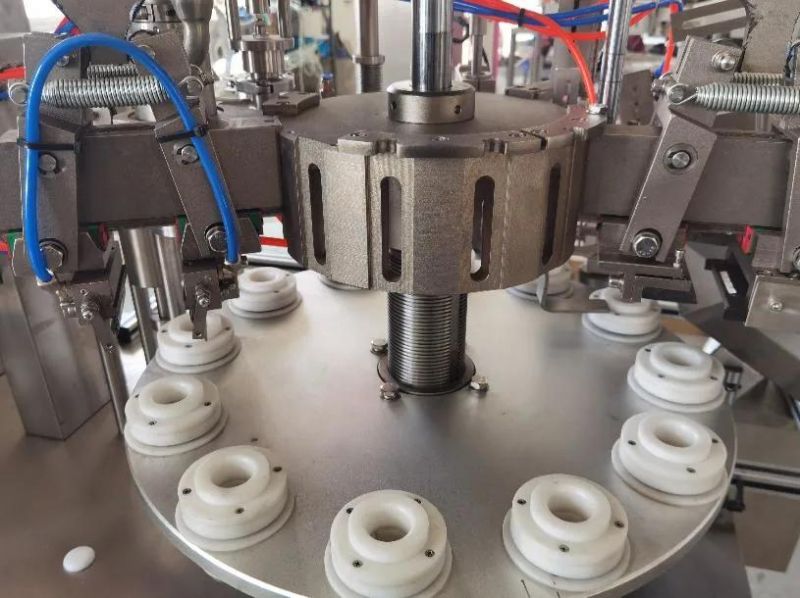

12 Sets Working Station

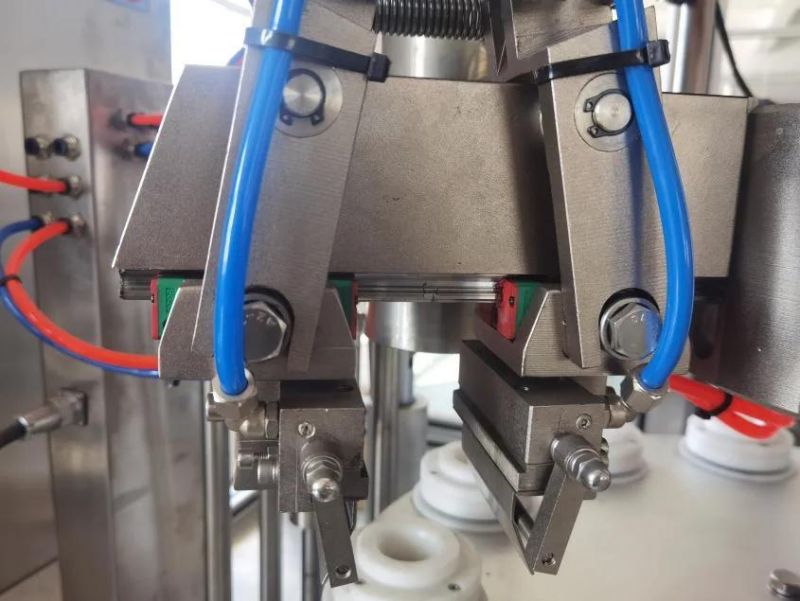

Linear Shaft Sealing STATION

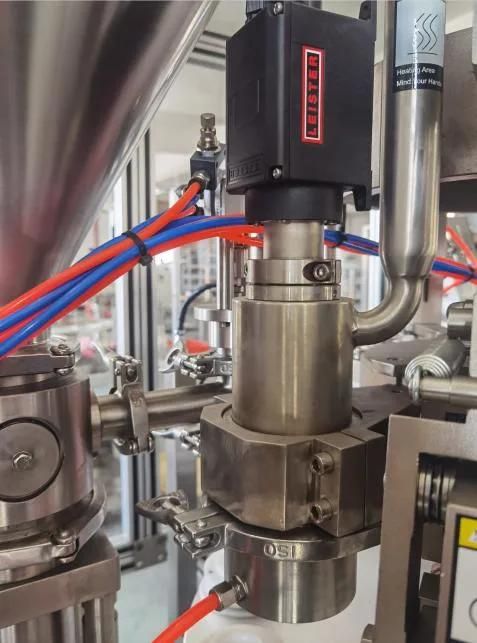

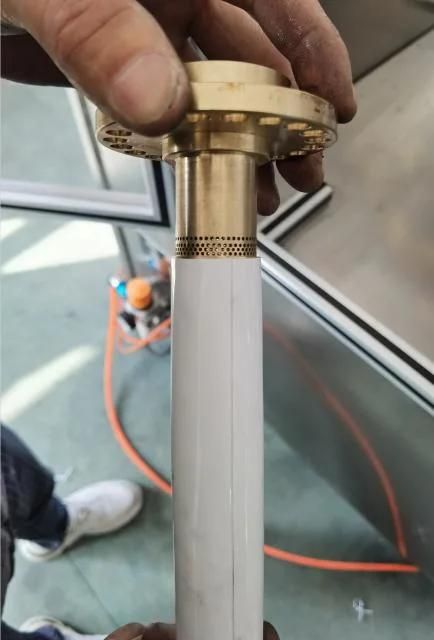

Molded Heat-Sealing Nozzle:
Non Motor Heating System:
Company Introduction

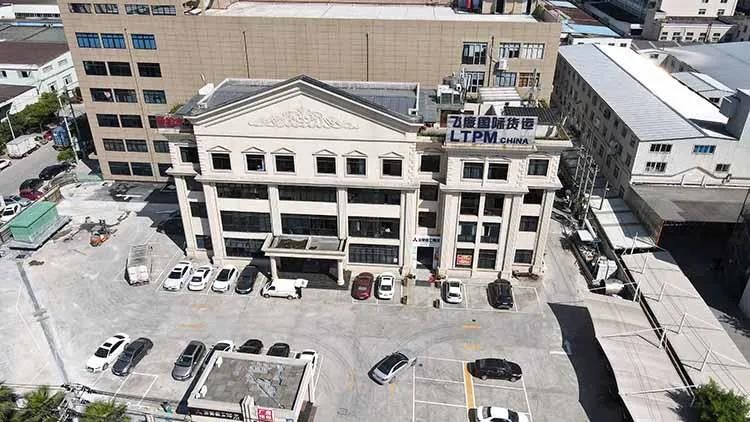

Our CompanyZhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as "A Pharma Machinery Division, For A Better Life", creating a Win-Win Platform for our clients and staff for a better life is our vision.

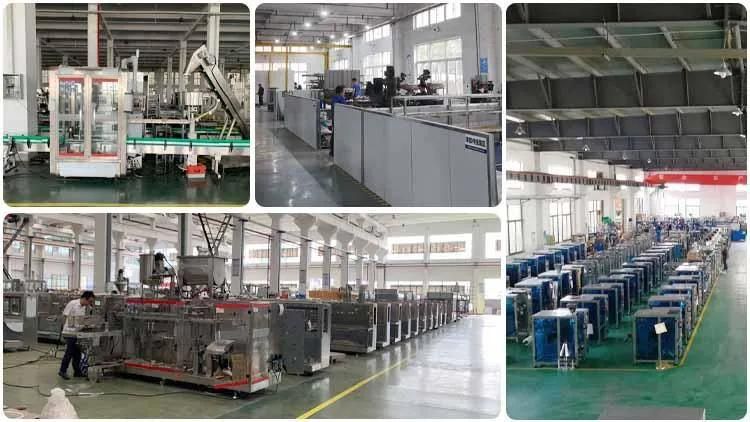

Our Machinery Manufacturing WorkshopImported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business TeamWarm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our CertificatesISO, CE, S
Packing & ShippingAll machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
