Tapered Core Wire Minimum Profile Ptca Balloon Catheter with FDA
Cangzhou Yunfeng Packaging Products Co., Ltd.- Type：Catheter
- Material：Pebax Nylon
- Ethylene Oxide Sterilization：Ethylene Oxide Sterilization
- Quality Guarantee Period：Three Years
- Group：Adult
- Logo Printing：With Logo Printing
Base Info
- Model NO.：KPTCA
- Feature：Disposable
- Certification：CE, ISO13485
- Needle：Without Needle
- Application：Cardiovascular
- Syringe Use：Inflation
- Nominal Burst Pressure：6 ATM
- Rated Burst Pressure：16 ATM
- Balloon Folding：3
- Catheter Lengthcatheter Length：142cm
- Transport Package：Box or Pouch
- Specification：Diameter from 1.5mm to 4.0mm
- Trademark：Kossel, Global
- Origin：Suzhou China
- HS Code：9018390000
- Production Capacity：5000PCS,Month
Description
Tolerance of Compliance:±5%6 (NP)810121416 (RBP)181.51.50 1.531.561.591.621.65 1.682.02.00 2.032.062.092.12 2.15 2.182.52.50 2.542.582.612.642.67 2.702.752.752.792.832.862.89 2.92 2.95 3.03.00 3.043.083.113.14 3.17 3.21 3.53.50 3.553.603.643.69 3.73 3.77 4.04.00 4.054.104.154.20 4.25 4.30 Size Matrix of PTCA Balloon Catheter

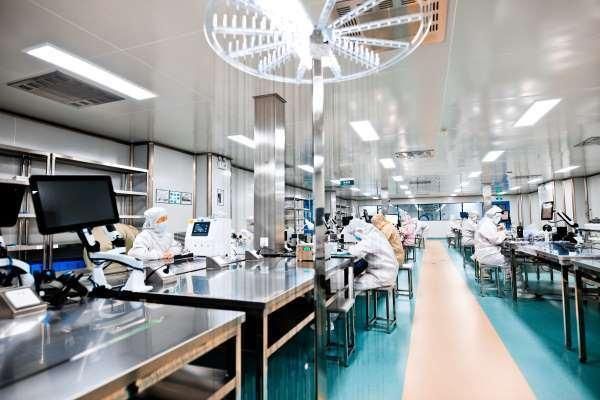

Production Line

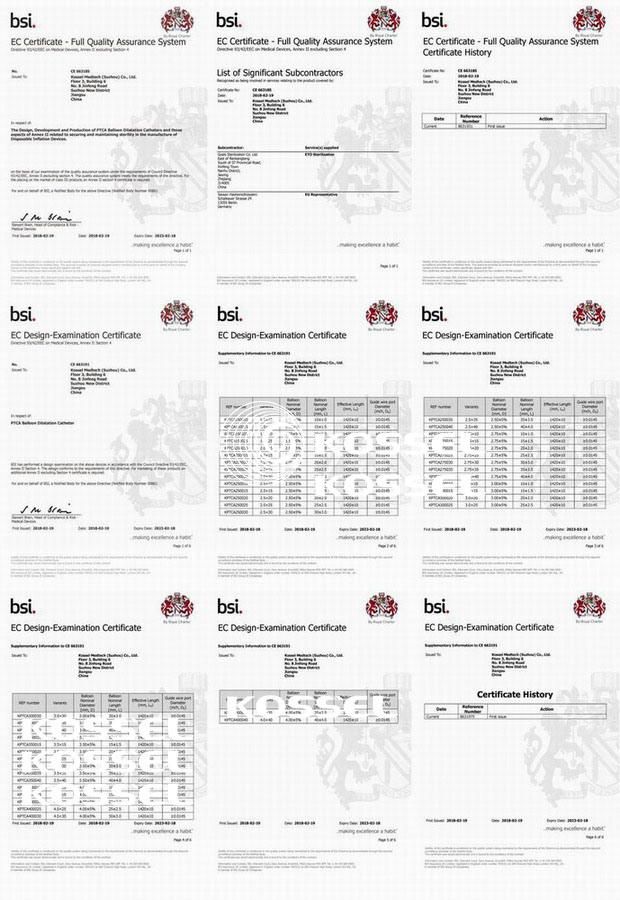

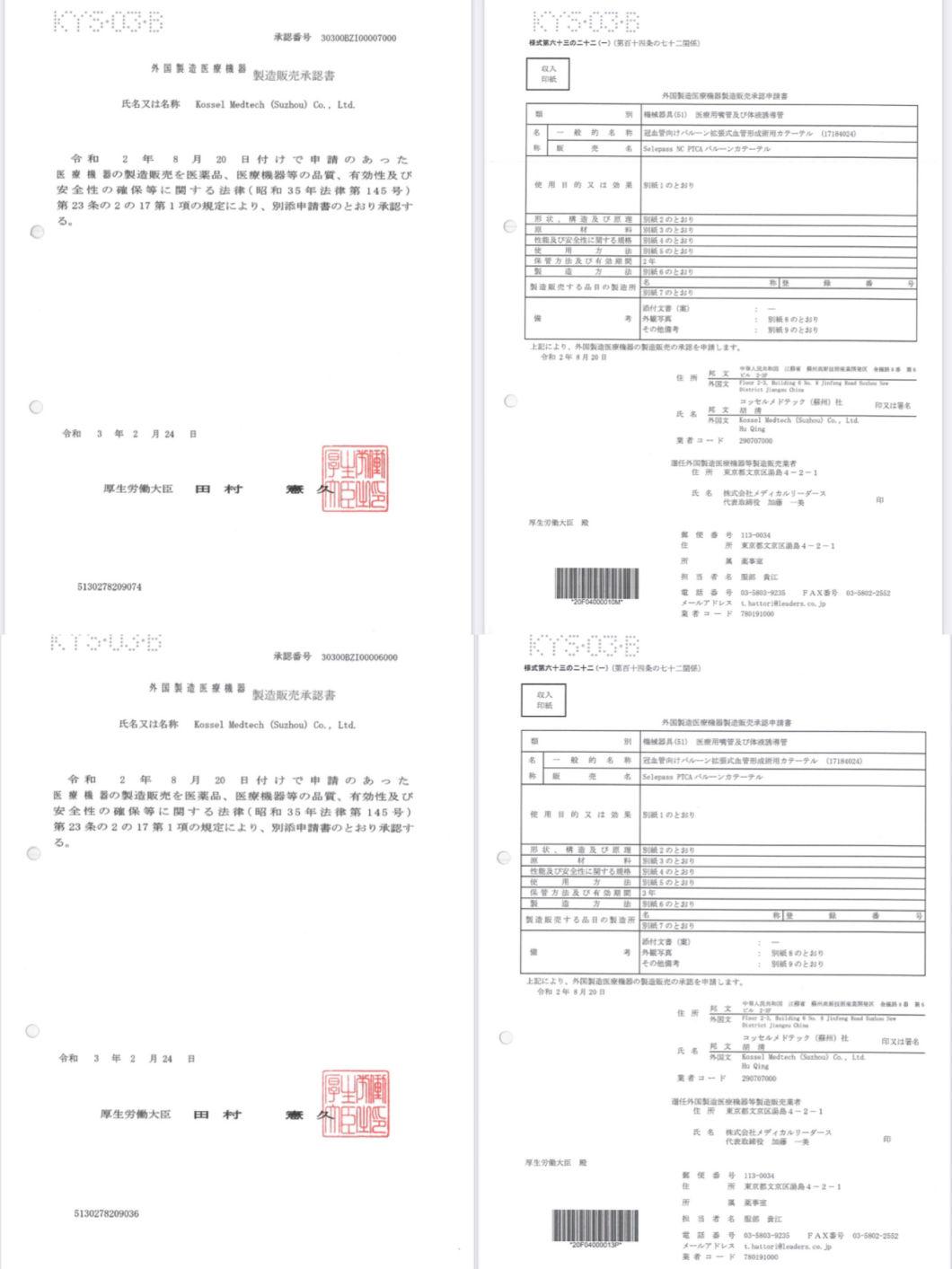

Certificate
| L/mm D/mm | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| 1.5 | √ | √ | √ | √ | - | - | - |
| 2.0 | √ | √ | √ | √ | √ | - | - |
| 2.5 | √ | √ | √ | √ | √ | √ | √ |
| 2.75 | √ | √ | √ | √ | √ | √ | √ |
| 3.0 | √ | √ | √ | √ | √ | √ | √ |
| 3.5 | √ | √ | √ | √ | √ | √ | √ |
| 4.0 | √ | √ | √ | √ | √ | √ | √ |

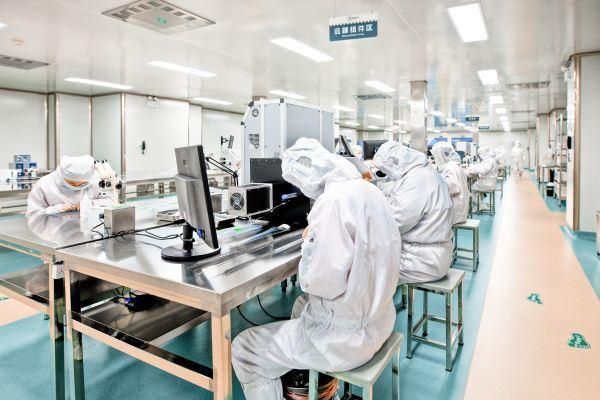

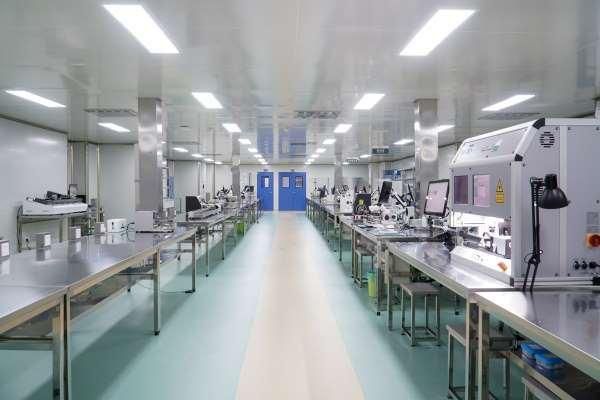

Production Line

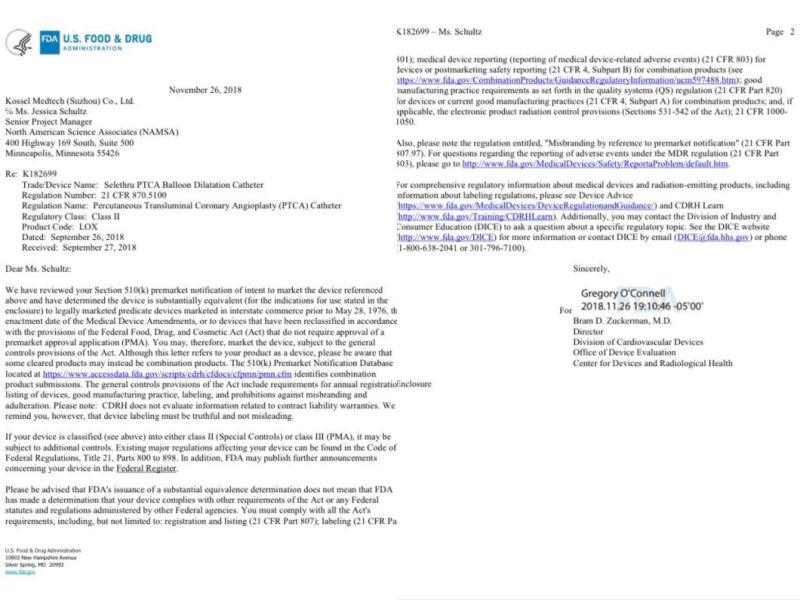

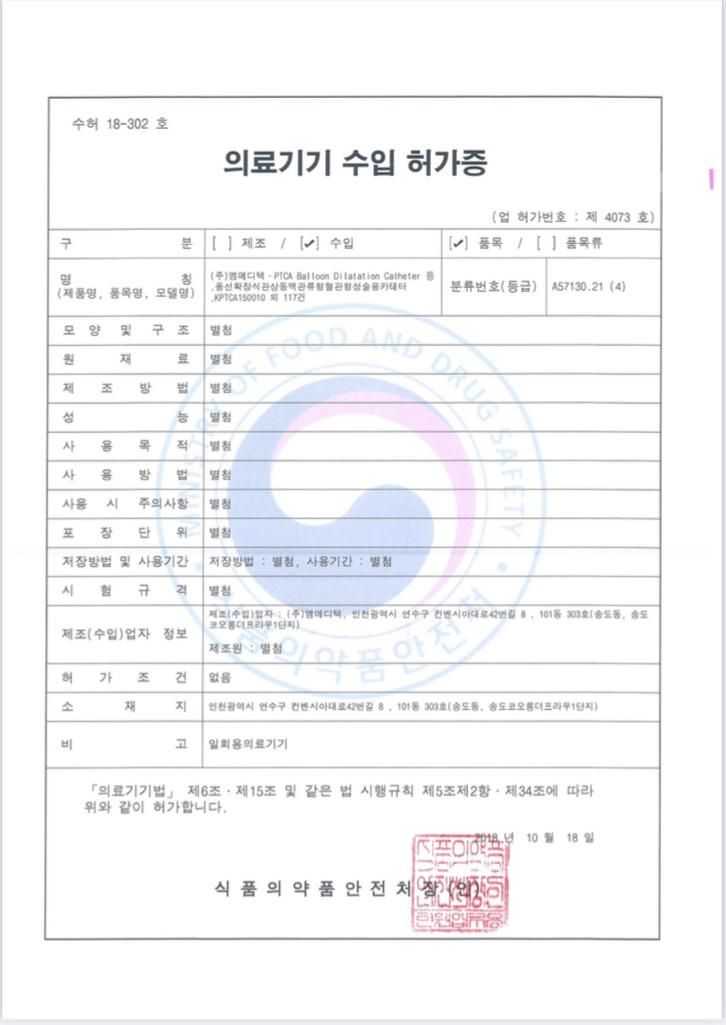

Certificate
