3 Inch Worm Drive 24V Gear Motor

Jinjiang Huawin Chemical Co., Ltd.
  • Application：Motor
  • Type：Gear Reducer
  • Holding Torque：1100n.M
  • Tilting Moment Torque：2200n.M
  • Output Torque：446n.M
  • Output Speed：1rpm

Base Info

  • Model NO.：SVH3-62B-RC-24H3033
  • IP Class：IP65
  • Slef-Locking：Yes
  • Precision：0.1 Degree
  • Mounting Hole：6xm10
  • Corrosion Protection：C3
  • Mounting Specification：100mm
  • Color：Grey
  • Transport Package：Wooden Case with Vci Package
  • Specification：SVH3-62B-RC-24H3033
  • Trademark：Coresun Drive
  • Origin：Changzhou, China
  • HS Code：8483409000
  • Production Capacity：3000PCS,Month

Description

Model

SVH3

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Dual Axis

IP Class

IP65

Output Torque

446N.m

Tilting Moment Torque

1100N.m

Holding Torque

2000N.m

Mounting Bolts

M10

Output Speed

1rpm

Gear Ratio

62:1

Efficiency

40%

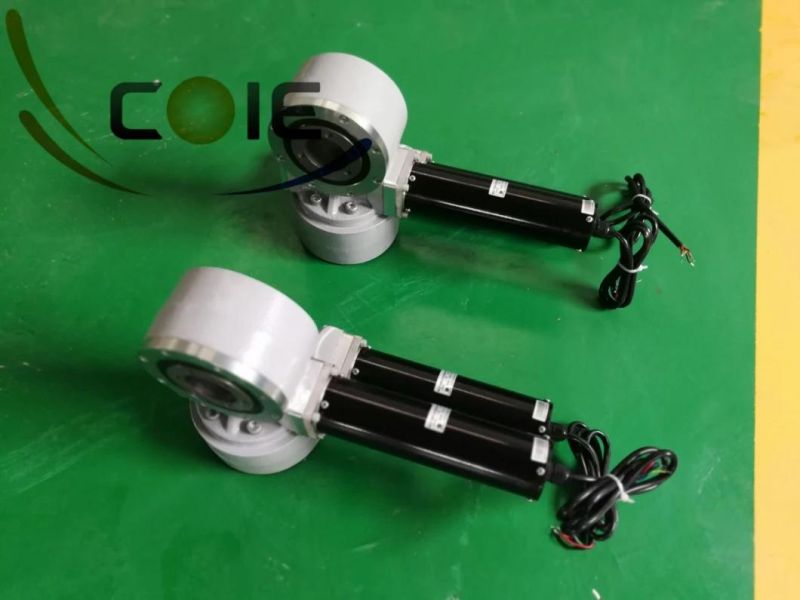

3" SVH3 Slewing Drive Production Photo

3 Inch Worm Drive 24V Gear Motor

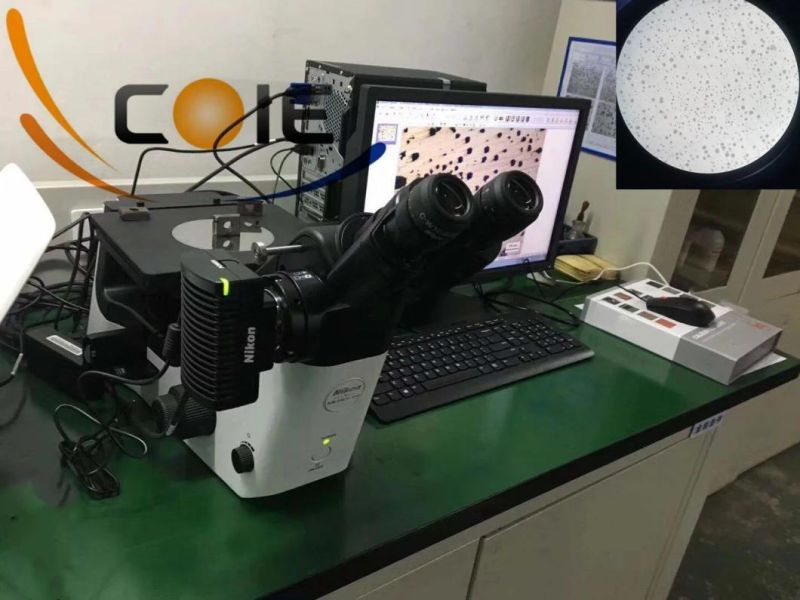

Coresun Drive processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows the standard inspection specification.

3 Inch Worm Drive 24V Gear Motor
3 Inch Worm Drive 24V Gear Motor
