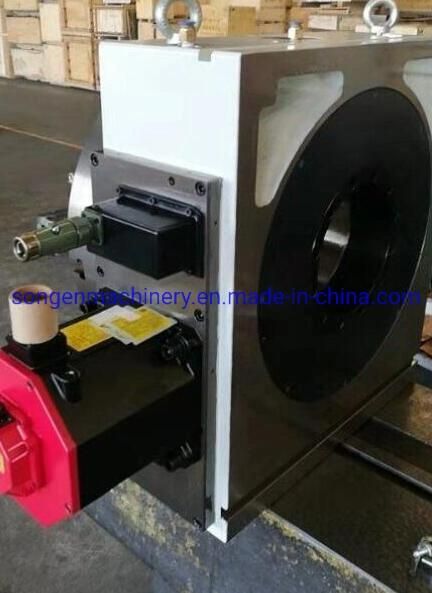

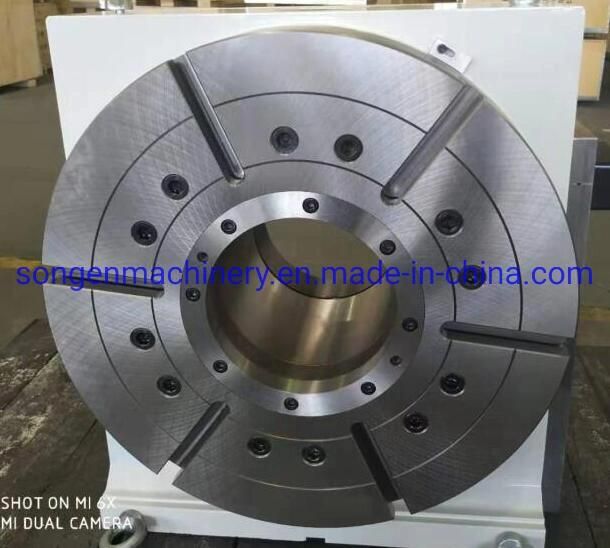

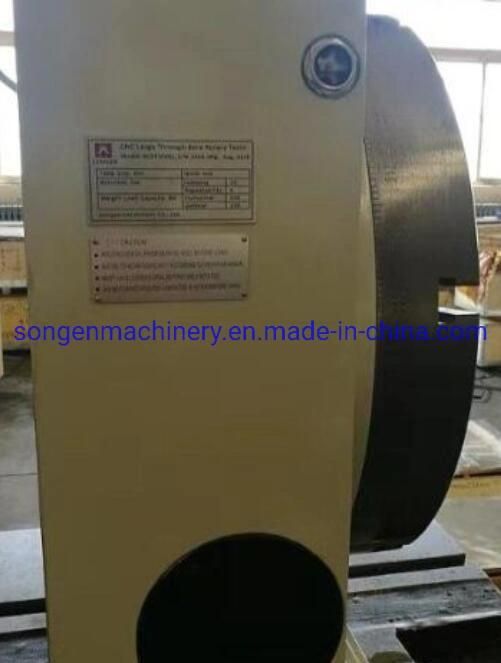

Table Diameters 315, 400mm, Nc Controlled High Speed Horizontal / Vertical Rotary Tables,
Guangzhou Baiyun District Fengxin Plastic Products Factory- Certification：CE, ISO 9001:2008, GS
- Application：Milling Machine, CNC boring mills
- Structure：Horizontal
- Material：Metal
- Type：CNC Controlled
- Table：315, 400mm
Base Info
- Model NO.：NCRT315M, NCRT400M
- Center Height：210, 300mm
- Dividing Accuracy：20"
- Repeatability Accuracy：6"
- Logo Printing：with Logo Printing
- Size：Middle
- Customized：Customized
- Transport Package：Plywood Case
- Specification：Table 315, 400mm
- Trademark：Songen
- Origin：China
- HS Code：84663000
- Production Capacity：1000 Sets,Year
Description
ParameterNCRT315M NCRT400M 1 Turntable diameter, mm 315 400 2 Center height, mm 210 300 3 Total thickness, mm 210 250 4 Center bore diameter, mm 40H6 50H6 5 Locating key size, mm 18 18 6 T-slot size, mm 14 14 7 Worm gear ratio 1:90 1:90 8 Total reduction ratio 1:60 1:50 9 Max. speed, RPM 25 30 10 Table graduation angle per pulse, Deg 0.001 0.001 11 Sevo motor(optional) Output power, KW ≥0.8 ≥0.8 Torque, N.M ≥5 ≥24 12 Dividing accuracy, Sec 25 20 13 Repeatability accuracy, Sec 6 6 14 Clamping torque Oil 1.5MPa 950 2000 Air 0.5MPa 500 700 15 Horizontal loading capacity, Kgf 350 500 16 Vertical loading capacity, Kgf 150 300 17 Max. interia of vertical, Kg.cm.s2 55.4 55.4 18 Max. torque capacity, N.m 700 700 19 Net weight, Kgs 200 325
