Slewing Ring Slewing Ring Bearings Drive with Good Price Dual Axis Ring Single Arm Boat Motor Swivel Driver
Showtime Packing Co., Ltd- Standard or Nonstandard：Standard
- Roller Type：Straight Raceway
- Material：42CrMo
- Type：External Gear
- Holding Torque：48kn.M
- Tilting Moment Torque：67.8kn.M
Base Info
- Model NO.：SF14-2
- Output Torque：4.96kn.M
- Gear Ratio：85:1
- Static Axial Load：555kn.M
- Static Radial Laod：222kn.M
- Inner Dia.：295mm
- Outer Dia.：420mm
- Transport Package：Standard Exporting Package
- Specification：SF14-2
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8482109000
- Production Capacity：6000PCS,Month
Description
Model
SF14
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Material
42CrMo
Output Torque
15.6KN.m
Tilting Moment Torque
67.8KN.m
Holding Torque
48K N.m
Static Axial Rating
555KN
Static Radial Rating
222KN
Dynamic Axial Rating
114KN
Dynamic Radial Rating
100KN
Gear Ratio
85:1
Ourter Dia.
420mm
High quality and high precision rotary bearing belong to slewing bearing. They are axial and radial combined cylindrical roller bearings,including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload,for the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent roller and rings generating collisions which influence bearing accuracy.
Rough and finish turning by CNC lathes. Each process will be checked according to the drawings. Especially for the oil groove, ellipse, triangle, outer circle(ring) allowance, inner circle(ring) allowance, and chamfer must meet the requirements of the drawing. Well prepared for next steps.
Heat treatment will be done according to the types of row material. Row material must ensure the hardness and heat treatment deformation are controlled within the qualified range.
A: Surface: Make sure that the machine is cooled in place, control the surface(plane)
bending and parallel difference(tolerance). Pickling flaw detection for the first product to see whether there is burning damage
or crack.
B: Outer diameter(ring): Control ellipse, triangle and size. When the product height is large, repeated grinding is needed .
C: Inner diameter(ring): Control ellipse, wall thickness and taper. If the product height is large, the vertical difference should meet the requirements.
D: Raceway: Due to the particularity of the product, it is necessary to grind at a fixed distance and ensure that the cooling is in place. The flaw detection of wall thickness for the sample should be qualified not less than 90%.
All procedures should be processed strictly in accordance with the drawings. Special for the temperature difference during tempering; roughness and angle during raceway processing for outer&inner diameter should be 100% inspected.
Production Photo and Application

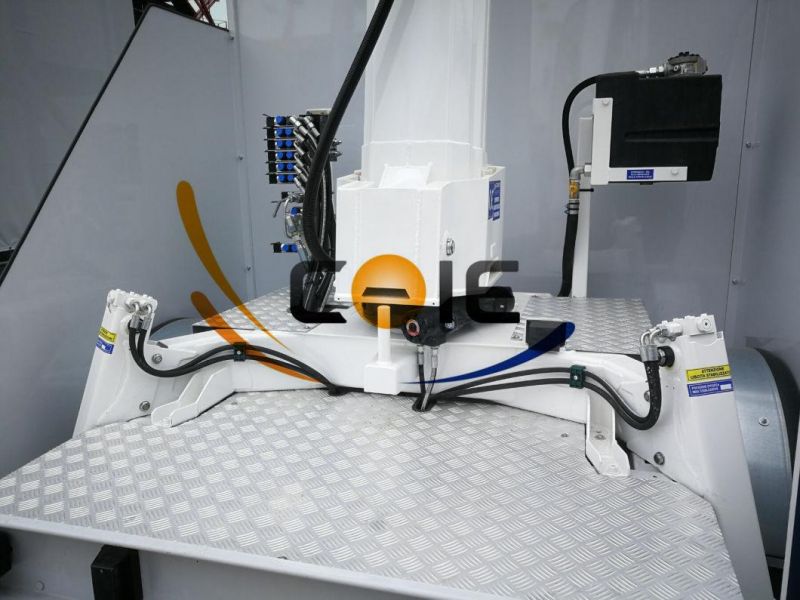

Coresun Drive makes the tilting moment torque testing to ensure the quality and safety factor on slewing bearing bearing.
