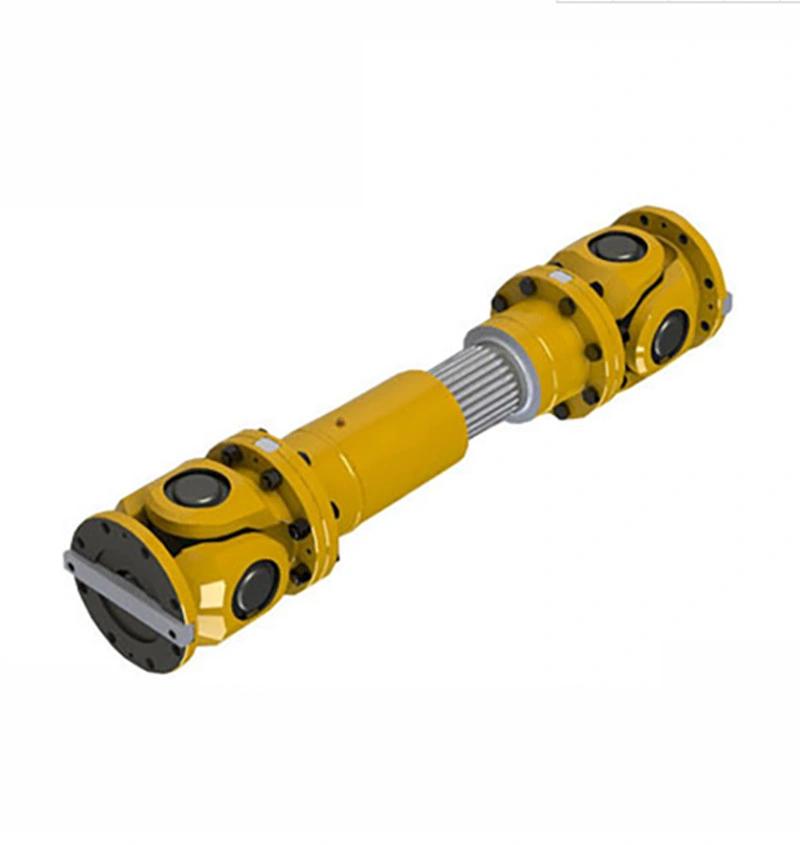

Swz Cross Axle Type Universal Coupling for Steel Rolling Transport Lifting
Jiaxing City Qunbang Hardware Co., Ltd.- Shaft Hole：19-32
- Torque：70-80N.M
Base Info
- Model NO.：SWZ CF type
- Bore Diameter：14mm
- Speed：6000r,M
- Structure：Rigid
- Material：Cast Iron
- Type：Rigid Coupling
- Transport Package：Wooden Case
- Specification：as your requirement
- Trademark：Huading
- Origin：Jingjiang, Jiangsu Province
- HS Code：8483600
- Production Capacity：10000pieces,Year
- Package size per unit product：260.00cm * 250.00cm * 300.00cm
- Gross weight per unit product：55.000kg
Description
Mass
kgLmin Lm D1
D2
H7 D3 k t b
h9 h n-d Lmin Increase
100mm Lmin Increase
100mm SWZ160CF 160 18 9 ≤10 170 1160 120 138 95 135 15 5 20 6 8-13 0.267 0.01 110 5.075 SWZ190CF 190 31.5 16 ≤10 210 1340 135 165 115 155 17 5 25 7 8-15 0.536 0.017 177 7.53 SWZ220CF 220 45 22 ≤10 250 1560 155 190 130 180 20 6 32 9 8-17 1.296 0.030 284 10.12 SWZ260CF 260 80 40 ≤10 290 1770 180 228 155 220 25 6 40 12.5 8-19 3.389 0.051 470 14.73 SWZ300CF 300 125 63 ≤10 290 1930 215 260 180 2550 30 7 40 15 10-23 5.900 0.093 672 18.41 SWZ350CF 350 200 100 ≤10 340 2180 235 310 210 290 35 8 50 16 10-23 13.456 0.185 1102 27.19 SWZ400CF 400 280 140 ≤10 390 2530 270 358 240 320 40 8 70 18 10-25 24.930 0.262 1599 32.38 SWZ425CF 425 355 180 ≤10 390 2640 295 376 255 350 42 10 80 20 16-28 34.760 0.340 1934 38.01 SWZ450CF 450 450 224 ≤10 460 2850 300 400 270 370 44 10 80 20 16-28 47.748 0.461 2377 13.55 SWZ500CF 500 600 315 ≤10 460 3110 340 445 300 400 47 12 90 22.5 16-31 76.361 0.613 3150 50.48 SWZ550CF 550 800 400 ≤10 550 3350 355 492 320 450 50 12 100 22.5 16-31 124.07 0.984 4145 63.22
3.L-Installation length as required
♦Product Show
♦Other Products List
♦Our Company
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
♦Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.
5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
♦FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.
Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Q 9: What's your payment?
A:1) T/T. 2) L/C
♦Contact Us
Web: huadingcoupling.en.made-in-china.com
Add: No.1 Fuyang Road,Chengnan park,Jingjiang City,Jiangsu Province,China
