Double Flanged Bearing Slewing Ring Bearing Turntable Bearing Rotary Bearing Ball Bearing (VLU201094)
Right Team Holding Ltd.- Standard or Nonstandard：Standard
- Feature：Cold-Resistant, Corrosion-Resistant, Heat-Resistant
- Sealing Gland：Sealed On Both Sides
- Rolling-Element Number：Single-Row
- Roller Type：Deep Groove Raceway
- Material：Bearing Steel
Base Info
- Model NO.：VLU201094
- Type：No Gear
- Size：100mm-6600mm
- Structure：Flange Slewing Bearing
- Production Experience：Since Year 1993
- Warranty Period：18 Months
- Delivery Time：15-25 Days
- Gear Type：No Gear
- Brand：Lyhy

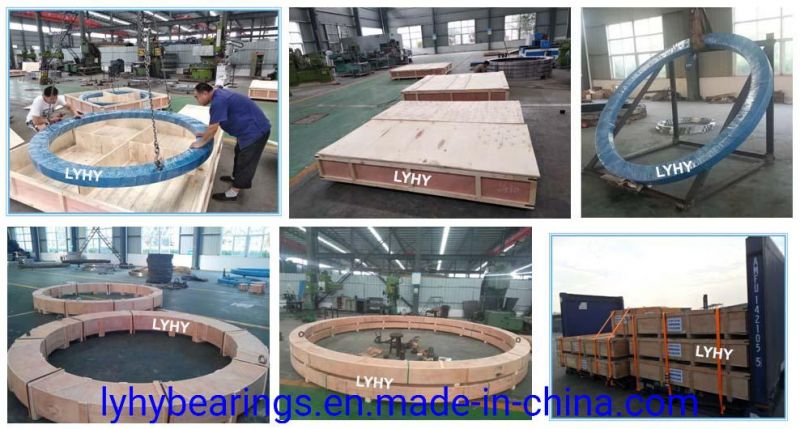

- Transport Package：Wooden Box
- Specification：SGS
- Trademark：LYHY
- Origin：Luoyang, China
- HS Code：848210900
- Production Capacity：100PCS,Month
Description
ModelOverall Dimension Mounting Dimension Structure Dimension Da di H La Li n1 n2 φ1 φ2 h B C Di da mm mm mm
VLU200414ZT 518 304 56 490 332 8 12 φ18 φ18 8.5 47.5 47.5 415.5 412.5 VLU200414 518 304 56 490 332 8 12 18 18 8.5 47.5 47.5 415.5 412.5 VLU200544ZT 648 434 56 620 462 10 14 φ18 φ18 8.5 47.5 47.5 545.5 542.5 VLU200544 648 434 56 620 462 10 14 18 18 8.5 47.5 47.5 545.5 542.5 VLU200644ZT 748 534 56 720 562 12 16 φ18 φ18 8.5 47.5 47.5 645.5 642.5 VLU200644ZT 748 534 56 720 562 12 16 φ18 φ18 8.5 47.5 47.5 645.5 642.5 VLU200644 748 534 56 720 562 12 16 18 18 8.5 47.5 47.5 645.5 642.5 VLU200744ZT 848 634 56 820 662 12 16 φ18 φ18 8.5 47.5 47.5 745.5 742.5 VLU200744 848 634 56 820 662 12 16 18 18 8.5 47.5 47.5 745.5 742.5 VLU200844ZT 948 734 56 920 762 14 18 φ18 φ18 8.5 47.5 47.5 845.5 842.5 VLU200844 948 734 56 920 762 14 18 18 18 8.5 47.5 47.5 845.5 842.5 VLU 300955 1100 805 90 1060 845 30 30 22 22 19 71 71 953 957 VLU200944ZT 1048 834 56 1020 862 16 20 φ18 φ18 8.5 47.5 47.5 945.5 942.5 VLU200944 1048 834 56 1020 862 16 20 18 18 8.5 47.5 47.5 945.5 942.5 VLU301055 1200 905 90 1160 945 30 30 22 22 19 71 71 1053 1057 VLU 201094 1198 984 56 1170 1012 16 20 18 18 8.5 47.5 47.5 1096 1093 VLU 301155 1300 1005 90 1260 1045 36 36 22 22 19 71 71 1153 1157 VLU 301255 1400 1105 90 1360 1145 42 42 22 22 19 71 71 1253 1257 VLU 301355 1500 1205 90 1460 1245 42 42 22 22 19 71 71 1353 1357 VLU 301455 1600 1305 90 1560 1345 48 48 22 22 19 71 71 1453 1457 230.20.0400.013 518 304 56 490 332 8 12 18 18 10.5 45.5 45.5 415.5 412.5 230.20.0400.503 518 304 56 490 332 16 24 18 18 10.5 45.5 45.5 415.5 412.5 230.21.0475.013 517 305 56 490 332 8 12 18 18 10.5 45.5 45.5 415.5 412.5 230.20.0500.013 648 434 56 620 462 10 14 18 18 10.5 45.5 45.5 545.5 542.5 230.20.0500.503 648 434 56 620 462 20 28 18 18 10.5 45.5 45.5 545.5 542.5 230.20.0500.013 648 434 56 620 462 20 28 φ18 φ18 10.5 45.5 45.5 545.5 542.5 230.21.0575.013 647 435 56 620 462 10 14 18 18 10.5 45.5 45.5 545.5 542.5 230.20.0600.013 748 534 56 720 562 12 16 18 18 10.5 45.5 45.5 645.5 642.5 230.20.0600.503 748 534 56 720 562 24 32 18 18 10.5 45.5 45.5 645.5 642.5 230.21.0675.013 747 535 56 720 562 12 16 18 18 10.5 45.5 45.5 645.5 642.5 230.20.0700.013 848 634 56 820 662 12 16 18 18 10.5 45.5 45.5 745.5 742.5 230.20.0700.503 848 634 56 820 662 24 32 18 18 10.5 45.5 45.5 745.5 742.5 230.21.0775.013 847 635 56 820 662 12 16 18 18 10.5 45.5 45.5 745.5 742.5 230.20.0800.013 948 734 56 920 762 14 18 18 18 10.5 45.5 45.5 845.5 842.5 230.20.0800.503 948 734 56 920 762 28 36 18 18 10.5 45.5 45.5 845.5 842.5 230.21.0875.013 947 735 56 920 762 14 18 18 18 10.5 45.5 45.5 845.5 842.5 280.30.0900.013 1100 805 90 1060 845 30 30 22 22 19 71 71 953.5 956.5 280.30.0975.013 1098 807 90 1060 845 30 30 22 22 19 71 71 953.5 956.5 230.20.0900.013 1048 834 56 1020 862 16 20 18 18 10.5 45.5 45.5 945.5 942.5 230.20.0900.503 1048 834 56 1020 862 32 40 18 18 10.5 45.5 45.5 945.5 942.5 230.21.0975.013 1047 835 56 1020 862 16 20 18 18 10.5 45.5 45.5 945.5 942.5 280.30.1000.013 1200 905 90 1160 945 30 30 22 22 19 71 71 1054 1057 280.30.1075.013 1198 907 90 1160 945 30 30 22 22 19 71 71 1054 1057 230.20.1000.013 1198 984 56 1170 1012 16 20 18 18 10.5 45.5 45.5 1096 1093 230.20.1000.503 1198 984 56 1170 1012 32 40 18 18 10.5 45.5 45.5 1096 1093 230.21.1075.013 1197 985 56 1170 1012 16 20 18 18 10.5 45.5 45.5 1096 1093 280.30.1100.013 1300 1005 90 1260 1045 36 36 22 22 19 71 71 1154 1157 280.30.1175.013 1298 1007 90 1260 1045 36 36 22 22 19 71 71 1154 1157 280.30.1200.013 1400 1105 90 1360 1145 42 42 22 22 19 71 71 1254 1257 280.30.1275.013 1398 1107 90 1360 1145 42 42 22 22 19 71 71 1254 1257 280.30.1300.013 1500 1205 90 1460 1245 42 42 22 22 19 71 71 1354 1357 280.30.1375.013 1498 1207 90 1460 1245 42 42 22 22 19 71 71 1354 1357 280.30.1400.013 1600 1305 90 1560 1345 48 48 22 22 19 71 71 1454 1457 280.30.1400.013 1600 1305 90 1560 1345 48 48 φ22 φ22 19 71 71 1457 1454 280.30.1475.013 1598 1307 90 1560 1345 48 48 22 22 19 71 71 1454 1457 SD.505.20.00.C 518 304 56 490 332 8 12 18 φ18 10 46 46 415.5 412.5 SD.650.20.00.C 648 434 56 620 462 10 14 18 φ18 10 46 46 545.5 542.5 SD.650.20.00.C 648 434 56 620 462 10 14 φ18 φ18 10 46 46 545.5 542.5 SD.750.20.00.C 748 534 56 720 562 12 16 18 φ18 10 46 46 645.5 642.5 SD.750.20.00.C 748 534 56 720 562 12 16 φ18 φ18 10 46 46 645.5 642.5 SD.750.20.00.C 746 536 56 720 562 12 16 φ18 φ18 10 46 46 645.5 642.5 SD.950.20.00.C 948 734 56 920 762 14 18 18 φ18 10 46 46 845.5 842.5 SD.950.20.00.C 946 736 56 920 762 14 18 φ18 φ18 10 46 46 845.5 842.5 SD.1100.32.00.C 1100 805 90 1060 845 30 30 φ22 φ22 19 71 71 955 955 SD.1050.20.00.C 1048 834 56 1020 862 16 20 18 φ18 10 46 46 945.5 942.5 SD.1200.32.00.C 1200 905 90 1160 945 30 30 φ22 φ22 19 71 71 1055 1055 SD.1200.20.00.C 1198 984 56 1170 1012 16 20 18 φ18 10 46 46 1096 1093 SD.1200.20.00.C 1198 984 56 1170 1012 16 20 φ18 φ18 10 46 46 1096 1093 SD.1300.32.00.C 1300 1005 90 1260 1045 36 36 φ22 φ22 19 71 71 1155 1155 SD.1400.32.00.C 1400 1105 90 1360 1145 42 42 φ22 φ22 19 71 71 1255 1255 SD.1500.32.00.C 1500 1205 90 1460 1245 42 42 φ22 φ22 19 71 71 1355 1355 SD.1600.32.00.C 1600 1305 90 1560 1345 48 48 φ22 φ22 19 71 71 1455 1455
