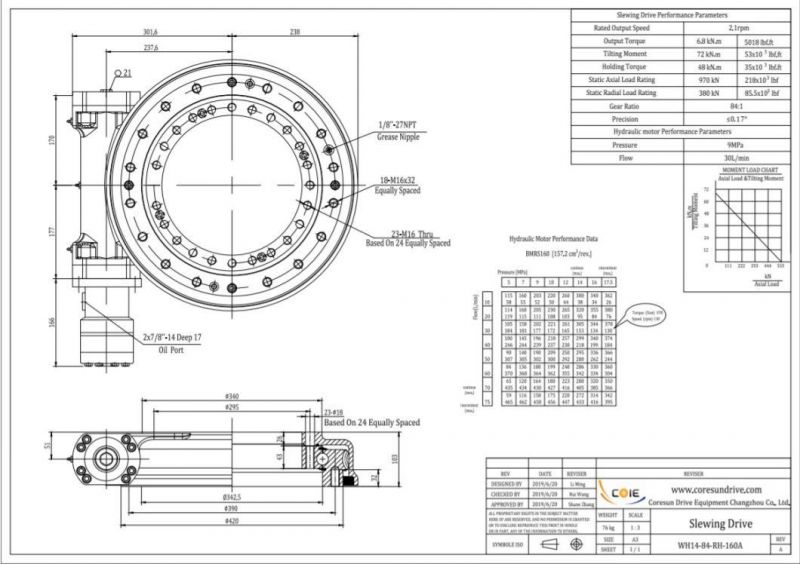

• Model NO.：WH14-84-RH-160A
• IP Class：IP65
• Static Axial Load：970kn
• Static Radial Laod：380kn
• Outer Dia.M：390mm
• Inner Dia.M：295mm
• Self-Locking：Yes
• Transport Package：Standard Wooden Case
• Specification：WH14-84-RH-160A
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. WH14-84-RH-160A IP Class IP65 Static Axial Load 970kn Static Radial Laod 380kn Outer Dia.M 390mm Inner Dia.M 295mm Self-Locking Yes Transport Package Standard Wooden Case Specification WH14-84-RH-160A Trademark Coresun Drive Origin Changzhou HS Code 8483409000 Production Capacity 3000PCS/Month

Product Description

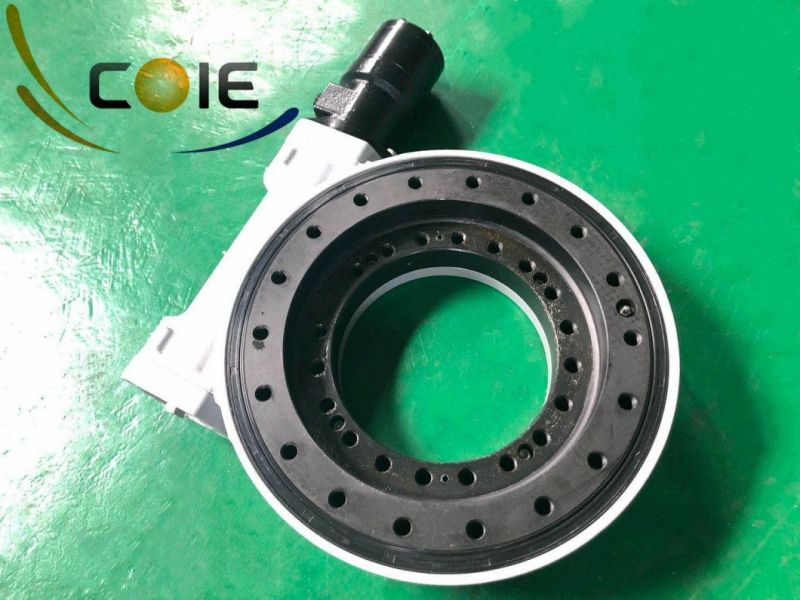

Hot product WH14 heavy load worm drive slewing gear reduction for mounted truck crane drilling rig.

Enclosed slewing drives are the most popular model of Titanhorse' slewing drives and can help power movement in machinery such as wind turbines, military equipment, digger derricks, solar trackers, medical equipment, forestry, waste management and industrial positioners.  The housing fully encapsulates all the drive components such as the double enveloping worm gearset, planetary gearing, and turntable bearing, such that they have total protection from the elements.  The  Enclosed Drive is also advantageous if you're mounting inside so as not to see the parts in motion, or to avoid injuring workers working in close proximity.

Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox.  The fully-enclosed comes with Titahorse' patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each size is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1.

The title of Slewing drive is no uniform, it also called: slewing gear, rotary drive, rotary drive axle,rotary drive vice ,slew drive, slewing gear, rotary drive unit. At present the majority of such devices: the Slewing drive.

Coresun Slewing drive movement can reduce power consumption, since the security role. In addition to the field of use in the daily solar power systems are usually used for Special vehicle steering Taiwan, heavy-duty flat-panel truck, container cranes, truck mounted crane, automobile crane and aerial vehicles, cranes, gantry cranes, small wind power stations, space communications, satellite receiver, etc. . The Slewing drive in the solar photovoltaic industry, the general configuration DC planetary reduction motor or AC geared motors; main configuration of the hydraulic motor as a power-driven construction machinery.

Coresun Slewing drive worm drive principle of the large transmission ratio of the deceleration device to transmit motion and power between the two axes staggered in space. The Slewing drive transmission is usually the case of the main components of the worm and wheel bearings, shell, and the power source.

As the core component of turntable bearings, can withstand the axial load, radial load and overturning moment. JRDB Slewing drive and rotary products, compared with the ease of installation, ease of maintenance, Installation space savings advantages to a greater extent.

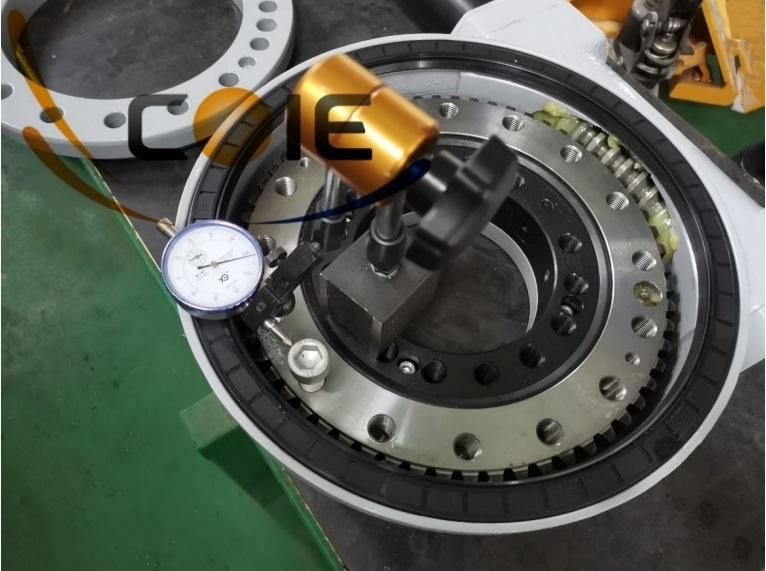

Coresun Drive Slewing Bearing Production Photo

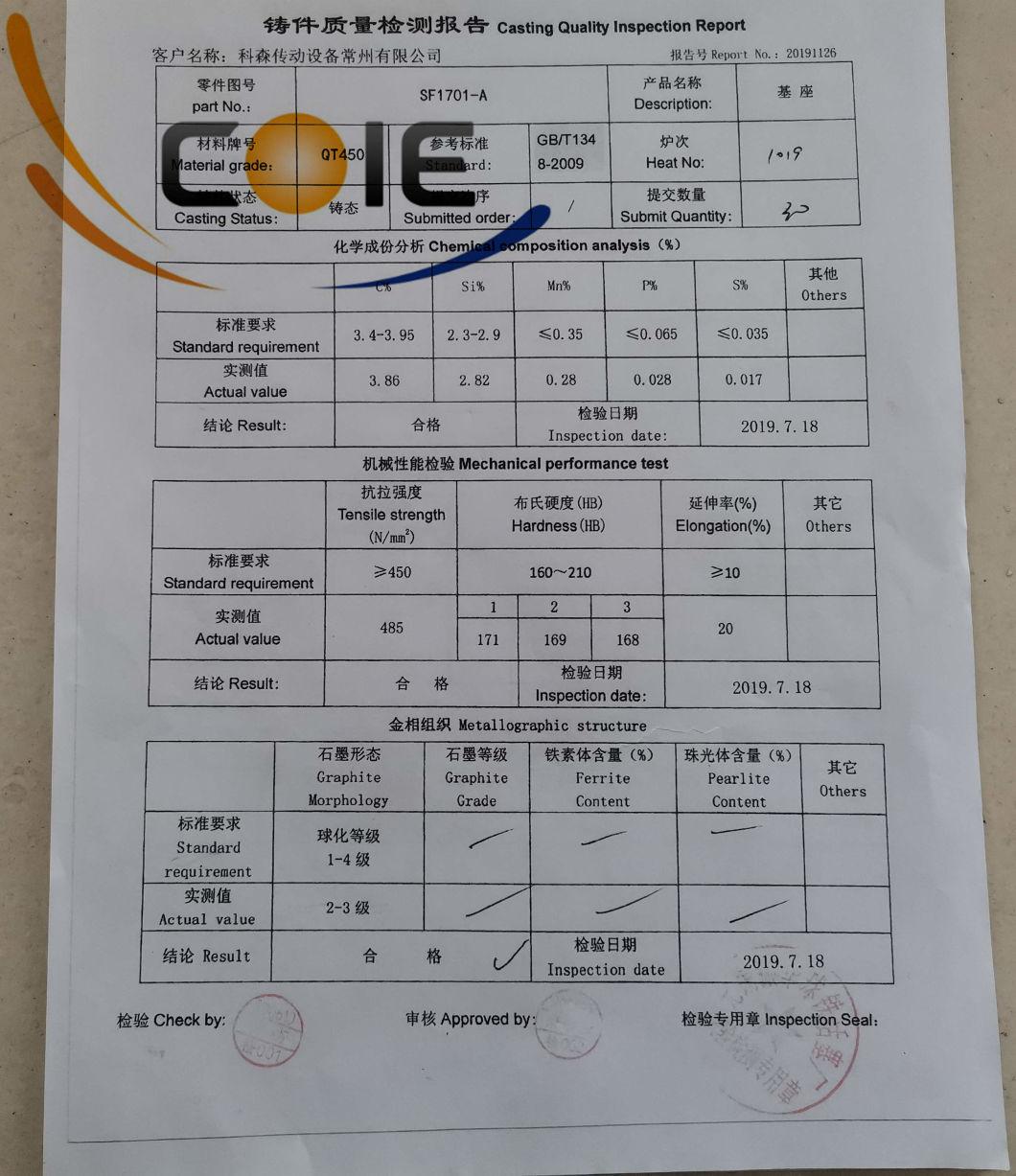

Coresun Drive testing reports for SC products
