Korea Vatech Soft Intraoral Dental X Ray Sensor Comfortable Digital Densor
NINGBO SONGROCK TECH. CO., LTD.- Certification：ISO, CE
- Type：Imaging System
- Material：PVC
- Power：5V
- Dimensions (W * L * T)：40.8 X 30.6 X 5.5mm
- Active Pixel Array：23.98 X 33.00 mm
Base Info
- Model NO.：EZ soft
- Operation System：Windows XP,Vista, W7, 8, 10
- High Resolution Mode：14.8um
- Size：1.5
- Transport Package：Foam, Original Colorful Box, Carton.
- Specification：Package weight: 1.2kg
- Trademark：Vatech Ez
- Origin：China
- HS Code：90184990
- Production Capacity：1000
Description
Basic Info.
Model NO. EZ soft Operation System Windows XP,Vista, W7, 8, 10 High Resolution Mode 14.8um Size 1.5 Transport Package Foam, Original Colorful Box, Carton. Specification Package weight: 1.2kg Trademark Vatech Ez Origin China HS Code 90184990 Production Capacity 1000Product Description
Technical Data| High Resolution Mode | 0.0148 mm |
| Normal Resolution Mode | 0.0296 mm |
| USB Cable length | Under 3 m |
| Dimensions (W * L * T) | Size 1.5: 1.60 x 1.20 x 0.20 inch (40.8 x 30.6 x 5.5mm) |
| Active Pixel Array | Size 1.5: 1620 x 2230 pixels (23.98 x 33.00 mm) |
| Normal Resolution Mode | 810 x 1115 pixels |
| High Resolution Mode | 33.78 lp/mm (theoretical) |
| Normal Resolution Mode | 16.89 lp/mm (theoretical) |
| Dynamic Range: | 12bit |
Features

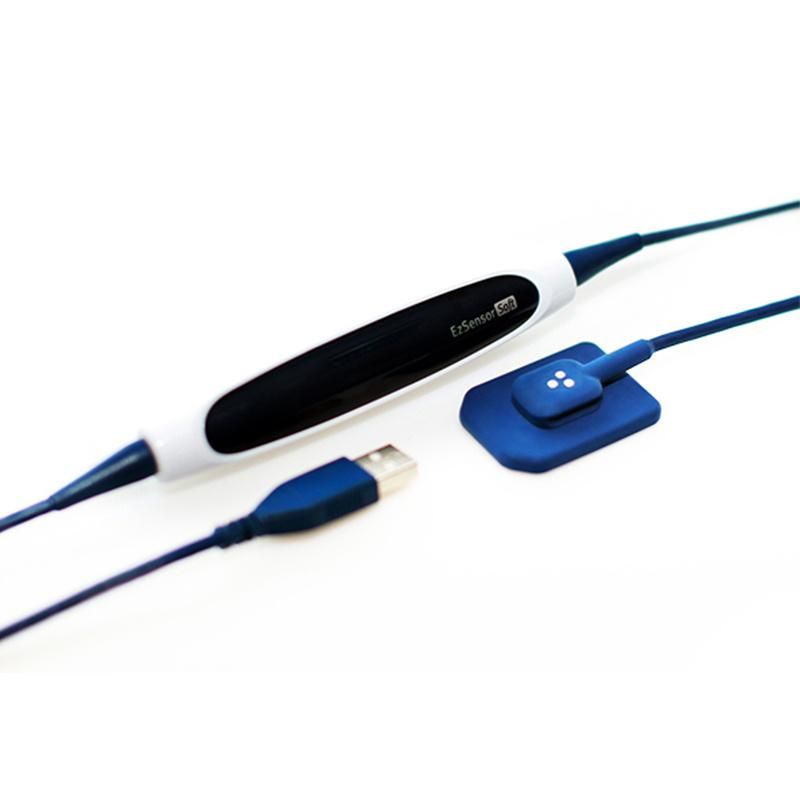

Easy diagnosis and great experience, EZ sensor
EzSensor provides consistently high resolution and clear images for accurate diagnosis and treatment planning with
various size.
★Various Sizes (1.0 / 1.5 / 2.0)
Select the right sized sensor from the three size options to increase patient comfort.
MODE Size 1.0 Size 1.5 Size 2.0
Active Area 1.0 size: 30X20 mm , 1.5 size: 33X24mm,2.0 size: 36X26 mm
Purpose Narrow Arch (child, Female) Normal (female, male) Large or wide arch

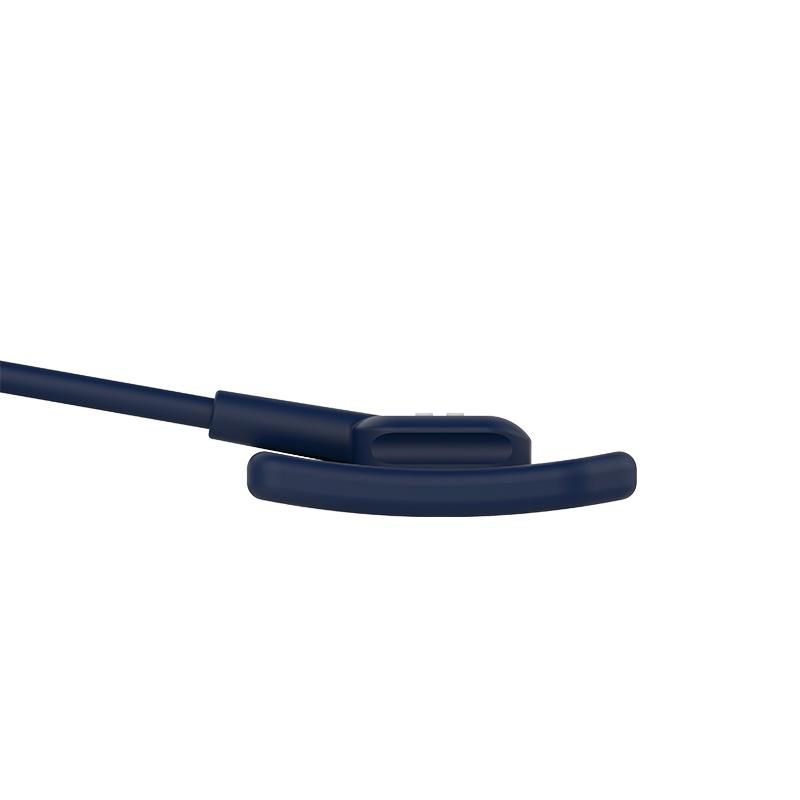

★Ergonomic Design : Slim and rounded corner exterior
The EzSensor has a slim design with rounded corners for easy positioning
to ensure patient comfort.

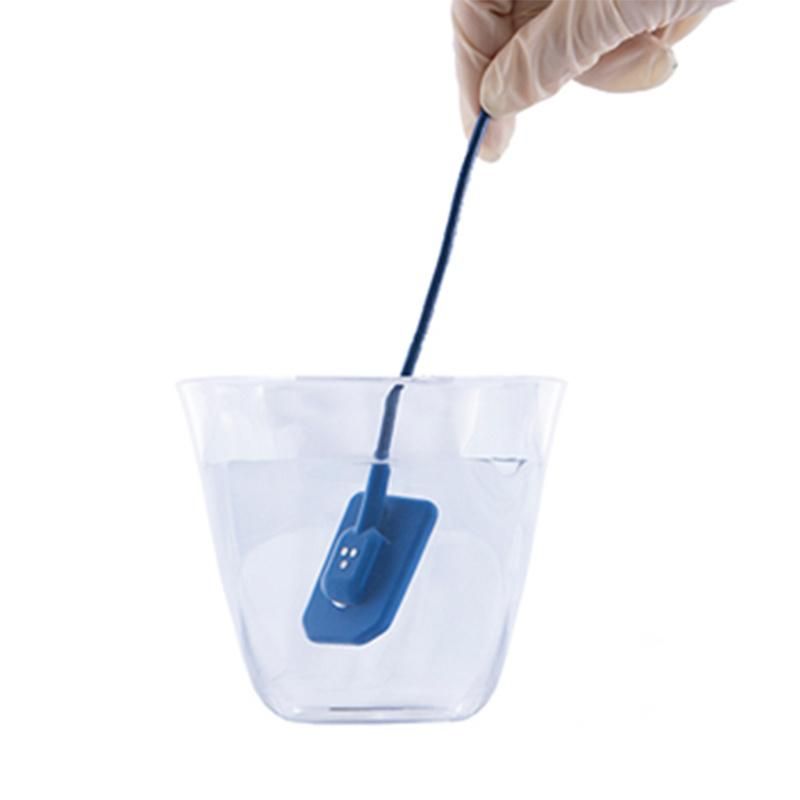

★Durability
Unique design makes itself extremely durable.
The exterior is made of rugged aluminum and the
interior is esigned to absorb the external shock.
Furthermore, a reinforced, flexible cable attachment
protects the sensor from excessive bending.
Operating conditions:
Recommended Server PC specifications
★Workstation
★Operating System : Window 2000 server or higher
★RAM: 4GB or higher
★HDD: 1TB or higher
Recommended Client PC specifications
★CPU : Core DUO CPU 1.8GHz or Higher
★Main Memory : 2GB or Higher
★Graphic Card : 512MB or Higher
★HDD : 2GB free space
★Display : 1280*1024*32bpp
★Operating System:Windows 32/64bit: XP (SP2 or higher), Vista (SP1 or higher), 7, 8, 10
