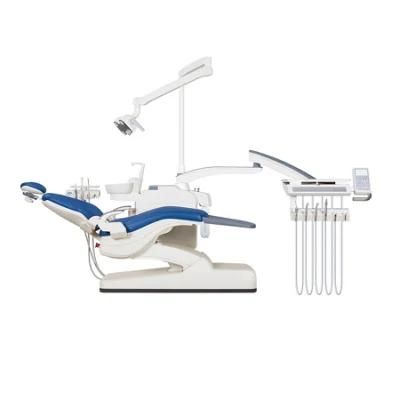

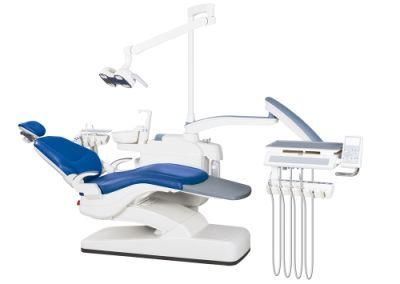

China Cheapest Standard Complete Dental Chair with Luxury LED Light
Xuzhou Jiaen Technology Development Co., Ltd.- Condition：New
- Certification：ISO, CE
- Application：Adult
- Style：Multifunctional, Luxury, Simple
- Power Source：Electricity
- Cushion：PU
Base Info
- Model NO.：ADS-D3
- Lamp：Luxury LED
- Holder：Big
- Unit Box：Normal
- Foot Pedal：6 in 1
- Tray：Big
- Color：Options
- MOQ：1 Unit
- Spittoon：Removable Ceramic Spittoon
- Air Pressure：400-600kpa
- Water Pressure：200-400kpa
- Bearing Capacity of The Chair：About 135 Kg
- Weight：185kgs
- 20gp：26 Units
- 40hq：63 Units
- Transport Package：Wooden Case
- Specification：130*100*109cm
- Origin：China
- HS Code：9018491000
- Production Capacity：2000 Units,Month
Description
Parameters:
Environment temperature: 5°C to 40°C
Related humidity: ≤ 80%
Power supply :~110-220V ± 10%; 50Hz ± 10%
Air pressure: 400-600kPa
Water pressure: 200-400kPa
Bearing capacity of the chair: ≤ 135 KG
Options:
Imported 2/4-hole high speed handpiece/ made in China
Imported 2/4-hole low speed handpiece/ made in China
Ultrasonic scaler
Intra Oral Camera with monitor
Built in/ built-out LED Curing light
Oil-free air compressor
More detail picture for you reference;
Show us:
Dental clinic piping requirements
1.Water supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface (PPR Fusion Tube is
recommended, 4 points internal and external tooth straight through valve)
2.Air supply pipe: white PPR Fusion Tube, reserved 4 points copper internal tooth interface(PPR Fusion Tube is recommended,
4 points internal and external tooth straight through valve )
3.Drainage pipe: White PVC drain pipe, main pipe 17mm,branch pipe φ50mm.
4.VGA video screen and USB data cable: white PVC threading pipe φ 32mm, leaving a wire to be threaded in the future;
5.Negative pressure pipe: blue UPVC water supply pipe, outer pipe outer diameter φ50mm,branch pipe outer diameter φ 32mm, access to the outer diameter of the dental chair tube25 25mm.
6.Negative pressure signal line: white PVC threading tube, 4 points φ20mm) sleeve2*1mm2 line;
7.Power cord: white PVC threading tube, 4 points (φ 20mm) sleeve 3*1.5mm2 line; Note: Straight angle joints
cannot be used at the drain and negative pressure pump connections, and 45 degree joints are used.
The water purifier water supply and the air compressor inlet air must be reserved for the switch.
