• Model NO.：P3.9-7.8
• Pixel Density：10000 dot , m²
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Shopping Guide
• Certification：CE, RoHS, CCC
• Brightness：More Than 6000CD
• Module Size：500mm X125mm
• Driver IC：Mbi5024
• View Angle：140 Degree
• Weight：15kg
• Transport Package：Wooden Case or Flight Case
• Specification：1000mm x 2000mm
• Trademark：Noveled
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：3000 Piece , Month

No.LEDType1LED configuration 1R1PG1PB2LED encapsulation SMD 1921LED specifications1Pixel pitch3.9-7.8 mm2Scanning1/2 constant current3Driving ICMBI 50244Module resolution64dots×16dots5Module pixel   1024dots6Module Size(width×height)480×160mm7led panel size(width×height)960×1920mm8Cabinet resolution96dots×192dots9Pixel density  10000dots/m210Cabinet materialAluminum Extrusions11Brightness6000~7000cd/sqm 12Viewing AngleHorizontal 140°,Vertical140°13Viewing distance≥10M14Gray Scale16bit15Display Color281 Trillion16Refresh Frequency≥1920Hz17Frame Frequency60fps18Input voltageAC220V/50Hz or AC110V/60Hz19Power Consumption(Max/Ave)1600/400W/sqm 20Weight15KG/sqm 21MTBF>10,000 hours22Life Span≥100,000 hours23Transparency rate70%24Operating Temperature-20ºC~60ºC25Operating Humidity10%~90%

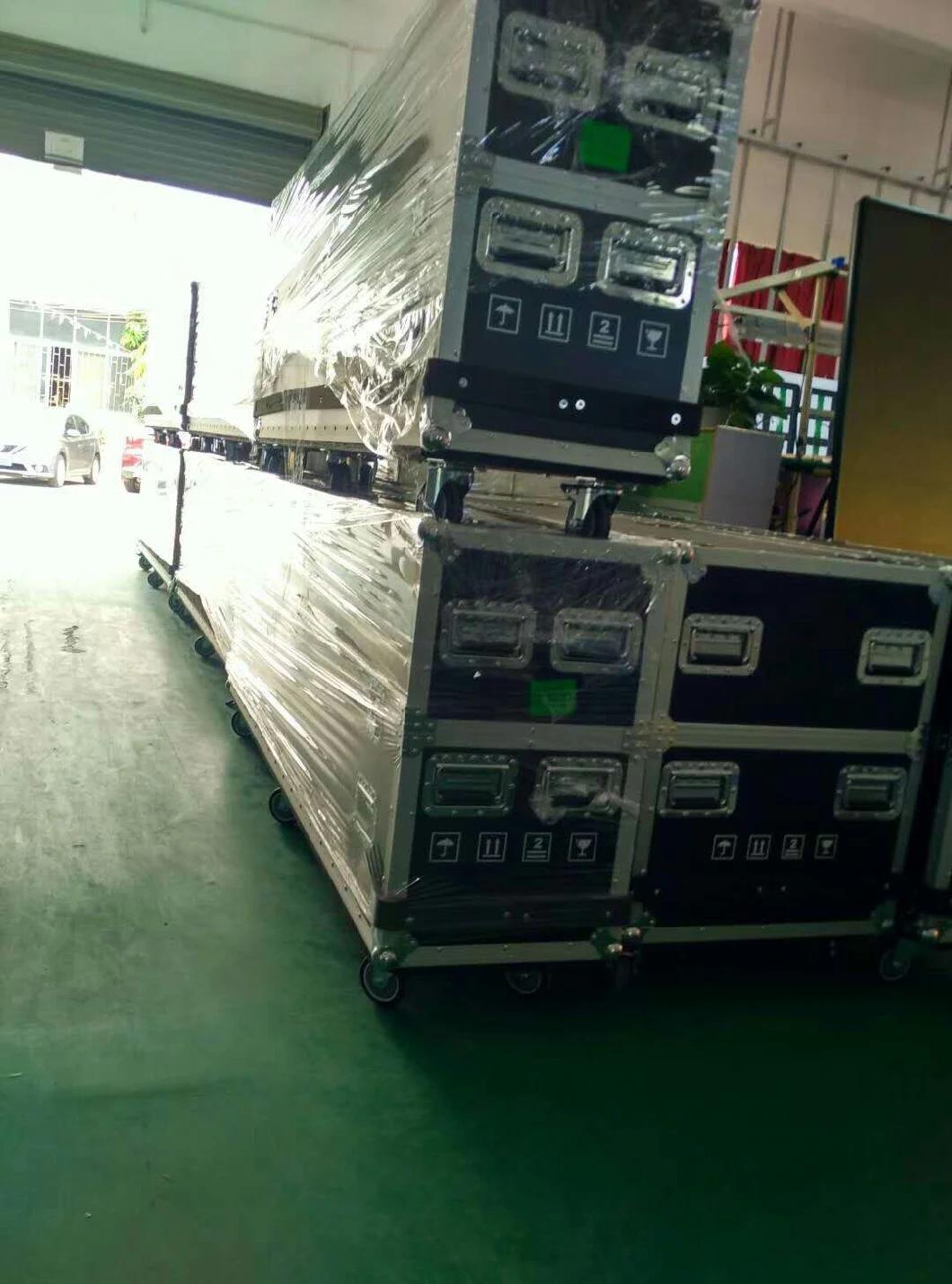

Packing and transportation

Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
