• Model NO.：SNSTY-225
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product/Packing Size：1150*330*140mm,1190*400*220mm
• Product/Packing Weight：18kg,19kg
• Carton Size：1190*400*220mm
• Qty/CTN：1 Sets,CTN
• Gw for Carton：19kg
• Loading Qty for 20gp：270PCS
• Loading Qty for 40gp：560PCS
• Product Name：25W All in One Solar Light for Street and Garden
• Transport Package：Strong Carton
• Specification：25W LED 50W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-225 Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product/Packing Size 1150*330*140mm/1190*400*220mm Product/Packing Weight 18kg/19kg Carton Size 1190*400*220mm Qty/CTN 1 Sets/CTN Gw for Carton 19kg Loading Qty for 20gp 270PCS Loading Qty for 40gp 560PCS Product Name 25W All in One Solar Light for Street and Garden Transport Package Strong Carton Specification 25W LED 50W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

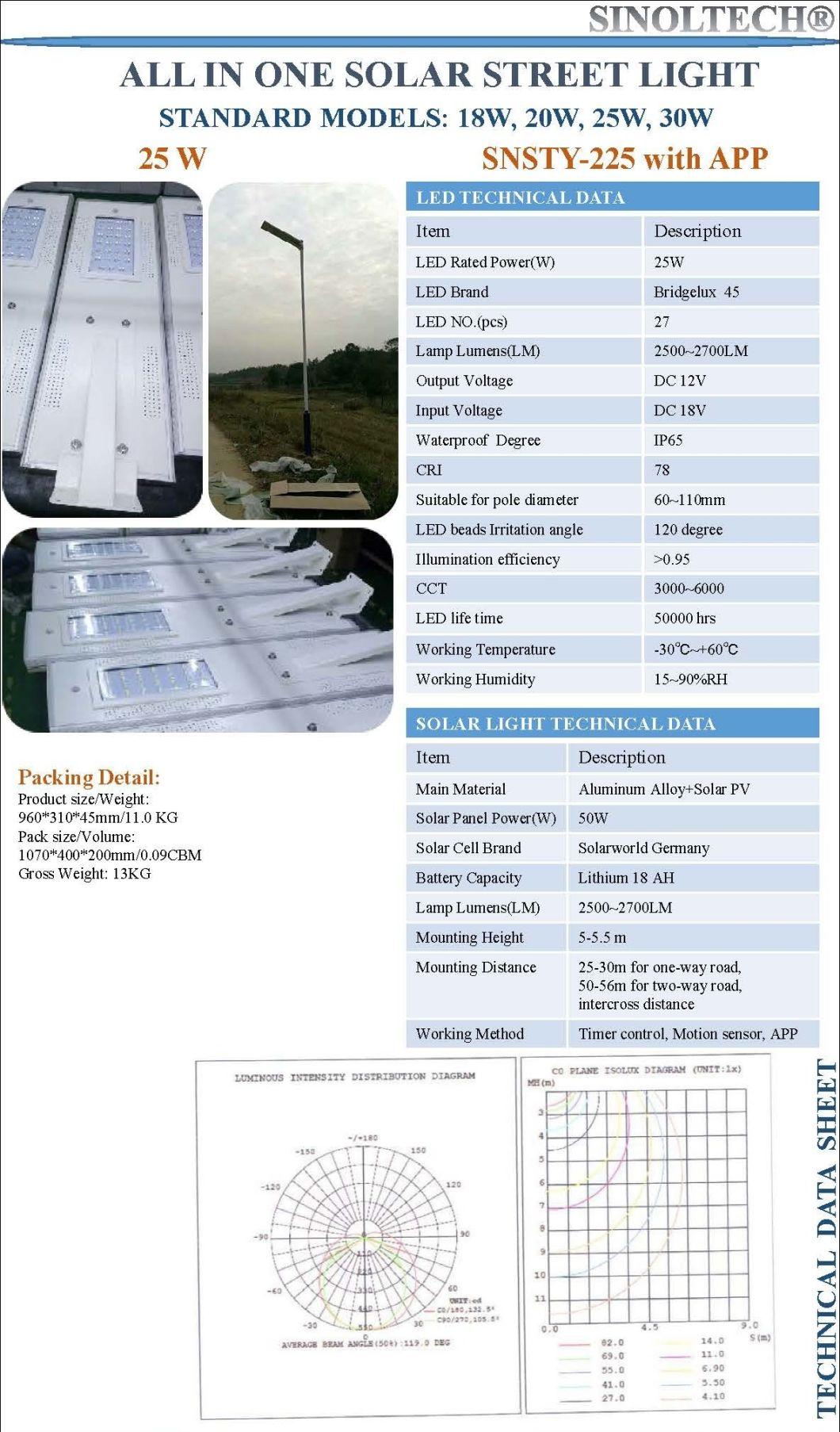

25W All in One Solar Light for Street lighting

Product Detail:
LED power: 25W
Solar panel: 50W, Cell brand: Solarworld
Lithium Battery: 18AH Lithium
Lumen: 2500~2700LM
Mounting height: 5-5.5m
Mounting distance: 25~30m for one-way road,
50-56m for two-way road, intercross distanc
Working Method: Timer control, Motion sensor, APP
Waterproof degree: IP65
LED Beads Qty: 27; LED Brand: Bridgelux 45
CCT: 3000~6000K
Working Temp.: -30~+60C
Working Humidity: 15~90%RH
Packing Detail:
Product size/Weight: 960*310*45mm/11.0 KG
Pack size/Volume: 1070*400*200mm/0.09CBM
Gross Weight: 13KG

Our integrated solar street light which integrates the green-energy parts solar Panel, LED lamp and the Li-Fe battery into a single product, is with human Intelligence induction system to gain the solution of low-energy, long-time,
High-luminance and free maintenance. And the same time, it's convenient in the Shipment and installation.

Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control, and Provide light for the darkness area, the human intelligence induction system can
Save the energy when the lighting is not necessary.

Solar Panel	Max Power	18V50W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V 25W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	2500-2750LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 10 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	5-6m
Space between light	range(m)	18-20m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		2 years

Specification Data:
