Nmrv110 Cast Casing Iron Worm Gearbox Speed Reducer
QINGDAO GUARDX IMP & EXP CO., LTD.- Application：Industry
- Hardness：Hardened
- Type：Worm and Wormwheel
- Ratio Power：3.0kw
- Input Speed：1400rpm
- Speed Ratio：7.5
Base Info
- Model NO.：NMRV110
- Output Speed：186rpm
- Output Torque：138n.M
- Color：Blue
- Size：360*340*470*
- Weight：42kg
- Certificate：ISO9001:2008
- Guarantee：One Year
- Material：Cast Iron
- Manipulate Way：Robotics
- Manufacturing Method：Cut Gear
- Changes Way：Stepped
- Toothed Portion Shape：Worm and Gear
- Transport Package：1 PC , Carton, Several Cartons , Wooden Pallet
- Specification：ISO7
- Trademark：Chenxin
- Origin：Zhejiang, China (Mainland)
- HS Code：848340900
- Production Capacity：25000set,Month
Description
Distance between the centers of worm and worm gear
7.5
Speed ratio of worm gear speed reducer
E
"E" means double extension worm shaft, no mark means single extension worm shaft
F1
"F" means output flange, "FL" means high output flange,no mark means output without flange
AZ
"AZ"means bidirectional output shaft, "GZ"means unilateral output shaft and no mark means hole output
B3
Installation position code
The speed reducer NMRV110 Accessories outline dimension
IEC Motor adapters
Model
PAM(IEC)
N
M
P
ration
Shaft:D
NMRV110
132B5
230
265
300
7.5
38
132B14
130
165
200
7.5
38
100/112B5
180
215
250
7.5
28
100/112B14
110
130
160
7.5
28
90B5
130
165
200
7.5
-
80B5
130
165
200
7.5
-

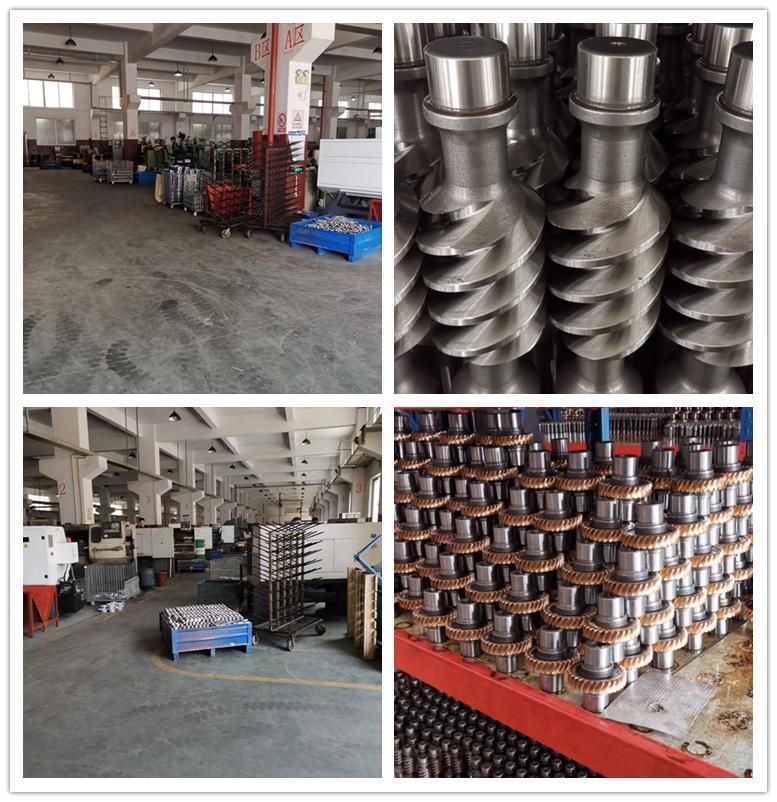

Manufacture workshop
