• Model NO.：EZ-Soft
• Dimensions (W * L * T)：Size 1.5: 1.60 X 1.20 X 0.2
• Active Pixel Array：Size 1.5: 1620 X 2230 Pixels (2
• Dynamic Range：12bit
• Transport Package：Original Colorful Box, Foam, Carton.
• Trademark：EZ-Soft
• Origin：Korea
• HS Code：90184990
• Production Capacity：500units,Month

Basic Info.

Model NO. EZ-Soft Dimensions (W * L * T) Size 1.5: 1.60 X 1.20 X 0.2 Active Pixel Array Size 1.5: 1620 X 2230 Pixels (2 Dynamic Range 12bit Transport Package Original Colorful Box, Foam, Carton. Trademark EZ-Soft Origin Korea HS Code 90184990 Production Capacity 500units/Month

Product Description

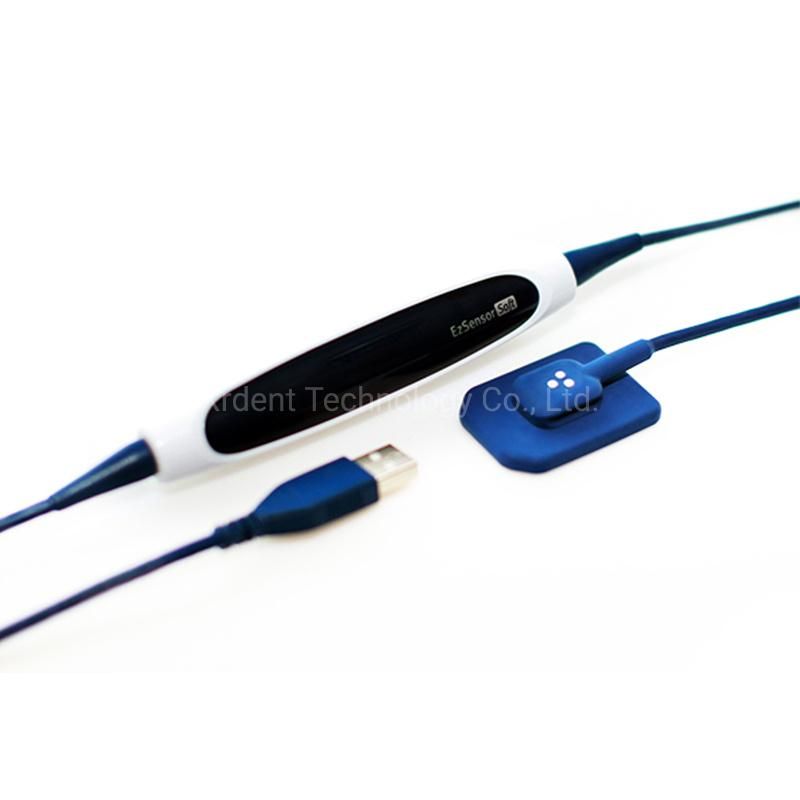

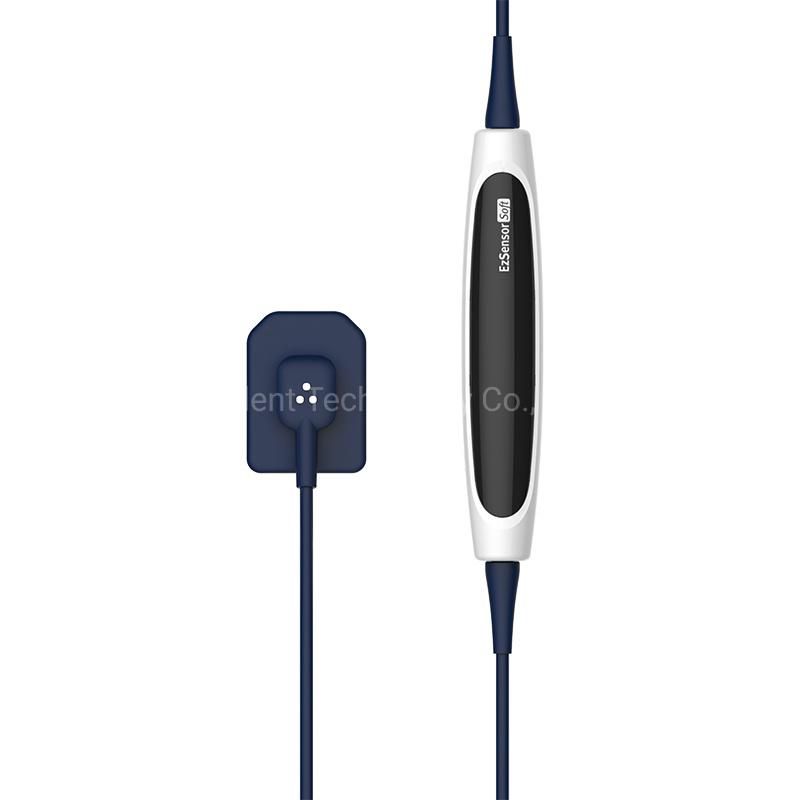

EZ-soft, Superior Quality Dental Intraoral Sensor
Technical Data

High Resolution Mode	0.0148 mm
Normal Resolution Mode	0.0296 mm
USB Cable length	Under 3 m
Dimensions (W * L * T)	Size 1.5: 1.60 x 1.20 x 0.20 inch (40.8 x 30.6 x 5.5mm)
Active Pixel Array	Size 1.5: 1620 x 2230 pixels (23.98 x 33.00 mm)
Normal Resolution Mode	810 x 1115 pixels
High Resolution Mode	33.78 lp/mm (theoretical)
Normal Resolution Mode	16.89 lp/mm (theoretical)
Dynamic Range:	12bit

Features

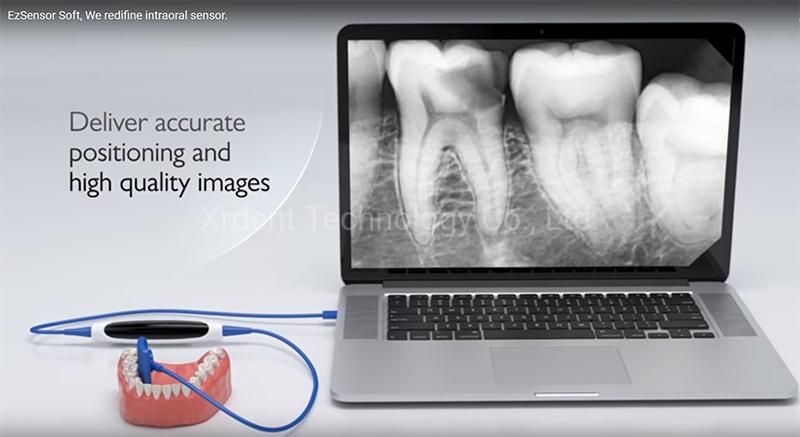

Easy diagnosis and great experience, EZ sensor
EzSensor provides consistently high resolution and clear images for accurate diagnosis and treatment planning with various size.
★Various Sizes (1.0 / 1.5 / 2.0)
Select the right sized sensor from the three size options to increase patient comfort.
MODE Size 1.0 Size 1.5 Size 2.0
Active Area 1.0 size: 30X20 mm , 1.5 size: 33X24mm,2.0 size: 36X26 mm
Purpose Narrow Arch (child, Female) Normal (female, male) Large or wide arch
★Ergonomic Design : Slim and rounded corner exterior
The EzSensor has a slim design with rounded corners for easy positioning
to ensure patient comfort.
★Durability
Unique design makes itself extremely durable.
The exterior is made of rugged aluminum and the
interior is esigned to absorb the external shock.
Furthermore, a reinforced, flexible cable attachment
protects the sensor from excessive bending.


Operating conditions:

Recommended Server PC specifications
★Workstation
★Operating System : Window 2000 server or higher
★RAM: 4GB or higher
★HDD: 1TB or higher

Recommended Client PC specifications
★CPU : Core DUO CPU 1.8GHz or Higher
★Main Memory : 2GB or Higher
★Graphic Card : 512MB or Higher
★HDD : 2GB free space
★Display : 1280*1024*32bpp
★Operating System:Windows 32/64bit: XP (SP2 or higher), Vista (SP1 or higher), 7, 8, 10
