- Model NO.：SMLN-200W
- Application：Highway, Square, Garden
- IP Rating：IP66
- Certification：CE, RoHS, CCC, UL, ISO, FCC, EMC, GS
- Voltage：DC12V
- Working Mode：Full Power and Dim Mode
- Pole：Q235
- Lighting Area：100m2
- Lighting Time：12 Hours
- LED Chip Brand：USA Bridgelux 210lm,W
- Controller：Automatic
- Back up Days：5 Days
- Maintenance：10 Years Free Maintenance
- Mounting Height：12-13m
- Distance Between Poles：30-35m
- Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
- Specification：A Grade
- Trademark：SunMaster
- Origin：Zhejiang, China.
- HS Code：9405409000
- Production Capacity：3, 000PCS ,Month
Basic Info.
Model NO.
SMLN-200W
Application
Highway, Square, Garden
IP Rating
IP66
Certification
CE, RoHS, CCC, UL, ISO, FCC, EMC, GS
Voltage
DC12V
Working Mode
Full Power and Dim Mode
Pole
Q235
Lighting Area
100m2
Lighting Time
12 Hours
LED Chip Brand
USA Bridgelux 210lm/W
Controller
Automatic
Back up Days
5 Days
Maintenance
10 Years Free Maintenance
Mounting Height
12-13m
Distance Between Poles
30-35m
Transport Package
Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
Specification
A Grade
Trademark
SunMaster
Origin
Zhejiang, China.
HS Code
9405409000
Production Capacity
3, 000PCS /Month
Product Description
1.Integrated design solar panel,LED chips, battery,cotroller,motion sensor etc.2.Without extra cable connection,save shipping and labour cost3..Energy saving by PIR motion sensor and environment friendly.4.High capacity and long life Lithium battery,more than 8 years working life and high-temperature resistance, make the whole light a longer life.

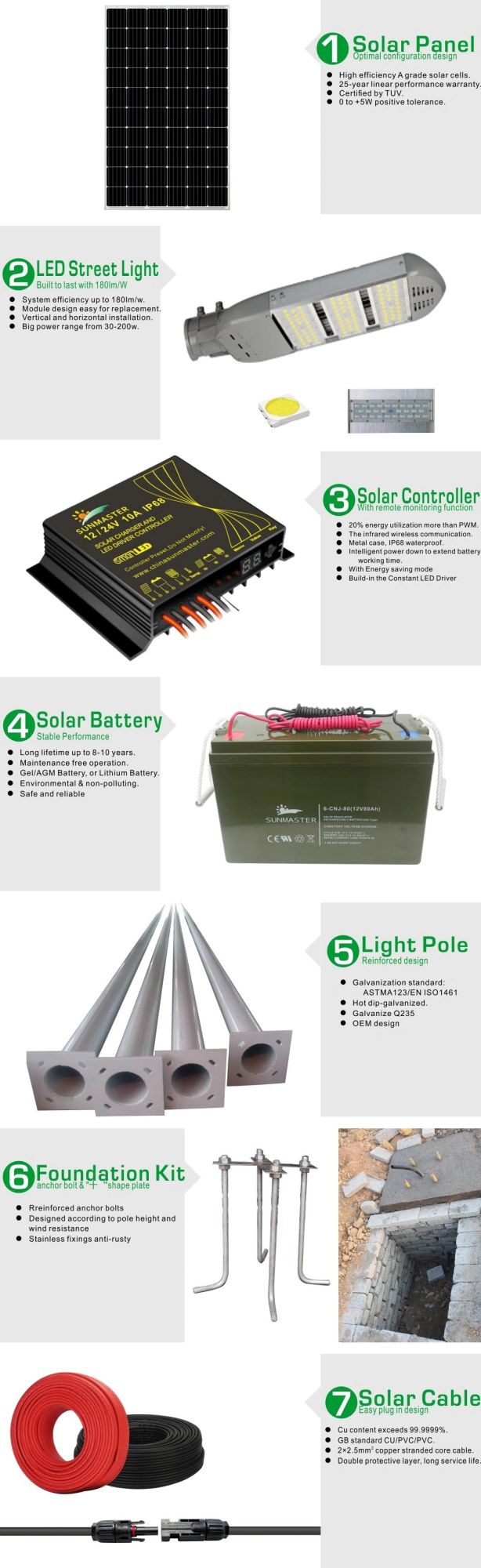

| Lighting Time | 10-14hrs/day(adjustable),3-7 rainy days back-up |
| Solar Panel | Poly solar panel 280W(optional)*2pcs,high efficiency,life span >25years 80% rated output power |
| Gel Battery | Capacity 200Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC)
Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years |
| Solar Controller | MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years |
| LED Lamp | LED power 200w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs |
| Light Pole | Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years |

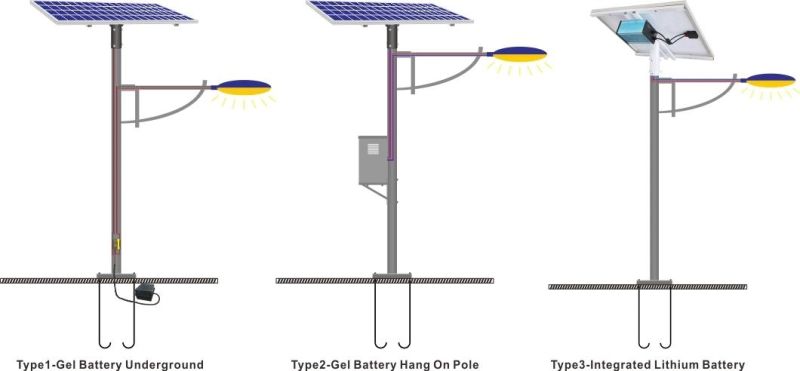

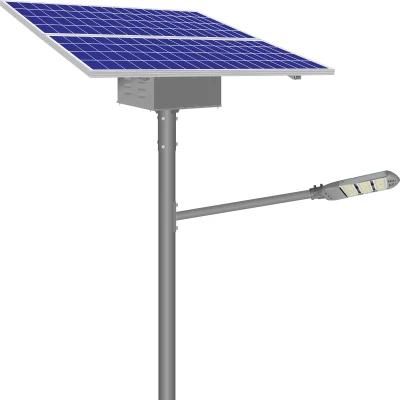

| Solar Battery Installtion Position |
| Recommended configurations |
| Lamp | Pole | Solar Panel | GEL Battery | Lighting Space | Controller | Working Hours | Backup |
| 20w | 3-4m | 50w*1pcs | 40Ah*1pcs | >12m | MPPT | 10-14 hours | 3-5days |
| 30w | 4-5m | 80w*1pcs | 60Ah*1pcs | >14m | MPPT | 10-14 hours | 3-5days |
| 40w | 5-6m | 100w*1pcs | 80Ah*1pcs | >15m | MPPT | 10-14hours | 3-5 days |
| 50w | 6-7m | 120w*1pcs | 50Ah*2pcs | >17m | MPPT | 10-14 hours | 3-5days |
| 60w | 7-8m | 150w*1pcs | 60Ah*2pcs | >20m | MPPT | 10-14 hours | 3-5 days |
| 70w | 7-8m | 180w*1pcs | 70Ah*2pcs | >22m | MPPT | 10-14 hours | 3-5 days |
| 80w | 8-9m | 200w*1pcs | 80Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 90w | 8-9m | 120w*2pcs | 90Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 100w | 9-10m | 130w*2pcs | 100Ah*2pcs | >27m | MPPT | 10-14 hours | 3-5 days |
| 120w | 10-11m | 150w*2pcs | 120Ah*2pcs | >30m | MPPT | 10-14 hours | 3-5 days |
| 140w | 11-12m | 180w*2pcs | 140Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 150w | 11-12m | 200w*2pcs | 150Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 180w | 12-13m | 250w*2pcs | 180Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
| 200w | 12-13m | 280w*2pcs | 200Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
