• Model NO.：WF-JF
• Material：Steel
• Position：Front
• Certification：ISO9001, ISO9002, ECE, GSV
• Classification：Disc
• Drum Brakes Classification：Brake Drum
• Main Market：South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
• Item：Hot Sale Truck Brake Disc
• Brand Name：Shengao,OEM
• Raw Material：Ductile Iron, Cast Iron, Qt500
• Size：DN100-1000mm
• Tchincs：Casting
• Factory：Over 15 Years′experience
• Delivery Time：30 Days After Receiving The Payment
• Service：OEM and ODM
• Custom Made：Yes
• Logo Printing：Customized
• MOQ：10-1000PCS
• Free Sample：Yes
• Inner Package：Carton Box,Plastic Bag
• Our Advantage：Factory Direct Sales
• The Delivery Port：Qingdao,Shanghai,Ningbo...
• Transport Package：Pallet, Iron Frame, Flywood Box.
• Specification：GSG, ISO9001: 2008, EN124, DIN, ASTM, GB
• Trademark：Shengao
• Origin：Weifang City, Shandong Province
• HS Code：87089910
• Production Capacity：50000PCS,Year
• Package size per unit product：38.00cm * 29.00cm * 13.00cm
• Gross weight per unit product：5.000kg

Basic Info.

Model NO. WF-JF Material Steel Position Front Certification ISO9001, ISO9002, ECE, GSV Classification Disc Drum Brakes Classification Brake Drum Main Market South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market Item Hot Sale Truck Brake Disc Brand Name Shengao,OEM Raw Material Ductile Iron, Cast Iron, Qt500 Size DN100-1000mm Tchincs Casting Factory Over 15 Years′experience Delivery Time 30 Days After Receiving The Payment Service OEM and ODM Custom Made Yes Logo Printing Customized MOQ 10-1000PCS Free Sample Yes Inner Package Carton Box/Plastic Bag Our Advantage Factory Direct Sales The Delivery Port Qingdao,Shanghai,Ningbo... Transport Package Pallet, Iron Frame, Flywood Box. Specification GSG, ISO9001: 2008, EN124, DIN, ASTM, GB Trademark Shengao Origin Weifang City, Shandong Province HS Code 87089910 Production Capacity 50000PCS/Year

Packaging & Delivery

Package size per unit product 38.00cm * 29.00cm * 13.00cm Gross weight per unit product 5.000kg

Product Description

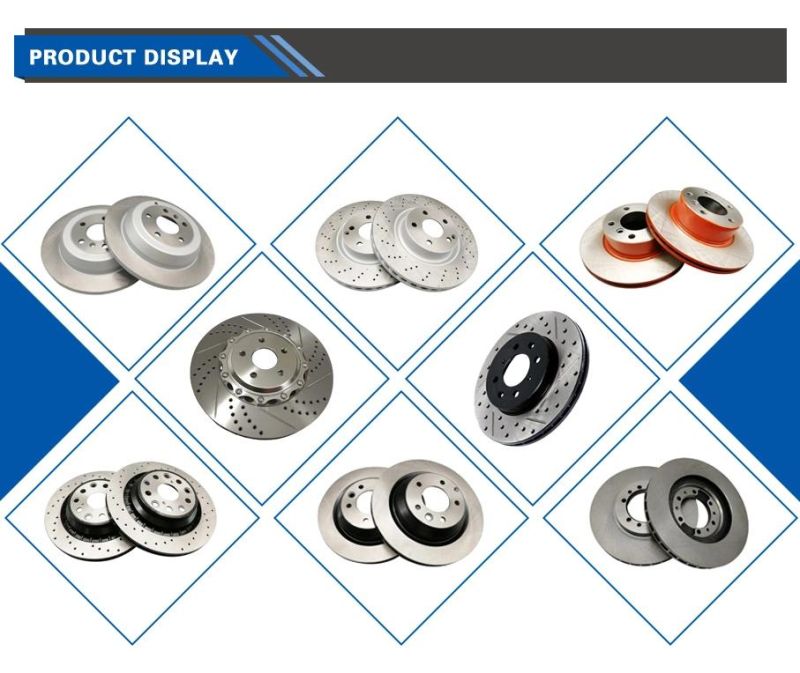

                      OEM Stainless Steel Car/Truck/Bike Brake Front/Rear Disc with Polishing


Brake Discs Features:
•Equivalent to OE design
•Smooth and quick stop
•Anti-rust
•Low noise, low dust
•Optimal thermal performance

 1.Chemical  specification

Item	standards	Brake disc
C	3.1--3.4	3.3
Si	1.9--2.3	1.95
Mn	0.6--0.9	0.75
P	0.15 MAX	0.1
S	0.12MAX	0.08


2.Physical propertities

Item	standards	Brake disc
Tensile strength	245 N/mm2 MIN	268
Hardness HB	187--241 HB	230
microstructure	A 85% MIN+B5%MAX	A 92% MIN +B 4%MAX
Dynamic balance Disc	260 g-cm  MAX	200 g-cm
Dynamic balance Drum	1300 g-cm MAX	500 g-cm

Remark: The products and pictures showed above are only to present the scope of our manufacturing types.
We're happy to evaluate if we could custom the parts according to your drawings or samples after receiving them.

    The brake disc (or rotor) is the rotating part of a wheel's disc brake assembly, against which the brake
    pads are applied. The material is typically gray iron,a form of cast iron.

    The design of the discs varies somewhat. Some are simply solid, but others are hollowed out with fins
    or vanes joining together the disc's two contact surfaces (usually included as part of a casting process).
    The weight and power of the vehicle determines the need for ventilated discs.The "ventilated" disc
    design helps to dissipate the generated heat and is commonly used on the more-heavily
    loaded front discs.

    Our advantage as below:

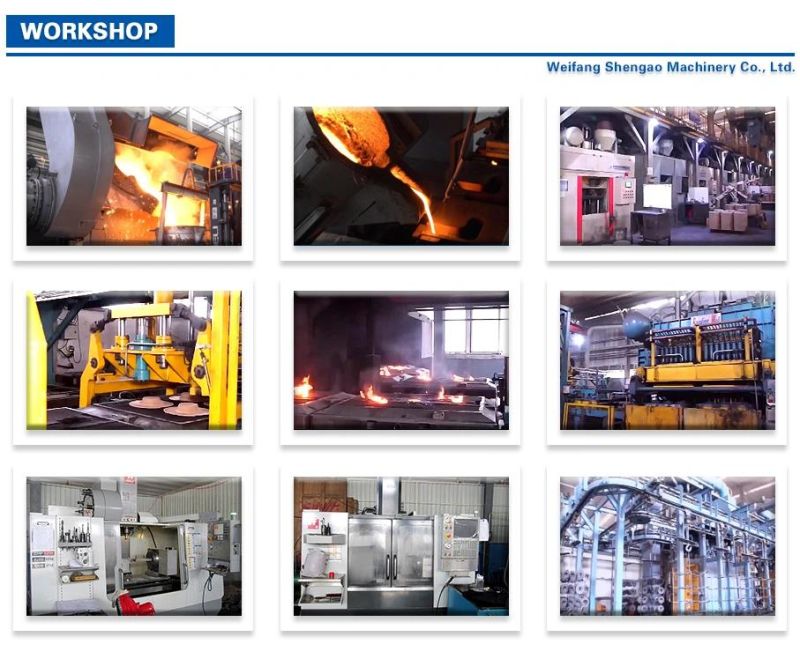

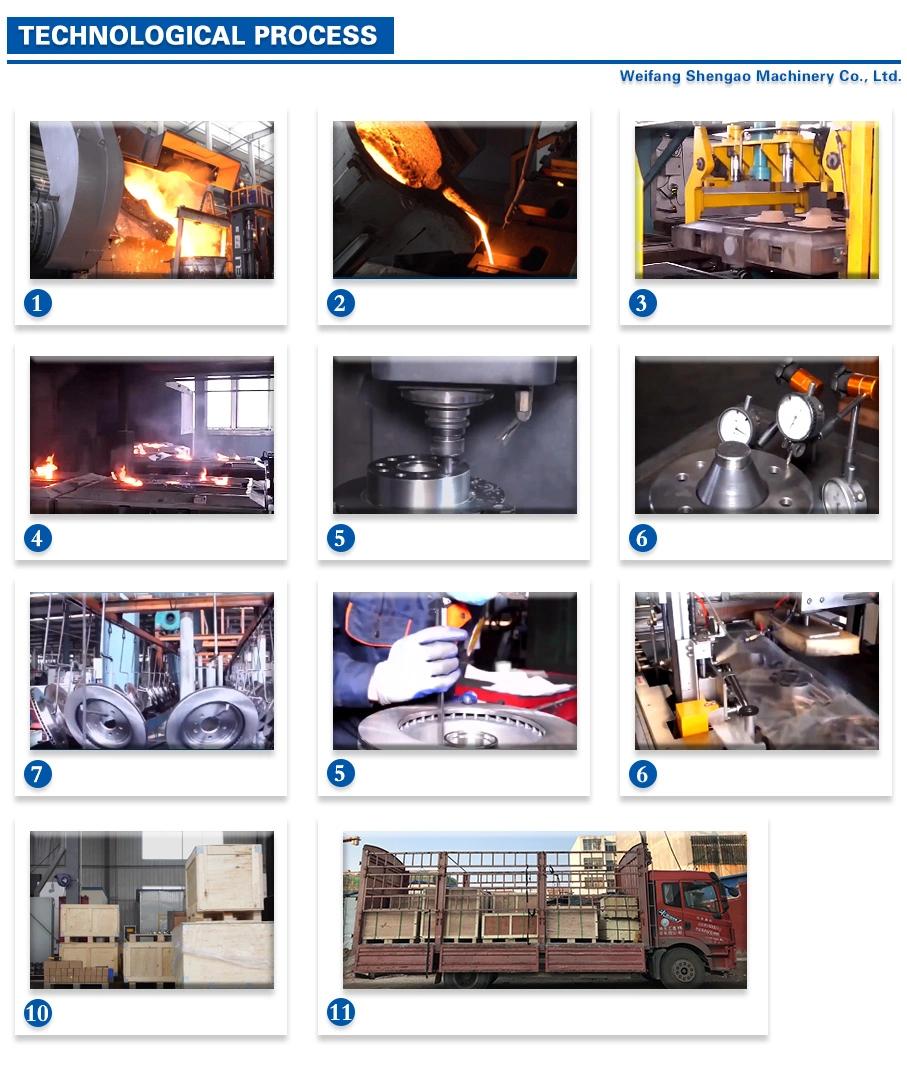

    1.-Professional Manufacture ,high-volume environmental foundry electric stoves and foundry
    production line,output reach 5000 tons per month.
    2.-Long Service Life and quality warrantee period & Low noise for brake discs.

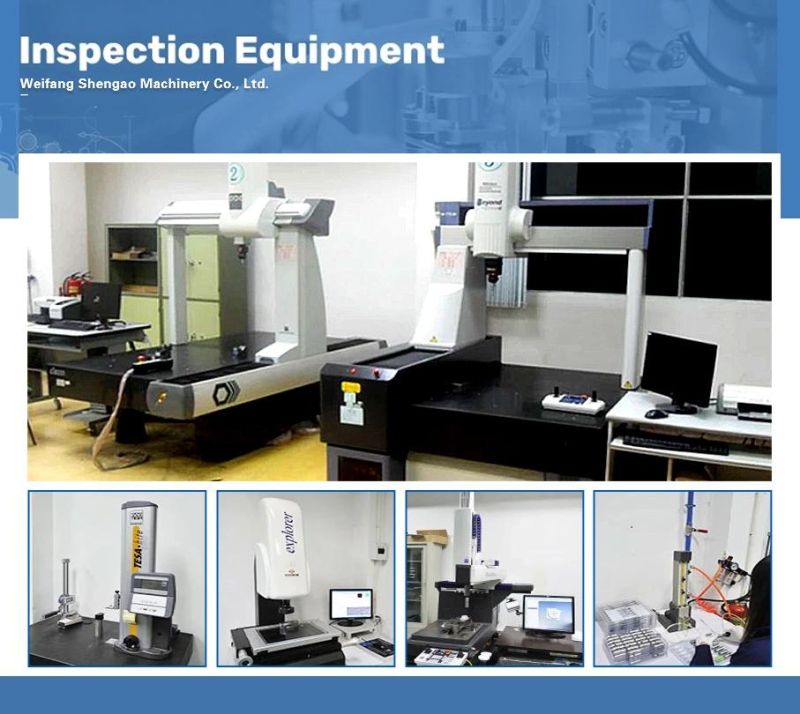

    3.strictly testing and ways for discs and drums dynamic balance.keep the products stable balance
    during driving.
    100% test brake discs' crucial dimension inspection and machining surface.
    4.Material: casting Iron
    5.Standard: HT-250  raw material G3000 standards.
    6.Solid or vented for brake discs style: VENTED
    7.Packing: Neutral or Color carton.poly woodpallet.
    8.Short-term Export Credit Insurance, TS16949 and ISO 9002certificate;
    9.many years of export experiance.familiar to many kinds of certifications and government CIQ
    regulation.many kinds of goverments and Customs documents meantime.


FAQ
Q1: Are you a trading company or a factory?
A: We are a manufacturer specialized in Machining OEM parts.

Q2: Do you accept to manufacturing customized products based on our design?
A: Yes, we are a professional factory with an experienced engineering team, would like to provide the OEM service.

Q3: How can I get the quotation?
A: We will offer you the quotation within 24 working hours after receiving your detailed information.

Q4: Will my drawings be safe after sending them to you?
A: Sure, we will keep them well and not release to others without your permission.

Q5: How long is the lead-time for sample and Bulk production?
A: Normally, the lead time for samples is around 2-4 weeks, for bulk production is around 4-8 weeks (depends on order quantity)

Q6: I have no 3D drawing, how should I start the new project?
A: You can supply us the sample or provide us the product sizes and let us know the detailed requirements, our engineers will help you to work out the 3D drawing.

Q7: Is it possible to know how are my products going on without visiting your factory?
A: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

High quality products, reasonable price, prompt delivery, and superior service ensure our marketing
competitiveness.
Our company has earned high reputation from oveasea customers.
We are looking forward to cooperating with you to forge a better future!


           If there's anything I can help, please feel free to contact with us.
