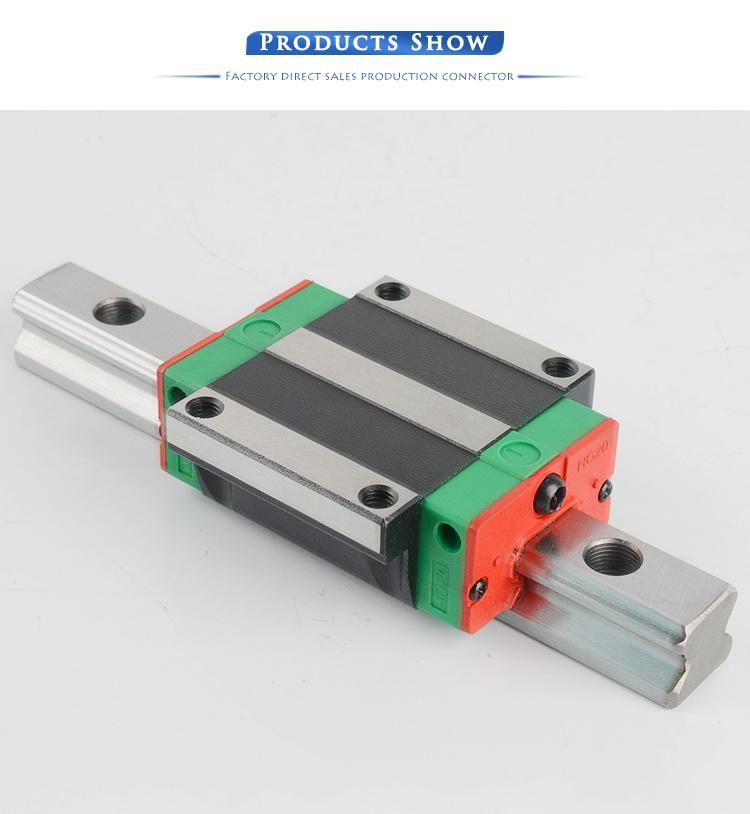

3D Printing Industrial Semi-Conductor Industries Linear Slideway Guide Rail
Shenzhen Gonghua Technology Co., Ltd.- Feature：High Speed
- Flange Shape：Square
- Shape：Flange
- Series：Hg
- Material：Bearing Steel
- Type：Universal
Base Info
- Model NO.：HGW
- Allowed Static Moment：1.98,1.55,1.55 Kn-M
- Dynamic Rated Load：16.97-136.46kn
- Static Rated Load：11.38-94.54kn
- Screw Size：M4-M12
- Rail Weight：1.45-10.41kg,M
- Slider Weight：0.18-3.61kg
- Mutual H：0.006 mm
- Mutual N：0.006 mm
- Motion Accuracy C on a：0.003,100mm
- Motion Accuracy D on B：0.003,100mm
- Transport Package：Wooden Case, Carton
- Specification：520*420*4500mm
- Trademark：SNTOOM
- Origin：Wenzhou, China
- HS Code：8466940090
- Production Capacity：100000PCS,Month
Description
Overview
Product Description
High Accuracy

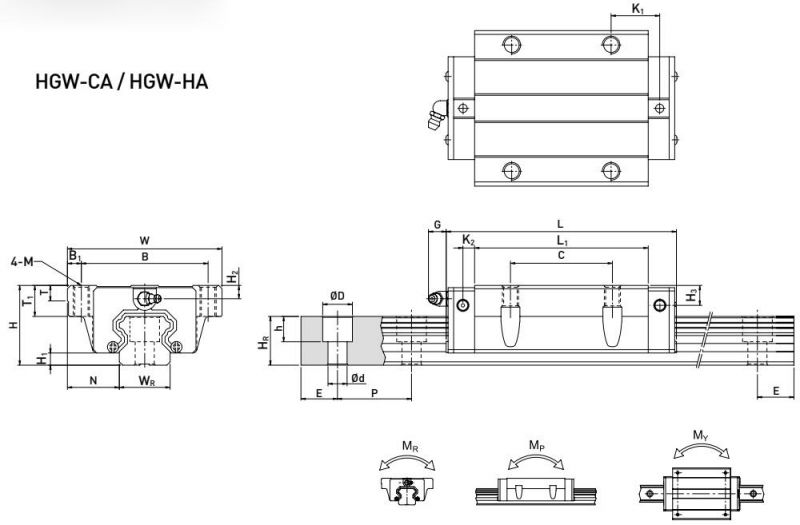

Product Parameters
Circulation unit: Block, Rail, End Cap, Steel Balls, Circulation tube
Lubrication unit: Grease nipple.
Anti-Dust unit: End Seal, Bottom Seal, Mounting Hole Cap.
High Accuracy
Product Parameters
Circulation unit: Block, Rail, End Cap, Steel Balls, Circulation tube
Lubrication unit: Grease nipple.
Anti-Dust unit: End Seal, Bottom Seal, Mounting Hole Cap.
