• Model NO.：SMLN100W

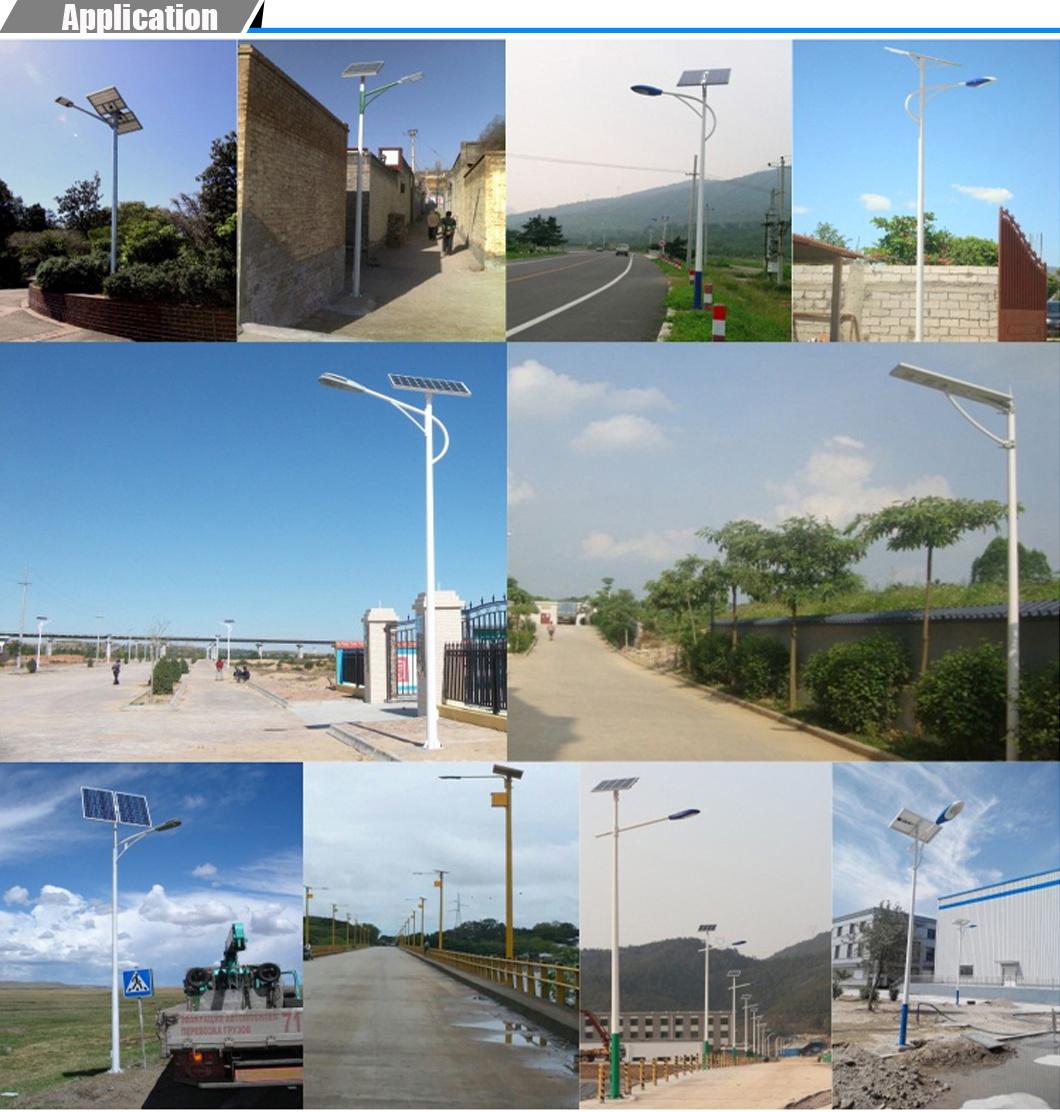

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• LED Chip Brand：USA Bridgelux 210lm,W
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Lifetime(Hour)：50000
• CRI (Ra>)：75,80,85,90
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Lighting Area：100m²
• Controller：MPPT
• Maintenance：8 Years Free Maintenance
• Mounting Height：3m 4m 5m 6m 7m
• Transport Package：Carten
• Specification：630X405X75mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN100W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V LED Chip Brand USA Bridgelux 210lm/W Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Lifetime(Hour) 50000 CRI (Ra>) 75/80/85/90 Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years Lighting Area 100m² Controller MPPT Maintenance 8 Years Free Maintenance Mounting Height 3m 4m 5m 6m 7m Transport Package Carten Specification 630X405X75mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

1.Remote control-Simple operation, change to different modes easily.

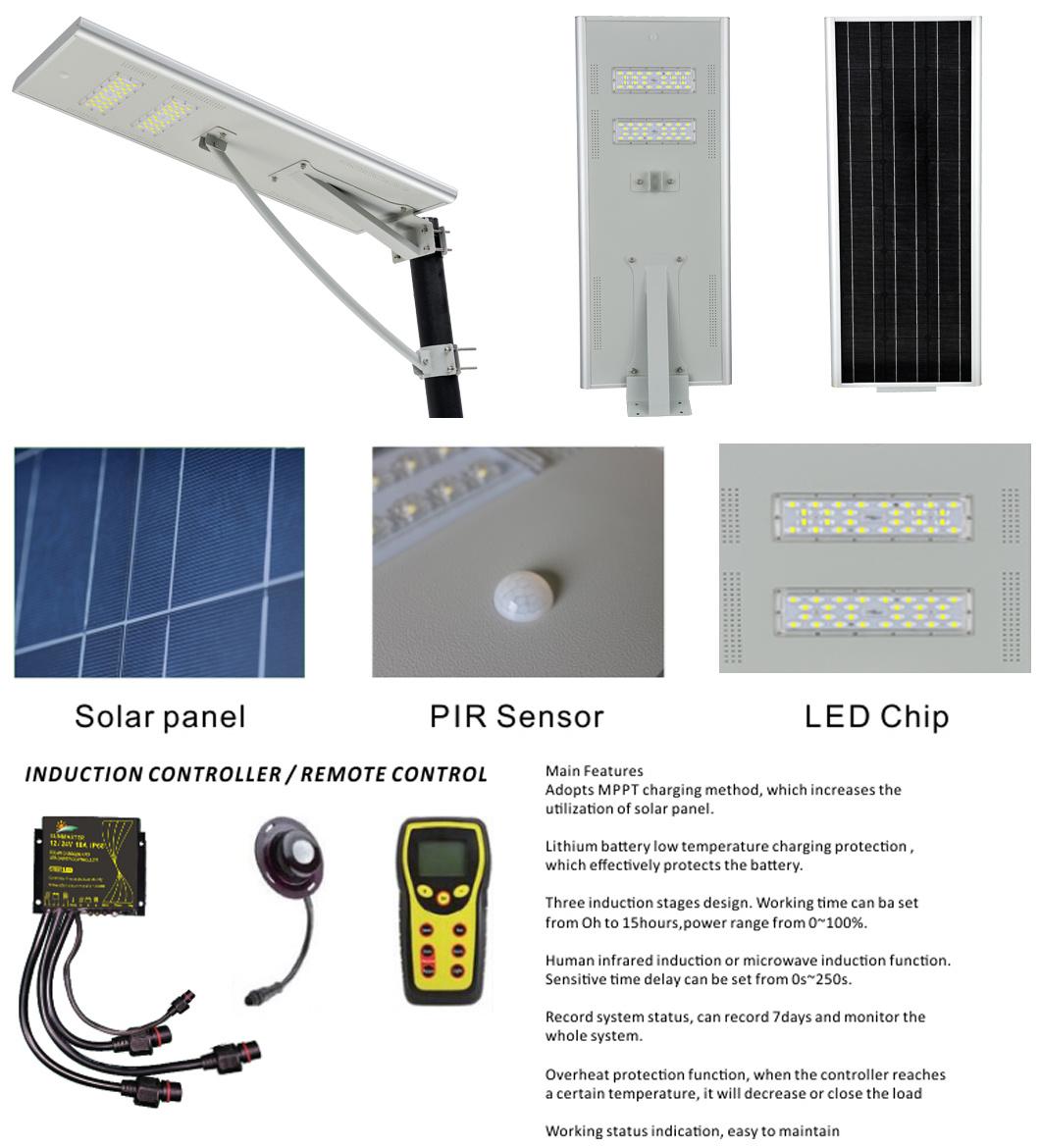

2.Wireless application-Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.

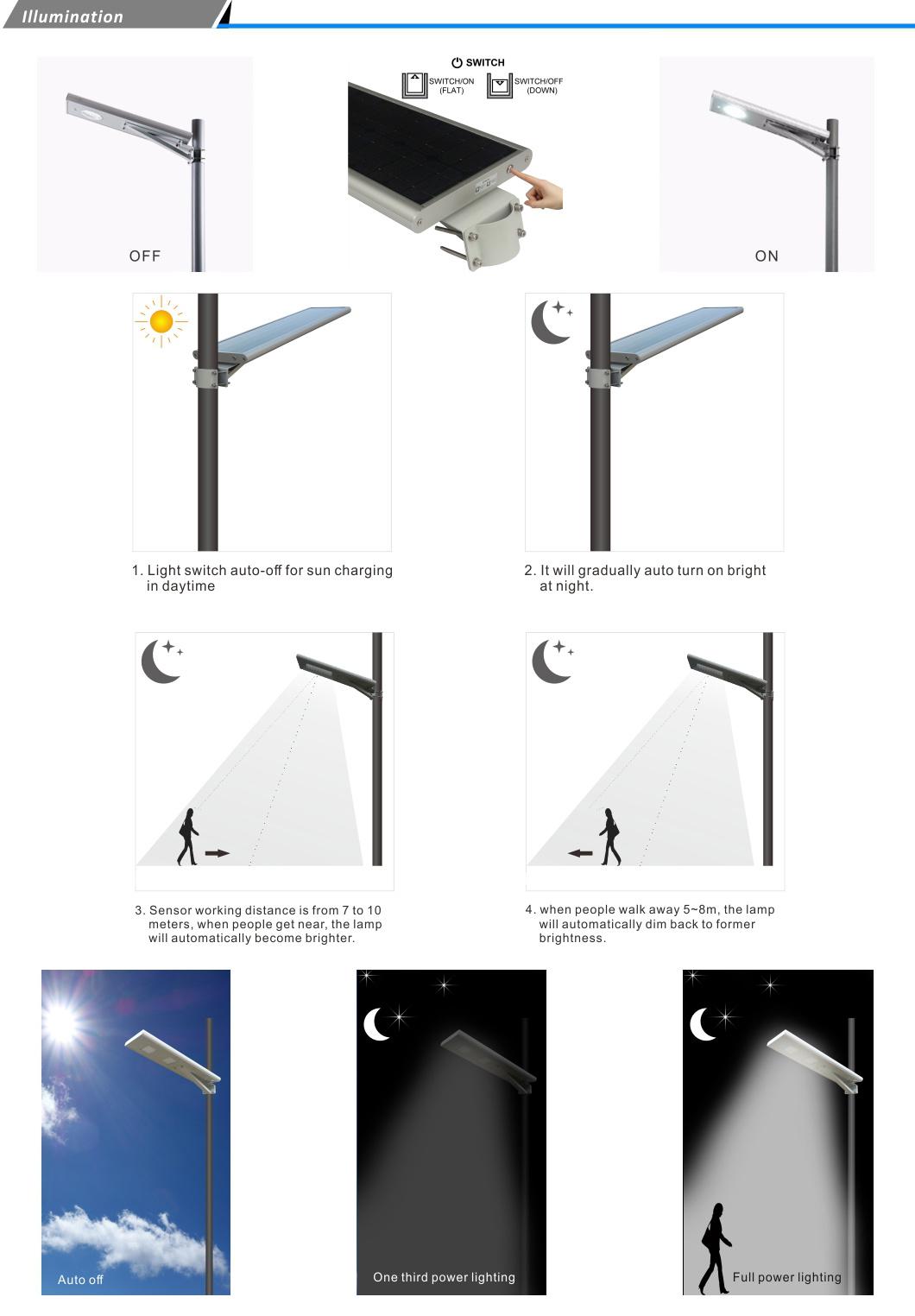

3.Micro-computer controlled-Combine motion sensor system, light control system and time control system.
4.Easy installation-No trench  required, no cables connection required, easy installation in 2 minutes.
5.Lithium battery-Adopt LiFe Po4 lithium battery to replace  gel battery, longer lifetime.
6.Modular design-All components are modular design and easy for expand.
7.Long time working- 12-14 hours each night,3-5 rainy days.
8.Compact design save the trasportation cost

Model NO.	SMLN-50W	Battery Type:	LiFePO4 33Ah/12.8V
Power:	50W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1144*450*470mm
Viewing Angle:	120	Packing Dimension:	1180*510*200mm
Working temperature :	,-20 ~ +70	Product Weight	19.5KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	8-9 m
Solar Panel:	18V 80W Mono-crystalalline	Warranty:	3 years
