P10/P8 /P5 Outdoor LED Display Screen Billboard
Qingdao Dinghui Refrigeration System Supply Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：8mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：220W , m²
Base Info
- Model NO.：P10
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC
- Cabinet Material：Steel

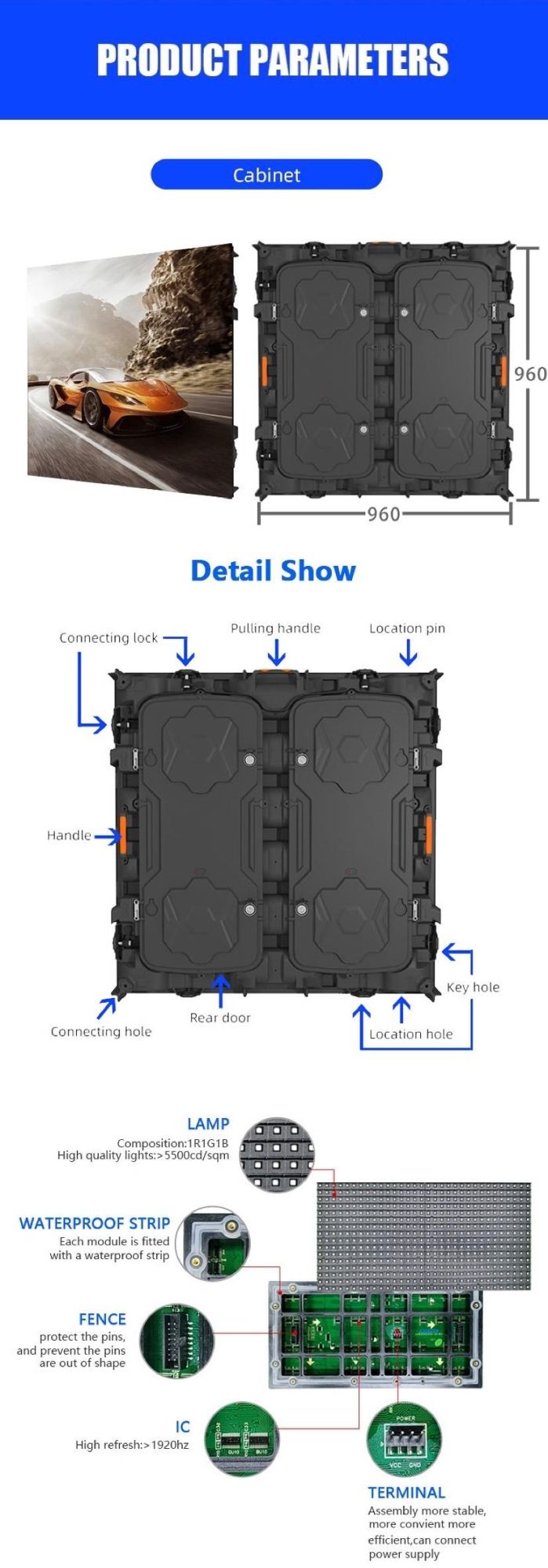

- Cabinet Size：1024mm X768mm X 120mm
- Cabinet Weight：40 Kg,PC
- Lifetime(H): More Than 50000;：More Than 8 Years
- Brightness：More Than 6000CD
- Transport Package：Wooden Box
- Specification：960mm X 960mm
- Trademark：NVD
- Origin：Made-in-China
- HS Code：8528591090
- Production Capacity：3000sqm, Month
Description
Outdoor fix installation LED Display SMD SerialPixel Pitch 4mm 5mm 6mm 8mm 10mm Pixel density(dot/m2) 62500 40000 27777 15625 10000 LED lamp type SMD1921 SMD2727 SMD3535 SMD3535 SMD3535 Brightness (nits) ≥5500 ≥5500 ≥5500 ≥6000 ≥6000 Drive Method 1/16 1/8 1/8 1/4 1/2 Refresh rate (HZ) ≥1200 Module size (mm) 256X128 160x160 192X192 256X128 320X160 Cabinet size (mm) Customize, integer multiples of module size Cabinet material Steel Cabinet weight 50kg/sqm Screen work Voltage (V) 110~240V/AC Screen power consumption(W/sqm) Max 750 Average250 Max 750 Average250 Max 750
Average 250 Max 720
Average 240 Max 720
Average 240 Screen View angle 140°/140° IP Grade Front IP65/ Rear IP54 Operation Temperature/Humidity -20~50ºC
10~90% RH Storage Temperature/Humidity -40~60ºC
10~90% RH Life Time 100,000 hours Signal Iput (with video processor) AV ,S-video, VGA, DVI , HDMI, SDI, DP Certification CE ROHS CCC ISO
Function and Technology Character (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

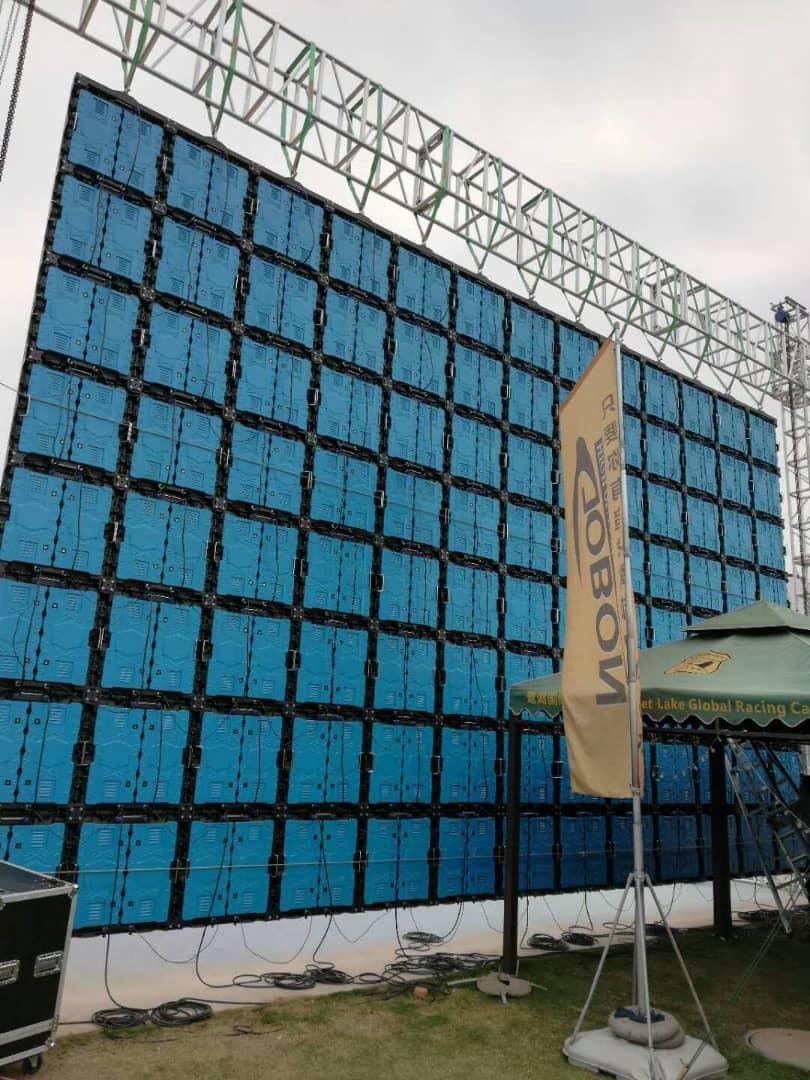

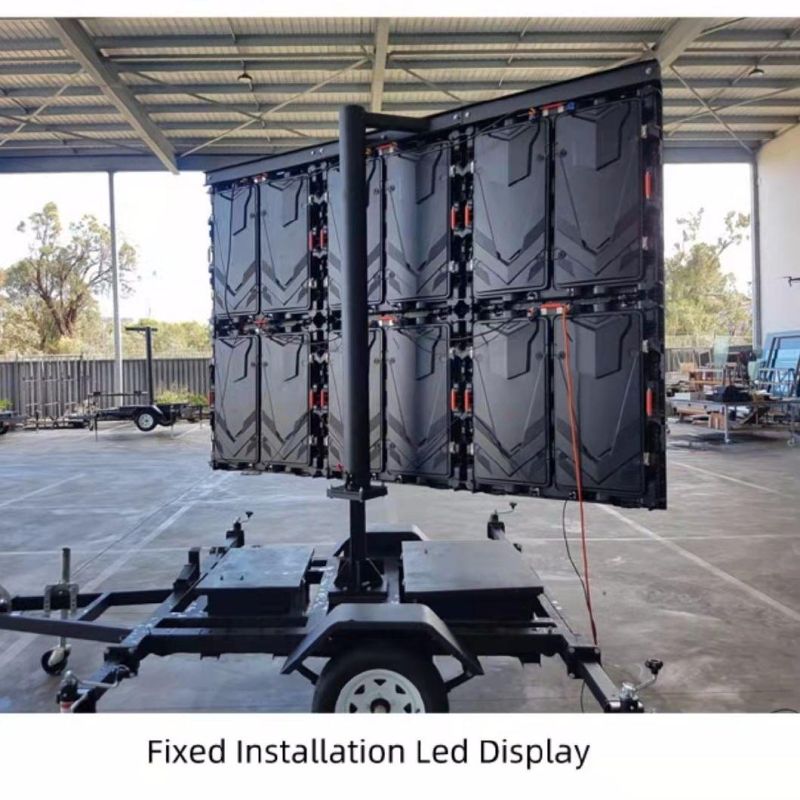

nstallation manner ( Amount to the wall, fix to the wall , one pole standing and so on )
Average 250
Average 240
Average 240
10~90% RH
10~90% RH
Function and Technology Character (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

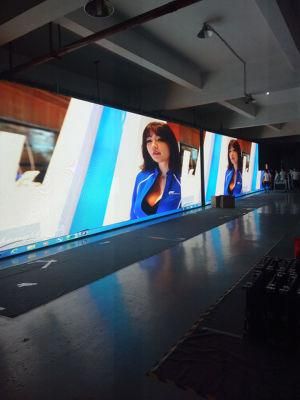

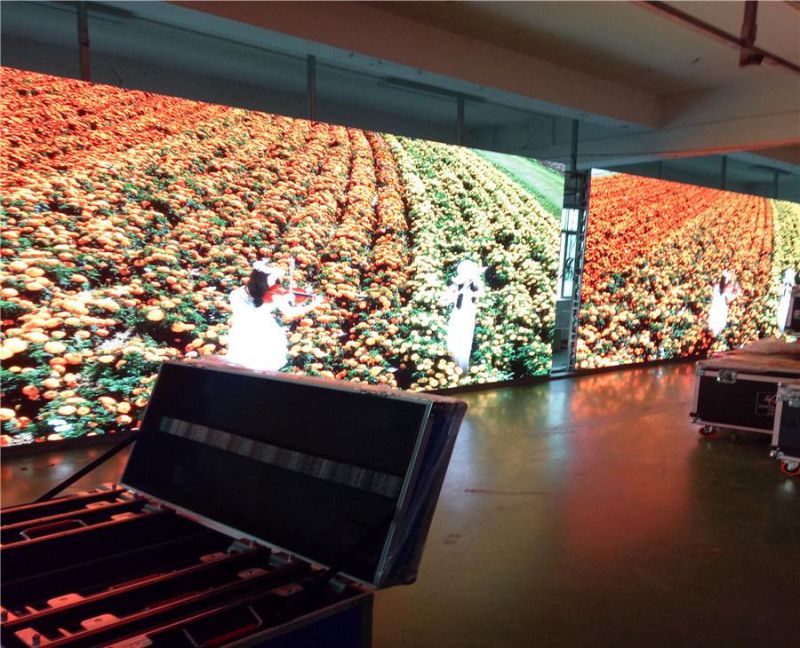

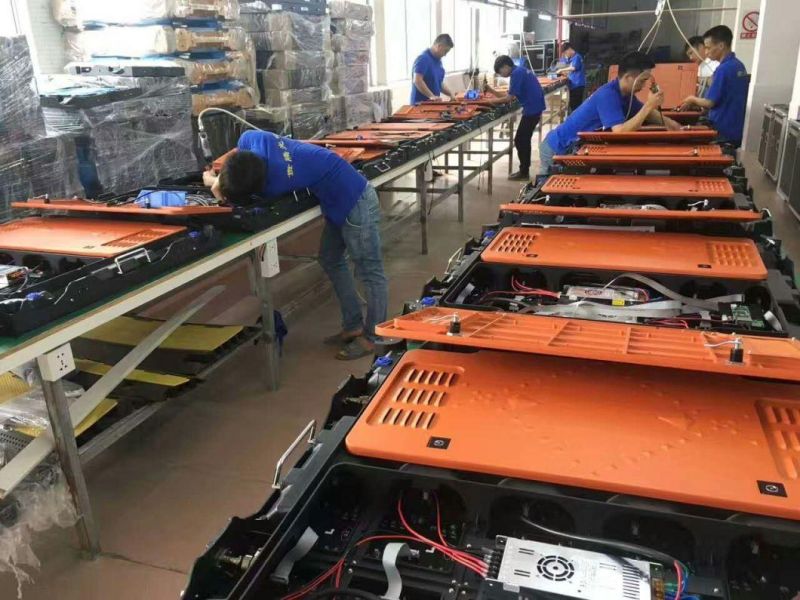

LED Screen Factory aging view :
nstallation manner ( Amount to the wall, fix to the wall , one pole standing and so on )
