P16 Outdoor DIP Super Bright Advertising Panel Full Color LED Display Board
Luoyang Tianpeng Packaging Product Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：16mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：600W , m²
Base Info
- Model NO.：SY-P16-1S
- Pixel Density：3906 Dots,M2
- Scanning Mode：Static Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, CCC, FCC
- Warranty：Two Years Warranty After Shipping

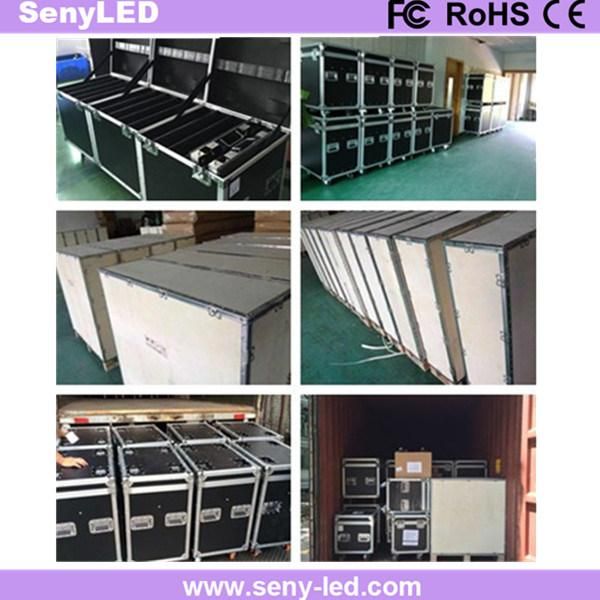

- Transport Package：Plywood Box or Flight Case
- Specification：CE, RoHS, FCC
- Trademark：SENY
- Origin：Shenzhen, Guangdong, China
- HS Code：8528591090
- Production Capacity：5000sqm,Month
Description
P16 Outdoor DIP Super Bright Advertising Panel Full Color LED Display BoardS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V Visual Angle2Red LEDDIP346600-800mcd620-625nm110º/50º3Green LEDDIP3461800-2000mcd520-525nm110º/50º4Blue LEDDIP346400-600mcd470-475nm110º/50ºModule Specification1Pixel Pitch16mm2Pixel Configuration1R1G1B3Module Resolution16 x 8 pixels4Module Pixles128 pixels5Module Size256mm X 128mmCabinet Specification1Cabinet Size(W X H X D)1024mm x 1024mm x 150mm2Cabinet Resolution(dot)64 x 64 pixels3Module Quanity (pcs)32pcs4Cabinet Pixels3072 pixels5Pixel Density3906 pixels/m26Cabinet MaterialsStandard waterproof cabinet for fix installationWhole Screen Specification1Screen Brightness≥7000cd/m22Driving MethodState state3Best Viewing Distance16m - 150m4Max. Power Consumption1000W/m25Average Power Consumption500W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥1000Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleIP6517Screen Plainness<±1mm18Power Supply ModeAC220±10% 50Hz/AC110±10% 60Hz19Environment Temperature & HumidityTemperature:-20 Celsius~+60 CelsiusHumidity:10%~90% RH20Control ModeSynchronous display with control PC by DVI21Control SystemDVI video card + full color control card + fiber system( optional)22Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.23InterfaceStandard Ethernet24Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100mPackaging and Delivery:
