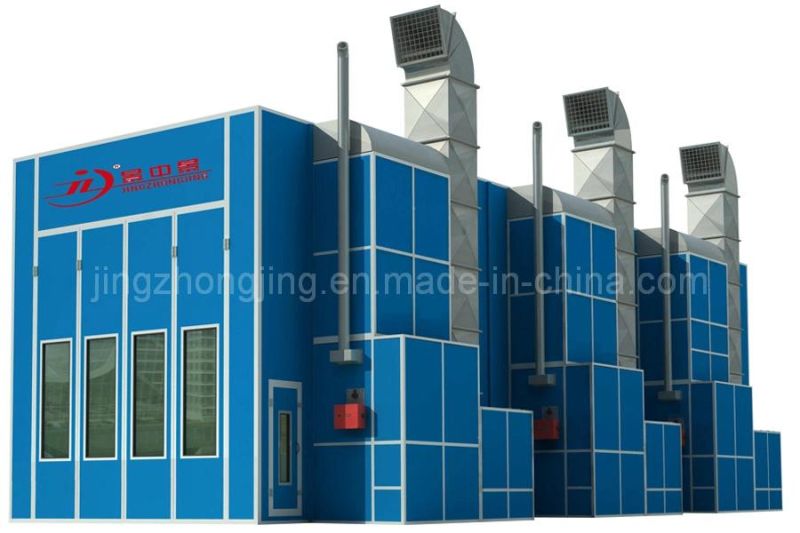

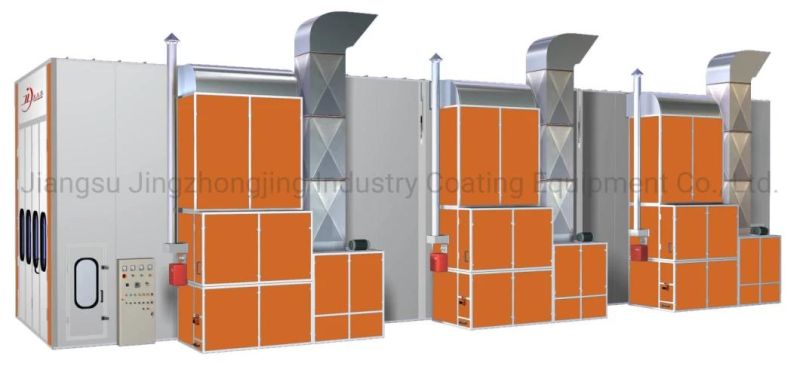

• Model NO.：JZJ-FB-20
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Sea Blue, Red, Orange, White
• Motors：Proof-Explosion Motors
• Lighting：External Lighting
• Transport Package：Consist with International Shipping Packaging.
• Specification：CE, ISO
• Trademark：JZJ
• Origin：Yancheng Jiangsu
• HS Code：8419899090
• Production Capacity：2500 Sets,Year

20156*8006*5800(L*W*H) Inside Dimension(mm)20000*6000*5000(L*W*H)Front Door(mm)4800*4500(W*H)Service door (mm)1800*650(W*H)Total Power120KWCabin systemWall panel  75mm EPS sandwich panel, steel sheet thickness: 0.6mmCeiling panel 50mm rock-wool panel.Windows4mm safety tempered glassAir Make-up SystemAir Inlet fan system6*9kw centrifugal belt-drive fan, proof-explosion motor. Exhausted fan system3*18.5kw centrifugal belt-drive fan, proof-explosion motor. Ai capacity for fresh air23000m3/h *6Air capacity for exhausted air42000m3/h *3Air Flowing speed0.25m/s in empty boothAir Control methodEach exhausted fan system with One manual damper for exhausted systemExhausted ductingEach exhausted fan system with 6meters straight ducting, one 90°elbow for
each unit fan system.Purification SystemPre-filterG3 gradeCeiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersM green fiber glass filter. Heating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:        3 sets Riello RG5S diesel oil burner(gas burner for option)    Heating productivity                             260000Kcal/h/ burnerSpray to baking switch20N BELIMO brand electrical damperChimney ductingEach heating system 6 meters stainless ducting for each heating systemMax heating temperature80degreesfuel consumption10-15L /vehicleLighting SystemCeiling lights26 Units, each 4 x 36W, Total 3744 WSide lights28 Units, each 2 x 36W, Total 2016W Illumination 900LUXControlling systemMicro-computerized programming systemspraying&baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gaugeQ: What standards are you carrying out for your products?
A: We produce according to the ISO 9001 and ISO 14001 rules.

Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.

Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more

Q: What is your productivity?
A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.

Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.
