• Model NO.：7.938mm
• Hardness：58-65 HRC Bearing Ball
• Shape：Polish Round Bearing Steel Ball
• Grade：G10-G1000 Chrome Steel Ball
• Application：Solid Bicycle, Motor, Machinery, Tools
• Product Name：High-Carbon Stainless Chrome Steel Ball
• Structure：Solid Chrome Steel Ball
• Size Range：0.5mm-180mm Chrome Steel Ball
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Specification：high quality
• Trademark：ZYS
• Origin：Luoyang, Henan, China
• Production Capacity：400000,Month

Overview Product Description

Si3N4 is a new kind of bearing material with several good features, it possesses high temperature resistance, corrosion resistance, insulation, non-magnetism, high strength, low density and other features. In the application of bearing, it possesses low friction, low temperature rise, high rigidity, low centrifugal force and other features. It can implement high speed, high precision, high temperature, high rigidity, corrosion resistance and other good features.
The high precision and high performance silicon nitride bearing ball is manufactured by  spray-drying process, near-net-shape, cold isotatic pressing, GPS-HIP combined sintering, compounded abrasive lapping process effectively. The precision grade of it is G5, the materials class is I.

ZYS Si3N4 ceramic ball material grades

                       Class
ItemMaterials classIIIIIIPropertyBending strengthσ3.40(Mpa)900800600Crushing load ratio(%)353530Hardness(HV10)158014801380Fracture toughness(Mpa.m1/2)6.05.05.0The limit does of fiber structurePore size(μm)101025Porosity(%)0.020.060.06Crystal phase(μm)101025The second ceramic phase(μm)252525The maximum of inclusion of transverse section every
Square centimeterRange 200(μm)001Range 100~200(μm)012Range 50~100(μm)124Range 20~50(μm)4816
Examples of Si3N4 ceramic ball's common applicationsProduct Parameters

ZYS Si3N4 ceramic ball specifications

The nominal diameter of bearing ballThe nominal diameter of bearing ballThe nominal diameter of bearing ballmminmminmmin 1/325 8.73111/320.8 5.5 9.5253/81 5.5567/3211.1127/161.5881/165.95315/6412.30331/642 6 12.71/22.3813/326.351/413.49417/322.5 6.5 14.2889/163 6.74717/6415.08119/323.9695/327 15.8755/84 7.1449/3219.053/44.5 7.5 25.414.7623/167.9385/1631.751 1/4

Note:  The special specification can be manufactured after negotiating



Detailed Photos

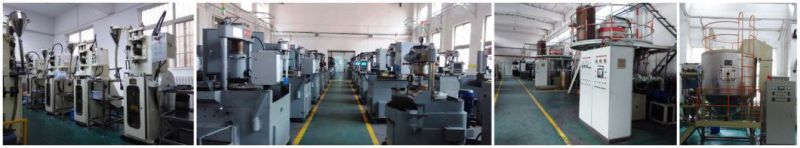

ZYS Ceramic ball workshop:

Our Advantages

 ZYS Glory

Top 200 most promising companies of China in Forbes

Top 500 in China Machinery Industry

Excellent Enterprise with China Well-know Trademark

High-performance Bearings Laboratory

State Quality Supervision and Testing Center for Bearing

ISO/TC4 China Secretariat

The Research Center for High-speed Precision Bearing Engineering in Machinery Industry


Certifications

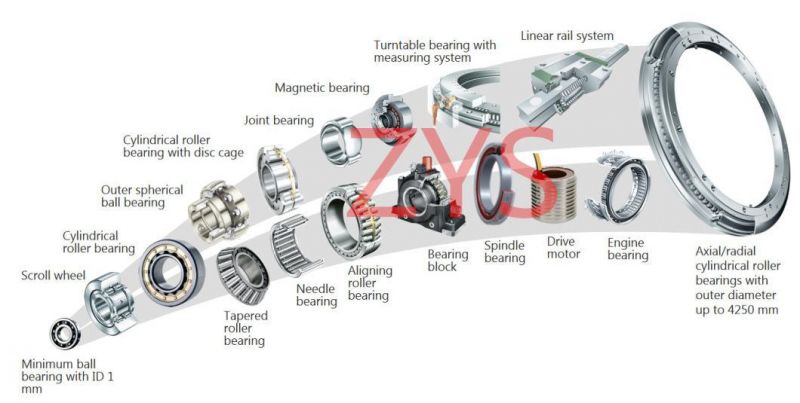

ZYS bearing products




......

      We would like to and ready to do business with any company from all over the world. If you are interested in any of ZYS products, please don't hesitate to contact with us, we would like to give you ZYS best quality service any day any time !
