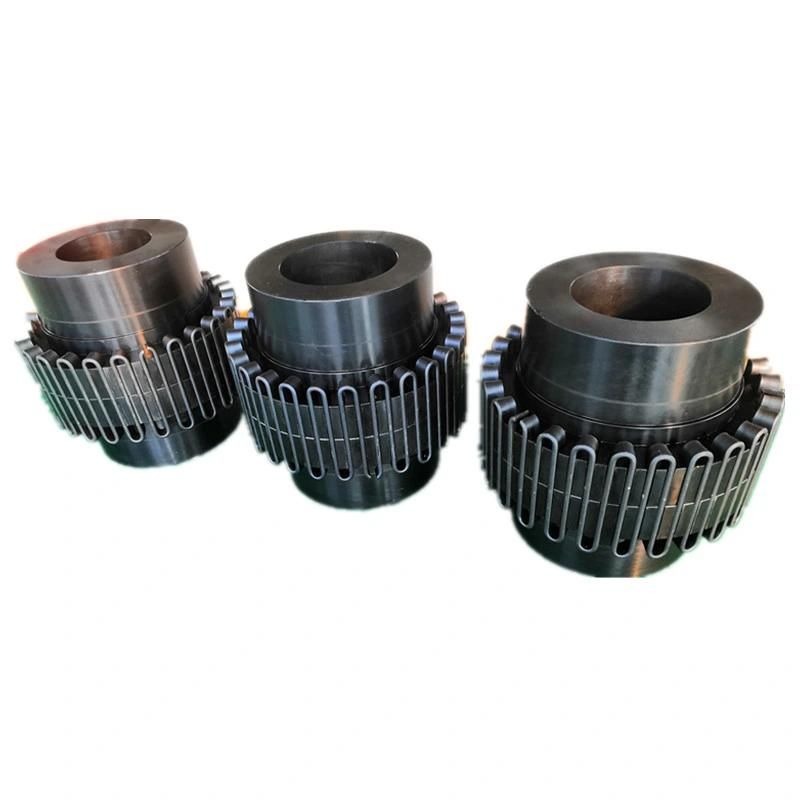

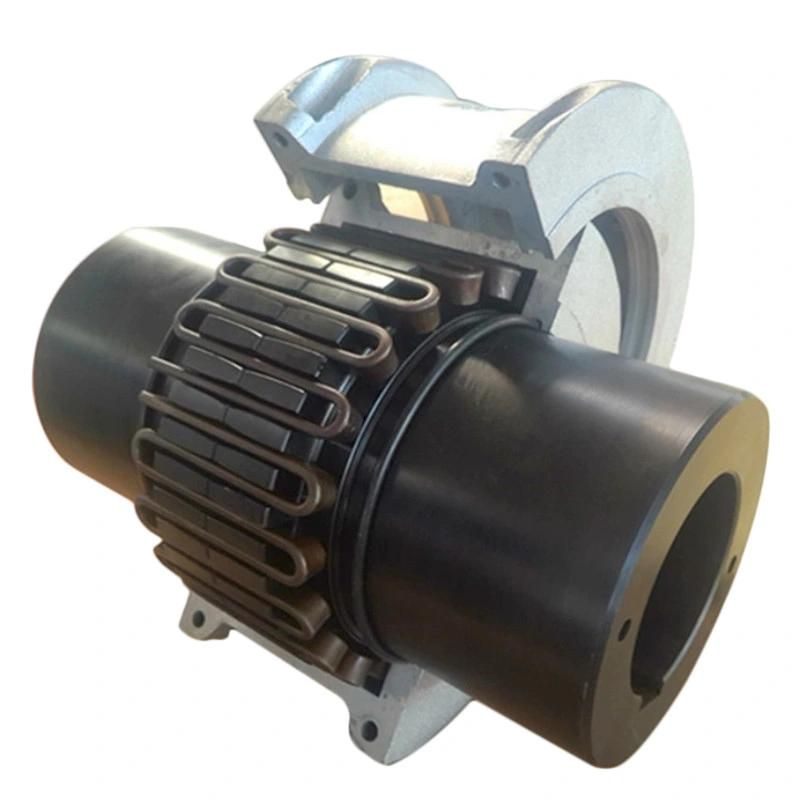

Large Transmission Torque Grid Coupling with Manufacture Price
Jiaxing City Qunbang Hardware Co., Ltd.- Standard Or Nonstandard：Standard
- Shaft Hole：as Your Requirement
- Torque：as Your Requirement
- Bore Diameter：as Your Requirement
- Speed：as Your Requirement
- Structure：Flexible
Base Info
- Model NO.：JS
- Material：45#Steel
- Type：Elastic Coupling
- Delivery Time：Deoend on Your Quantity
- Transport Package：Depend on Your Quantity
- Specification：as your requirement
- Trademark：Huading
- Origin：China
- HS Code：84836000
- Production Capacity：5000pieces,Year
Description
ModelNominal
Torque
Nm Speed
r/min Y,Z Bore
d1,d2 D B A E N L M P J Clearance (K) Oil injection
Kg No bore mass
Kg Max Min Min Standard Max JS702 125 10000 35 14 120 107 50 80 80 52 78 27 50 1.5 3 5 0.03 8 JS704 400 9000 48 14 160 127 65 105 105 62 95 36 60 1.5 3 5 0.03 11 JS706 900 8200 65 19 185 167 90 125 130 82 105 50 65 1.5 3 5 0.06 12 JS707 1800 7100 75 28 218 228 105 150 156 112 135 52 86 1.5 4 6.5 0.06 15 JS708 3150 6000 85 28 245 228 125 180 175 112 145 58 92 1.5 4 6.5 0.09 20 JS709 5600 4900 100 42 286 290 140 210 208 142 180 70 118 1.5 6 10 0.09 25 JS710 8000 4500 110 42 325 290 160 245 230 142 190 74 125 1.5 6 10 0.17 33 JS711 12500 4000 125 60 330 290 180 180 258 142 220 85 150 1.5 6 13 0.26 57 JS712 18000 3600 150 70 365 351 220 220 295 172 225 95 150 1.5 6 13 0.43 80 JS713 26000 3300 180 70 420 351 255 255 335 172 235 115 156 1.5 6 13 0.51 97
♦Product Show
♦Other Products List
♦Our Company
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.
♦Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping
3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.
4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.
5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.
♦FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.
Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.
Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.
Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.
Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.
Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.
Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Q 9: What's your payment?
A:1) T/T. 2) L/C
♦Contact Us
Web: huadingcoupling.en.made-in-china.com
Add: No.1 Fuyang Road,Chengnan park,Jingjiang City,Jiangsu Province,China
Torque
Nm
r/min
d1,d2
Kg
Kg
♦Product Show
♦Other Products List
| Transmission Machinery Parts Name | Model |
| Universal Coupling | WS,WSD,WSP |
| Cardan Shaft | SWC,SWP,SWZ |
| Tooth Coupling | CL,CLZ,GCLD,GIICL, GICL,NGCL,GGCL,GCLK |
| Disc Coupling | JMI,JMIJ,JMII,JMIIJ |
| High Flexible Coupling | LM |
| Chain Coupling | GL |
| Jaw Coupling | LT |
| Grid Coupling | JS |
