B/X Series Cycloidal Pinwheel Planetary Gearbox for Belt Conveyor

Dongguan Hongshun Furniture Accessories Co., Ltd.
  • Application：Machinery, Industry
  • Hardness：Soft Tooth Surface
  • Installation：Horizontal Type
  • Layout：Cycloidal
  • Gear Shape：Bevel Gear
  • Step：Single-Step

Base Info

  • Model NO.：BWD
  • Type：Circular Gear
  • Single-Stage Transmission Ratio：7 - 87
  • Twin-Stage Transmission Ratio：99 - 7569
  • Combination of Multi-Stage Transmission：8041 - 658503
  • Single-Stage Transmission Efficiency：0.85
  • Win-Stage Transmission Efficiency：0.72
  • Material：Cast Iron
  • Manipulate Way：Robotics
  • Manufacturing Method：Cast Gear
  • Toothed Portion Shape：Planetary
  • Changes Way：Planetary
  • Transport Package：Plywood
  • Origin：Jiangsu
  • HS Code：8483409000
  • Production Capacity：200000set,Year

Description

ModelPower P(kW)ratio
(i)Rotate speed
N(RPM)Output torque
 T (N. m)09#-9#0.12 - 907 -65000017-155top to 30000
B/X Series Cycloidal Pinwheel Planetary Gearbox for Belt Conveyor

Features

- Highly Standard Modular Designed
-  Quality material ensures the product reliability
-  High Strength,Compact Dimension
-  Long Service Life
-  Low Noise
-  High Efficiency
-  Large radial loading ability
-  Axial load ability of up to 5% of radial load

Application examples

-  Belt conveyor drives
-  Bucket elevator drives
-  Agitator drives
-  Hoisting gear drives
-  Travelling gear drives
-  Paper machine drives
-  Dryer drives
-  Water screw drives

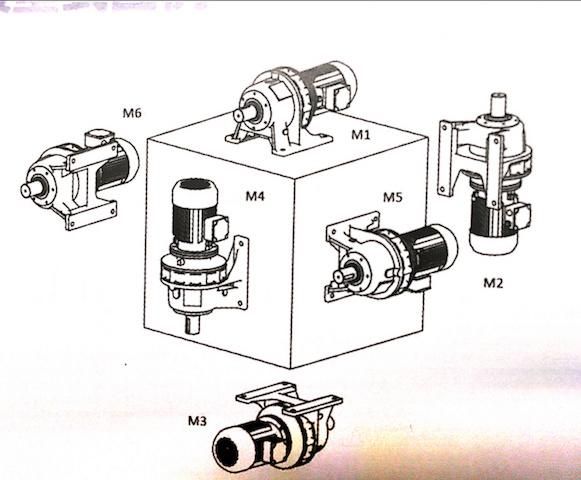

Installation
B/X Series Cycloidal Pinwheel Planetary Gearbox for Belt Conveyor

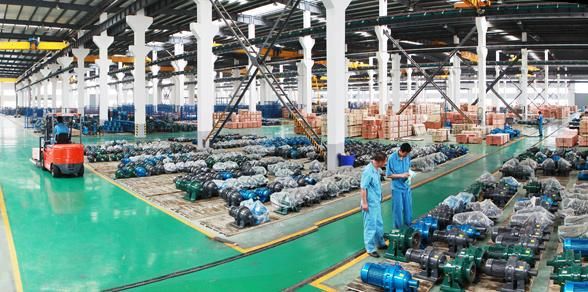

Plant
B/X Series Cycloidal Pinwheel Planetary Gearbox for Belt Conveyor
B/X Series Cycloidal Pinwheel Planetary Gearbox for Belt Conveyor
Office Block
B/X Series Cycloidal Pinwheel Planetary Gearbox for Belt Conveyor
Team
