Brightness Traffic Various Message Signs P16 Outdoor LED Display Guidance
Tenda Enterprise Holdings Co., Limited- Tube Chip Color：Dual-color
- IP Rating：IP65
- Pixel Pitch：16mm
- Pixel Configuration：2r1g
- Display Function：Image & Text Display, Text Display, Traffic Sign
- Average Power Consumption：100W,Sqm
Base Info
- Model NO.：VMS P16
- Pixel Density：3906 Dots,Sqm
- Scanning Mode：Static Scan
- Display Type：Traffic Sign
- Application：Traffic
- Certification：CE, RoHS, FCC
- Module Resolution：16*8
- Brightness：Above 8000CD,Sqm
- Gray Scale：Red Green 256 Grade
- Viewing Angle：Above 70,35 Degree
- LED Type：346DIP
- Transport Package：Carton, Wooden Carton, Flight Case
- Specification：256x128mm
- Trademark：Seekstarled
- Origin：China
- HS Code：8528591090
- Production Capacity：1000 Sqm,Month
Description
Traffic Guidance Outdoor LED DisplayItem P8 P10 P16 P20 P25 P31.25 Piexl Pitch 8mm 10mm 16mm 20mm 25mm 31.25mm LED Type LED 346DIP 346DIP 346DIP Ø5 Ø5 Ø5 Life 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours Configuration 2R1G 2R1G 2R1G 2R1G 2R1G 2R1G Module Size 256x128 320x160 256*128 320x160 200x200 250x125 Module Resolution 32*16 32*16 16*8 16*8 8*8 8*4 Pixels Density (dots) 15625 10000 3906 2500 1600 1024 Brightness (cd/sqm) ≥8000 ≥8000 ≥8000 ≥8000 ≥8000 ≥8000 Brightness Adjustment 32 / 256 32 / 256 32 / 256 32 / 256 32 / 256 32 / 256 Scan Mode 1/4scan 1/4scan static static 1/4scan 1/4scan View Angle ≥70° / 35° ≥70° / 35° ≥70° / 35° ≥30° / 30° ≥70° / 35° ≥70° / 35° Viewing Distance 10-100m 10-100m 10-100m 10-100m 10-100m 10-100m Brightness Control Red, Green 256 Grade / each Red, Green 256 Grade / each Red, Green 256 Grade / each Red, Green 256 Grade / each Red, Green 256 Grade / each Red, Green 256 Grade / each Power Supply 12-24V / 220V 12-24V / 220V 12-24V / 220V 12-24V / 220V 12-24V / 220V 12-24V / 220V Max. Power (W/sqm) 300 300 200 200 200 200 Ave. Power (W/sqm) 100 100 70 70 70 70 Protective Grade IP65 IP65 IP65 IP65 IP65 IP65 Working Temperature -25ºC ~ +60ºC -25ºC ~ +60ºC -25ºC ~ +60ºC -25ºC ~ +60ºC -25ºC ~ +60ºC -25ºC ~ +60ºC Working Humidity 10% - 95% 10% - 95% 10% - 95% 10% - 95% 10% - 95% 10% - 95% Cabinet Size 1024*768 960*960 1024*768 960*960 800*800 1000*1000 Cabinet Material Iron Iron Iron Iron Iron Iron Cabinet Weight 48kg 50kg 48kg 50kg 48kg 48kg Control Mode Asynchronous Control Mode Asynchronous Control Mode Asynchronous Control Mode Asynchronous Control Mode Asynchronous Control Mode Asynchronous Control Mode
Features:
1. LED induction screen is designed with double-layer box board, which has good heat dissipation and high reliability.
2. The use of full plastic modular structure, high protection grade, more durable, more reliable products;
3. Adopt parallel current equalization, energy-saving and efficient power supply, support N+1 power backup, further improve reliability;
4. Non-traditional signal transmission technology is adopted to reduce failure rate and improve communication reliability.
5. Each display module of LED induction screen is equipped with intelligent processing chip, which can operate independently and feedback fault independently, making it safe and reliable to use;
6. LED induction screen adopts Linux operating system controller based on ARM, no crash risk, ensure communication security;
7. Intelligent control system, support real-time fault monitoring, monitoring center can master the operation of information board at any time, to ensure road traffic safety;
8. Support four primary colors randomly matched display, highlighting, high transparency.
9. Exquisite structure design, each luminous pixel luminous uniform, no Mosaic phenomenon;
10. Support manual and automatic schedule intelligent brightness adjustment.

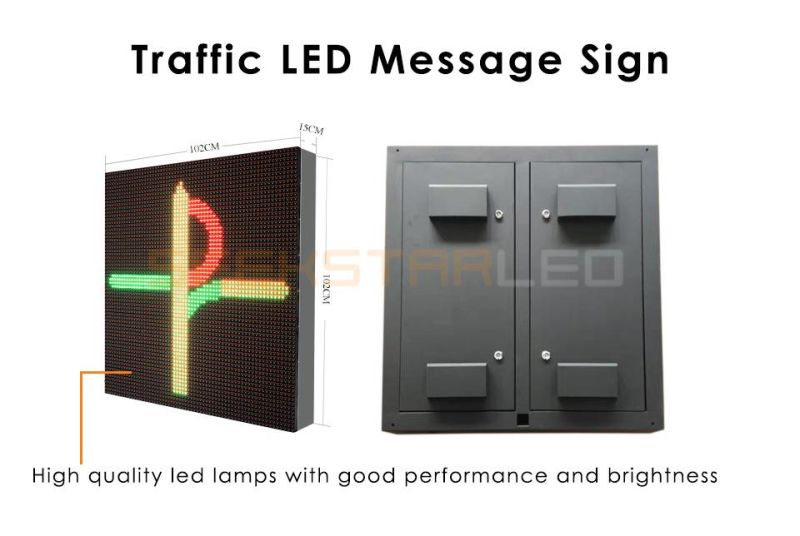

Cabinet Details:
Cabinet Installation:
Application:

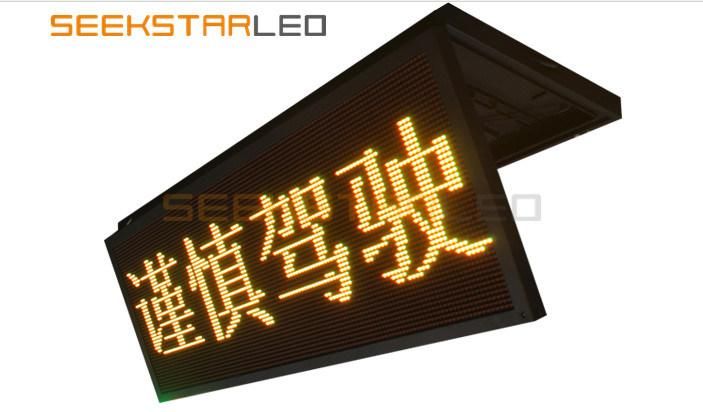

It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.
About US:
Features:
1. LED induction screen is designed with double-layer box board, which has good heat dissipation and high reliability.
2. The use of full plastic modular structure, high protection grade, more durable, more reliable products;
3. Adopt parallel current equalization, energy-saving and efficient power supply, support N+1 power backup, further improve reliability;
4. Non-traditional signal transmission technology is adopted to reduce failure rate and improve communication reliability.
5. Each display module of LED induction screen is equipped with intelligent processing chip, which can operate independently and feedback fault independently, making it safe and reliable to use;
6. LED induction screen adopts Linux operating system controller based on ARM, no crash risk, ensure communication security;
7. Intelligent control system, support real-time fault monitoring, monitoring center can master the operation of information board at any time, to ensure road traffic safety;
8. Support four primary colors randomly matched display, highlighting, high transparency.
9. Exquisite structure design, each luminous pixel luminous uniform, no Mosaic phenomenon;
10. Support manual and automatic schedule intelligent brightness adjustment.
Cabinet Details:Cabinet Installation:Application:
It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.
