Auto Spray Painting Room Booth with Gas/Oil/Diesel/Waster Oil Burner Electric Heater
Yumyth Electronic Tech Co., Limited- After-sales Service：Available
- Warranty：12month
- Type：Auto Paint Spray Booth
- Certification：CE, ISO, SGS
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55A
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Steam
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：5rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Related Product 1：Tire Changer
- Related Product 2：Wheel Balancer
- Related Product 3：Car Lift
- Related Product 4：Auto Winch for Towing
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Steam Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 5rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Related Product 1 Tire Changer Related Product 2 Wheel Balancer Related Product 3 Car Lift Related Product 4 Auto Winch for Towing Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Auto Spray Painting Booth room with gas/oil/diesel/waster oil burner electric heater1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Auto Spray Painting Booth room with gas/oil/diesel/waster oil burner electric heater
| Model | HY-CB55A |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <15kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates. |
| Intake | Two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(GAS) | Italy Riello FS10/FS20 gas burner, one-stage oil burner/electricity for option. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

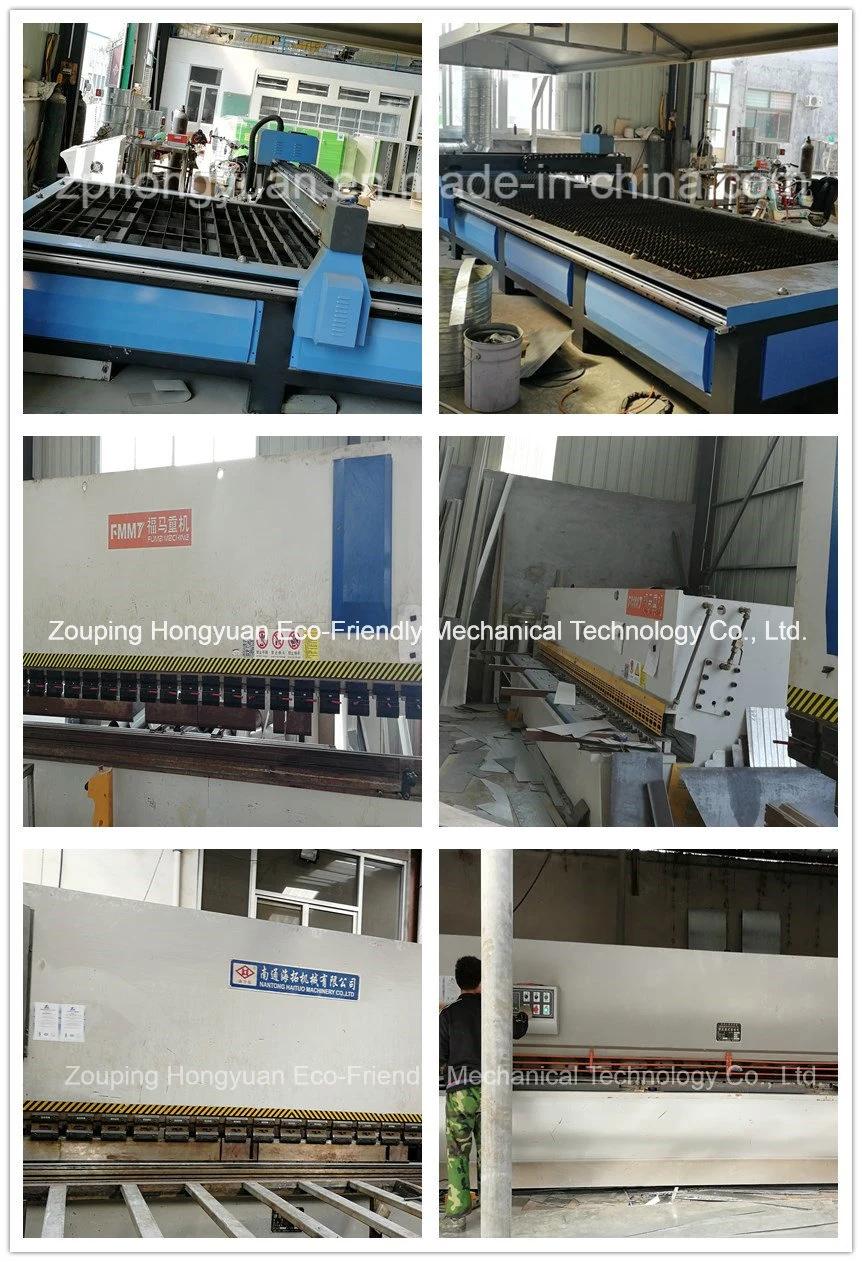

Production area and equipment for Auto Spray Painting Booth room with gas/oil/diesel/waster oil burner electric heater

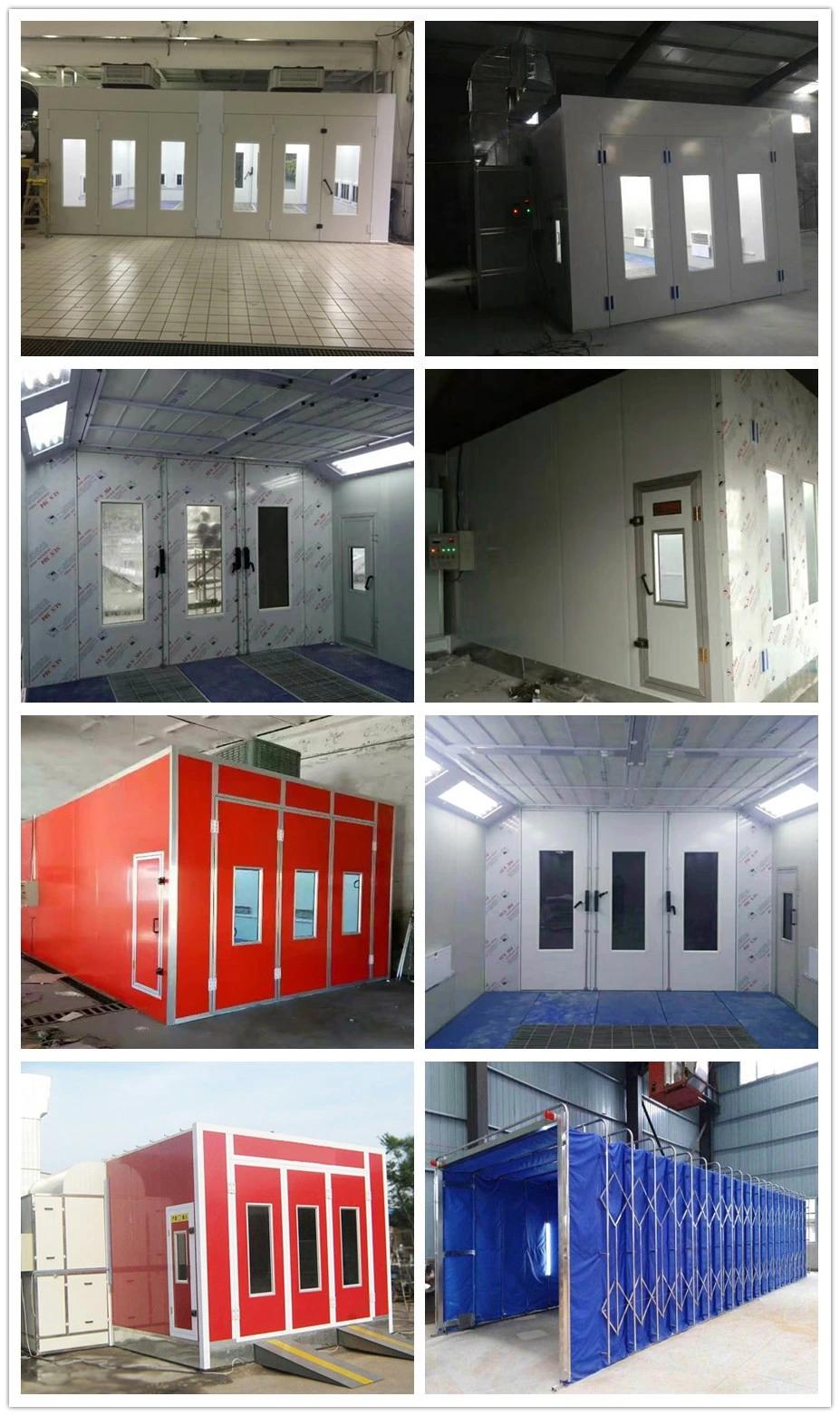

Project case for paint booth
Package Show of Auto Spray Painting Booth room with gas/oil/diesel/waster oil burner electric heater
Certificate of our product and company
Our Team is serving you at any time
Send us an inquiry about Auto Spray Painting Booth room with gas/oil/diesel/waster oil burner electric heater
