Ek Support Unit for Ball Screws

L-Max Technology (Shenzhen) Limited
  • Customized：Customized
  • Certification：ISO
  • Standard Parts：Yes
  • Universal：Yes
  • Applications：Light Load Applications
  • Bearings：High Accuracy, High Stiffness

Base Info

  • Model NO.：SWT,EK
  • Surface：Anti Rust
  • Shape：Square
  • Mounting Method：with Chamfer Mounting
  • Transport Package：Carton Box
  • Specification：10-20
  • Trademark：Swift
  • Origin：China
  • HS Code：8483200000
  • Production Capacity：5000,Month

Description

Basic Info.

Model NO. SWT/EK Surface Anti Rust Shape Square Mounting Method with Chamfer Mounting Transport Package Carton Box Specification 10-20 Trademark Swift Origin China HS Code 8483200000 Production Capacity 5000/Month

Product Description

Swift provides diverse support units with both fixed side and support side for the ball screws. Our support units could be applied in light load and small equipment as well as heavy load and machine tools. Thanks to the compact size, the units are easy to be installed in tight or narrow space. Our AK/FK/BK/EK models are used in the fixed-side of the ball screw shaft and AF/FF/BF/EF models are used in the support end in light load applications. The WBK models are used in heavy load applications where high axial thrust force and stiffness is required.

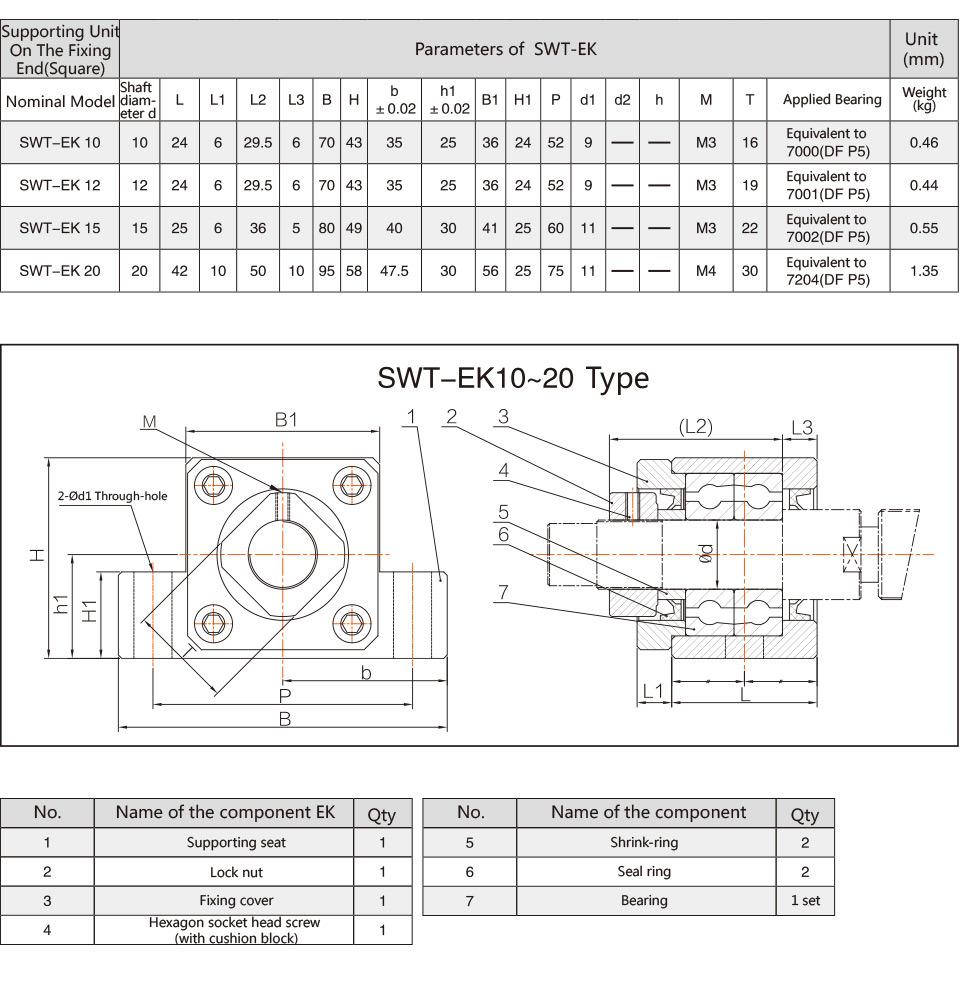

Ek Support Unit for Ball Screws
