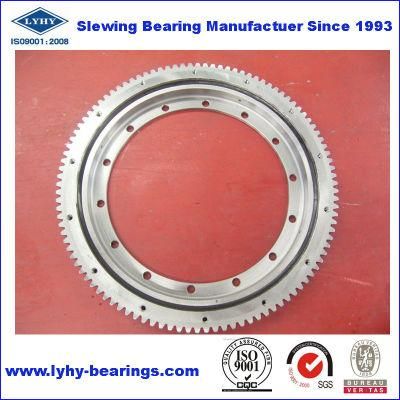

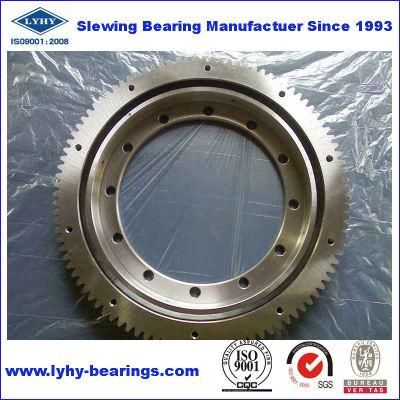

Large Diameter Slewing Ring Slewing Ring Bearing for Offshore Crane
Right Team Holding Ltd.- Standard or Nonstandard：Standard
- Sealing Gland：Sealed On Both Sides
- Rolling-Element Number：Single-Row
- Roller Type：Four Point Contact Ball
- Material：50mn or 42CrMo
- Type：External Gear
Base Info
- Model NO.：1787,2650G2
- Production Experience：Since Year 1993
- Warranty Period：1 Year
- Delivery Time：30-40 Days
- Bore Diameter：2650mm
- Outer Diameter：2949.6mm
- Height：100mm
- Weight：751kg
- Certificate：ISO9001:2008
- Testing Way：Inner House ,SGS, BV
- Surface Treatment：Black Epoxy Paint
- Transport Package：Wooden Box
- Specification：200mm-6600mm
- Trademark：LYHY
- Origin：China
- HS Code：848210900
- Production Capacity：300PCS,Month
Description
ModelDimension Mounting dimension Structure dimension Gear parameter Rated Load Weight (kg) D d H D1(mm) D2 n1 n2 φ1(mm) φ2(mm) D3 (mm) d1 (mm) H1 (mm) h n3 (mm) φ3(mm) m Da (mm) Z b(mm) x Internal Gear 2788/850K 976 850 80 -- -- -- -- -- -- 916 919 80 -- -- -- 2 816 456 20 0 174 117 3-646G2 1200 -- 56 1170 1044 16 24 17.5 10.5 1088 1092 46 12 4 M8*1 6 985 166 44 0 210 84.1 2782/1000GK 1270 1000 100 1220 1050 24/2*2 24/2*2 17/M12 17/M12 1133 1137 85 15 2 M10*1 6 972.6 164 70 0 384 322 2787/1210G2 1530 1210 122 1480 1260 40 40 26 26 1368 1372 108 12 4 M10*1 10 1164 118 80 0 713 540 2787/1400GK 1715 1400 110 1660 1460 24 24 M20 M20 1558 1562 95 15 2 M12*1.25 6 1364.5 230 77 -0 365 545 2787/1400GK1 1715 1400 110 1660 1460 24 24 23 23 1558 1562 95 15 2 M10*1 6 1364.5 230 77 -0 365 545 2787/1440 1780 1440 100 1730 1494 48 48 22 M20 1618 1622 85 10 4 M12*1.25 8 1400 177 50 0 503 554 2787/1440G 1780 1440 100 1730 1494 48 48 22 M20 1618 1622 85 10 4 M12*1.25 8 1400 177 50 0 578 554 2768/1440G 1780 1440 104 1730 1494 48 48 22 M20 1613 1627 87 10 6 M12*1.25 8 1400 177 52 0 578 555 2787/1525G2 1875 1525 140 1815 1585 42 42 29 29 1698 1702 122 17 4 M12*1.25 16 1452.3 92 110 0.4 873 1019 2788/1712 2050 1790 112 2006 1847 36 72 22 22 1925 1926 92 12 18 M10*1 16 1712 108 100 -1 604 663 2789/2230 2488 2230 160 2445 2275 48 48 M20 M22 2337.5 2342.5 135 5 8 ZG1/4in 18 2144.3 121 145 0 1247 1114 2789/2240G2 2500 2240 140 2454 2280 56 56 M24 M24 2357.5 2362.5 115 5 8 M14*1.5 18 2145.6 121 125 0 856 1161 2789/2735 2990 2735 160 2954 2770 48 48 M20 M24 2835 2845 135 5 8 ZG1/4in 22 2624.6 121 144 0 1559 1457 External Gear D178794 694 470 77 630 500 18 18 M16 18 567.5 564.5 64 13 6 M10*1 6 696 114 60 0 157 93.1 1787/600G 786 600 72 740 636 20 24 M18*2.5 19 689 691 60 7 4 ZG1/8in 6 789 131 50 0 107 94.1 1787/674G2 853 674 70 825 709 34 23 20 M20 764 768 59 10 2 ZG1/8in 7 889 125 50 0 183 89 1787/674G2K 853 674 70 825 709 34 24 18 18 764 768 59 10 2 ZG1/8in 7 889 125 50 0 183 88.6 1787/710G2 894 710 67 845 744 8 8 M10 M10 798 806 58 9 3 M10*1 6 924 152 55 0 179 107 1787/710G2K 894 710 67 875 760 8 12 M10 M12 798 806 58 9 3 M10*1 6 924 152 55 0 179 107 1787/710G2K1 894 710 67 865 744 20 20 13 13 798 806 58 9 4 M10*1 6 924 152 55 0 179 107 1787/800G 1050 800 90 1012 838 30 30 20 20 923 927 76 16 3 M10*1 6 1092 180 60 0 215 217 1787/800GK 1050 800 90 1012 838 30 30 20 20 923 927 76 16 3 M10*1 6 1092 180 60 0 215 217 1788/1040G2 -- 1040 80 1220 1080 30 30 M16 17.5 1153 1157 70 10 -- -- 10 1314.1 125 70 0 297 251 1787/1060G 1335 1060 109 1295 1105 24 24 M20 22 1198 1202 100 9 4 M8*1 10 1388 138 80 -1 501 407 1787/1075 1365 1075 120 1310 1130 36 36 26 26 1218 1222 105 15 4 M8*1 8 1424 176 90 0 463 463 1787/1075K 1365 1075 130 1310 1130 36 36 24 24 1218 1222 105 10 -- -- 10 1420 140 120 0 463 550 1787/1075G2 1365 1075 120 1310 1130 36 36 24 24 1218 1222 105 15 4 M10*1 10 1424.9 138 90 1.4 463 463 1787/1075G2K 1365 1075 120 1310 1130 36 36 M24 26 1218 1222 105 15 4 M8*1 8 1424 176 90 0 463 463 1787/1330G2 1475 1330 82 1510 1362 24 24 18.5 18.5 1439 1445 70 12.4 6 M10*1 9 1584 174 70 0 353 280 3-647G 1407 1352 100 1370 1404 18 13 M8 M10 1390 1394 63 -- 8 6 5 1449 320 60 0 216 143 1788/1410G2 -- 1410 85 1590 1454 36 36 M16 17.5 1524.6 1528.6 70 15 -- -- 10 1676.4 160 70 0 395 312 1787/1640G 2050 1640 160 1990 1710 30 30 28 28 1844 1856 140 20 2 M14*1.5 10 2108 210 105 -1 1118 1264 1787/1700 1945 1700 120 1900 1750 24 24 M18 21 1825 1845 110 10 4 M10*1 5 1970 392 35 0 405 516 1789/1700GM 2052 1700 100 1980 1780 24 24 20 M18 1878 1882 90 10 4 M14*1.5 5 2080 414 50 0 551 678 1787/2650G2 2885 2650 100 2850 2700 48 48 M20 M20 2777 2781 80 10 6 ZG1/4in 12 2949.6 244 80 0 913 751
Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings
Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV
Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.
Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.
Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.
Q: Is sample available?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
