• Model NO.：WLD8200
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Internal Size：6.9X3.9X2.8m
• External Size：7X5.45X3.48m
• Air Flow：24000 M³,H
• Air Speed：0.3~0.5m,S
• Power：16kw
• Heating Type：Diesel, Infrared Lamp, Natural Gas, LPG
• Application：Car, SUV Water Based Painting and Baking
• Light：Ceiling & Side
• Filters：High Efficiency Filter
• Wall Panel：EPS, Rock and PU for Optional
• Color：White,Orange,Red,Blue
• Basement Height：300mm
• Fan Type：Centrifugal Fan
• Voltage：380,415,220V,3p,50Hz,60Hz
• Certificate：CE
• Transport Package：Polyfoam
• Specification：Standard Type
• Trademark：WLD
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：2, 000 PCS,Year

Basic Info.

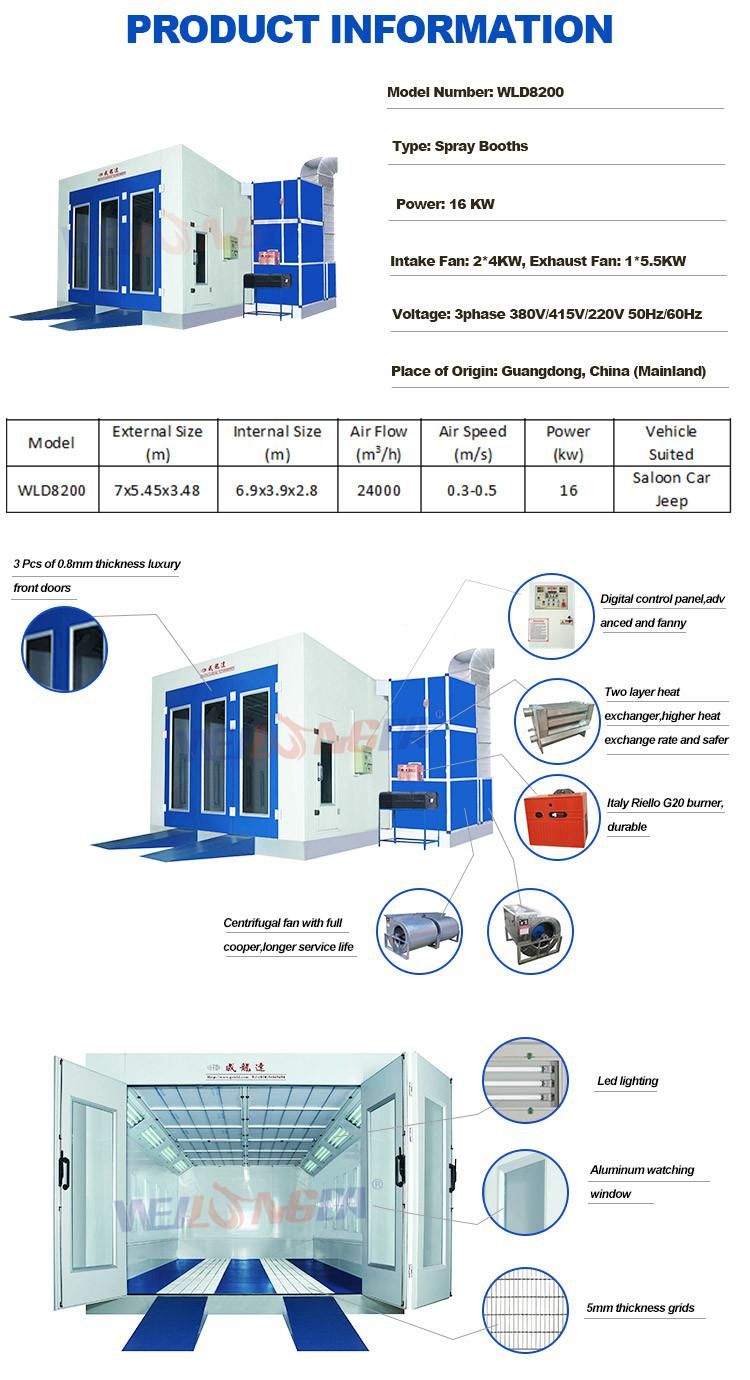

Model NO. WLD8200 Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Internal Size 6.9X3.9X2.8m External Size 7X5.45X3.48m Air Flow 24000 M³/H Air Speed 0.3~0.5m/S Power 16kw Heating Type Diesel, Infrared Lamp, Natural Gas, LPG Application Car, SUV Water Based Painting and Baking Light Ceiling & Side Filters High Efficiency Filter Wall Panel EPS, Rock and PU for Optional Color White,Orange,Red,Blue Basement Height 300mm Fan Type Centrifugal Fan Voltage 380/415/220V/3p/50Hz/60Hz Certificate CE Transport Package Polyfoam Specification Standard Type Trademark WLD Origin Guangzhou, China HS Code 8419899090 Production Capacity 2, 000 PCS/Year

Product Description

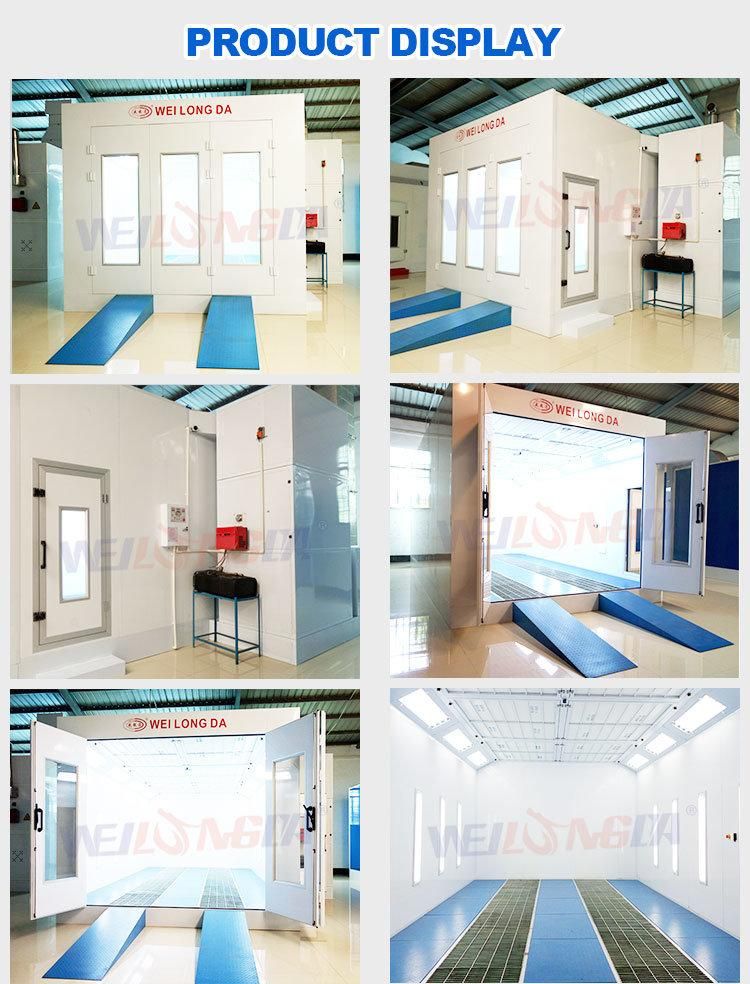

Wld8200 High Quality Paint Booths/Spray Booths/Car Baking Oven/Car Spraying Oven/Car Painting Oven/Car Painting Cabin/Car Painting Room/Car Painting Chamber For Sale

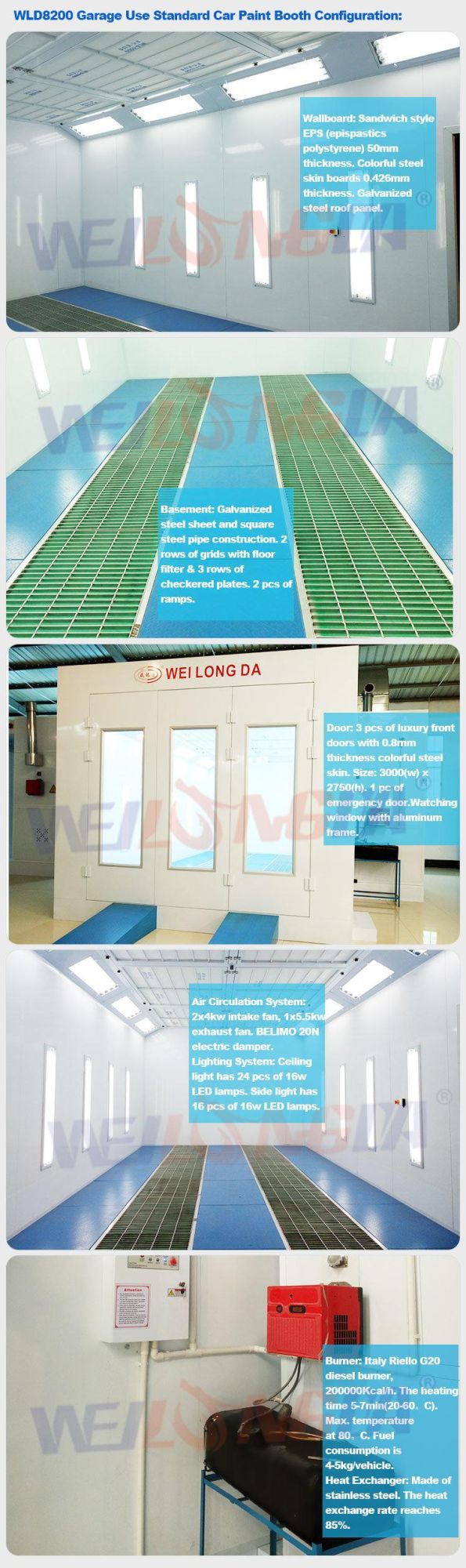

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof pane
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
Doors: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.
Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.
Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kgehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Multi-layer fiberglass filter.
