P12 Super-Light Outdoor Advertising LED Display Sign
Emoer Industry Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：12mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：25W
Base Info
- Model NO.：p12
- Pixel Density：6944 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, CCC
- Deliver Time：15-20 Days
- Warranty Period：2years
- Drive Type：Constant Drive
- Package Mode：546
- Modle Size：192mm*192mm
- Life Span：100000 Hours
- Brightness：6500
- Transport Package：Carton Box
- Specification：640mm*340mm*350mm
- Trademark：FWS
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：2500square Foot,Square Feet Per Month
Description

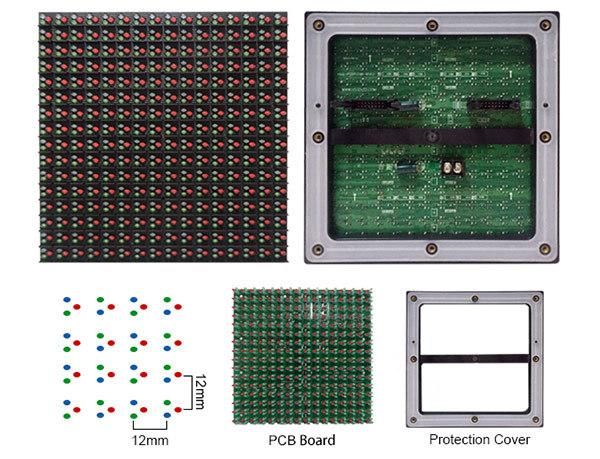

P12 Outdoor full Color LED Screen SpecificationPixel pitch12mmPixel Configuration1R1G1BLED componentDIP 546Size of module192mm x 192mmResolution of module16x16Resolution of cabinet96x80Material of CabinetIron with back doorsWeight of Cabinet<70KGSBrightness>7500cd/sq.mDensity6944dots/sq.mBest viewing angle110 /50Best viewing distance10-150MMaximum power consumption<800W/sq.mAverage power consumption<300W/sq.mDriving method1/4 scanControl methodSynchronization/AsynchronizationColors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1800HzIP gradeIP65Life Span100,000 hoursEffectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary developmentLED Module
