Tapered Taper Roller Bearing for Boat Crane Excavator Truck Wheel Hub Gear Auto Motorcycle Spare Parts Industrial Equipment Reducer Mine Agricultural Machinery
Hongyu Plastic String Factory Co., Limited- The Number of Rows：Single
- Outer Dimension：Medium and Large(120-190mm)
Base Info
- Model NO.：30202 30203 30204 30205 30206 30207 30208 30209
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Axial Bearing
- Separated：Separated
- Precision：ABEC-1, ABEC-3, ABEC-5, ABEC-7
- Tolerance：P0, P6, P5, P4
- Feature：High Precision, High Speed, Long Life
- Application：Automobile Front Rear Wheel Transmission Reducer
- Model：30302 30303 30304 30305 30306 30307 30308 30309
- Bearing Number：Lm11749,Lm11710 Lm11949,Lm11910 L44643,L44610
- Bearing No.：L44649,L44610 L45449,L45410 L68149,L68110
- Transport Package：Box, Carton, Pallet
- Specification：Standard or customized
- Trademark：Neutral,no mark or OEM
- Origin：China
- HS Code：8482200000
- Production Capacity：500000
- Package size per unit product：10.00cm * 10.00cm * 10.00cm
- Gross weight per unit product：1.000kg
Description
Product NumberBore Dia Outer Dia Inner Width Outer Width Width (d) (D) (Bi) (Bo) (B) 11590/11520 0.625 1.6875 0.5625 0.375 0.5625 3062/3162 0.625 1.625 0.578 0.4375 0.5625 LM11749/LM11710 0.6875 1.57 0.575 0.42 0.545 21075/21212 0.75 2.125 0.8598 0.625 0.875 9067/9194 0.75 1.938 0.75 0.6875 0.9063 9074/9195 0.75 1.938 0.848 0.5625 0.7813 A6075/A6157 0.75 1.5745 0.4391 0.375 0.473 LM11949/LM11910 0.75 1.781 0.655 0.475 0.61 9081/9196 0.812 1.938 0.848 0.6875 0.9363 M12649/M12610 0.8437 1.9687 0.72 0.55 0.69 LM12749A/LM12711 0.8661 1.811 0.655 0.475 0.61 LM12749/LM12710 0.8661 1.781 0.655 0.475 0.61 1380/1328 0.875 2.0625 0.794 0.5625 0.9125 1755/1729 0.875 2.24 0.781 0.625 0.7632 M12648/M12610 0.875 1.9687 0.72 0.55 0.69 3659/3620 0.9375 2.4375 1.1975 0.9375 1.125 7097/7196 0.9843 1.9687 0.5614 0.375 0.549 07100S/7204 1 2.047 0.5614 0.5 0.591 15100/15243 1 2.4375 0.8125 0.5625 0.75 15101/15244 1 0.4409 0.8125 0.625 0.8125 L44643/L44610 1 1.98 0.58 0.42 0.56 M84249/M84210 1 2.3437 0.91 0.72 0.92 M84548/M84510 1 2.25 0.765 0.58 0.765 15103S/15345 1.03 2.4409 0.785 0.5625 0.75 15106/15345 1.0625 2.4409 0.8125 0.5625 0.75 L44649/L44610 1.0625 1.9800 0.58 0.42 0.56 J15585/15520 1.1024 2.25 0.6875 0.549 0.6875 15113/15345 1.125 2.4409 0.8125 0.5625 0.75 15590/15520 1.125 2.25 0.6875 0.549 0.6875 1988/1922 1.125 2.25 0.762 0.625 0.7813 L45449/L45410 1.1417 1.98 0.58 0.42 0.56 M86649/M86610 1.1875 2.5312 0.8438 0.6563 0.9619 14124/14274 1.25 2.717 0.771 0.625 0.7813 14125A/1426 1.25 2.717 0.771 0.625 0.7813 15123/15250 1.25 2.5 0.75 0.625 0.8125 15125/15250X 1.25 2.5 0.8125 0.625 0.8125 15126/15250X 1.25 2.5 0.8125 0.625 0.8125 2580/2520 1.25 2.615 0.9983 0.8125 1 2582/2523 1.25 2.7500 0.9983 0.75 0.9375 HM88542/HM88510 1.25 2.875 1.0938 0.9063 1.1563 LM67047/LM67010 1.25 2.3280 0.66 0.465 0.625 LM67048/LM67011 1.25 2.328 0.66 0.54 0.7 LM67049A/67920 1.25 11.125 0.66 1.4375 1.8125 LM67049/67920 1.25 11.1250 0.66 1.4375 1.8125 2785/2733 1.3125 2.963 1.01 0.75 0.9375 2790/2733 1.3125 2.963 1.01 0.75 0.9375 BM89443/HM89410 1.3125 3 1.125 0.9063 1.1563 M88047/M88010 1.3125 2.6875 0.875 0.6875 0.875 M88048/M88011 1.3125 2.6875 0.875 0.6875 0.875 14137A/14277 1.375 2.717 0.771 0.725 0.8813 14138A/14277 1.375 2.717 0.771 0.725 0.8813 16137/16282 1.375 2.8346 0.8125 0.5707 0.748 25877/25820 1.375 2.875 0.9688 0.75 0.9375 25878/25821 1.375 2.875 0.9688 0.75 0.9375 2796/2733 1.375 0.963 1.01 0.75 0.9375 3379/3320 1.375 3.1562 1.1965 0.9375 1.1563 3872A/3821 1.375 3.375 1.1875 0.9375 1.1875 3872/3820 1.375 3.375 1.1875 0.9375 1.1875 BM89446/HM89410 1.375 3 1.125 0.9063 1.1563 HM88649A/HM88610 2 1.375 2.8438 1 0.7812 1 HM88649/JM88610 1.375 2.8438 1 0.7812 1 LM48548A/LM48511A 1.375 2.5625 0.72 0.67 0.83 LM48548/LM48510 1.375 2.5625 0.72 0.55 0.71 JL68145/JL6811Z 1.378 2.3622 0.7288 0.47 0.625 L68149/L68110 1.378 2.328 0.66 0.47 0.625 L68149/L68111 1.378 2.3622 0.66 0.47 0.625 LM78349/LM78310A 1.378 2.4409 0.6693 0.5354 0.6575 25880/25821 1.4365 2.8750 0.9688 0.75 0.9375 2780/2729 1.4365 3 1.01 0.75 0.9375 2794/2733 1.4365 2.963 1.01 0.75 0.9375 25570/25519 1.4375 3.25 1.01 0.75 0.9375 26877/26820 1.4375 3.1955 1 0.8125 1 3878A/3821 1.4375 3.375 1.1875 0.9375 1.1875 3878/3821 1.4375 3.375 1.1875 0.9375 1.1875 HM89448/HM89410 1.4375 3 1.125 0.9063 1.1563 HM89449/HM89410 1.4375 3 1.125 0.9063 1.1563 JL69349/JL69310 1.4961 2.4803 0.6693 0.5315 0.6693 13686/13620 1.5 2.717 1.0313 0.5983 0.75 16150/JL6285 1.5 2.8352 0.8125 0.655 0.8425 25572/25520 1.5 3.265 1 0.75 0.9375 2776/2720 1.5 3.0000 1.01 0.75 0.9375 2788/2733 1.5 2.9630 1.01 0.75 0.9375 3490/3420 1.5 3.125 1.1721 0.9375 1.1563 3580/3525 1.5 3.43475 1.216 0.9375 1.1875 57410S/LM29710S 1.5 2.5625 0.8322 0.55 0.71 HM801346X/HM801310 1.5 3.25 1.125 0.9063 1.1524 HM801346/HM801310 1.5 3.25 1.125 0.9063 1.1524 LM29748/LM29710 1.5 2.5625 0.72 0.55 0.71 LM29749/LM29711 1.5 2.5625 0.72 0.62 0.78 JL6154/JL6285 1.5354 2.8352 0.8125 0.655 0.8425 57414/LM300811 1.6142 2.6772 0.7087 0.5315 0.689 LM300849/LM300811 1.6142 2.6772 0.7087 0.5315 0.689 11162/11300 1.625 3 0.6845 0.5625 0.709 18590/18520 1.625 2.875 0.6875 0.5 0.6562 24780/24720 1.625 3 0.9063 0.6875 0.875 24780/24721 1.625 3 0.9063 0.8125 1 26882/26823 1.625 3 1 0.8125 1 3576/3520 1.625 3.3125 1.216 0.9375 1.1875 HM803146/HM803110 1.625 3.5 1.1563 0.9063 1.1875 LM501349/LM501310 1.625 2.891 0.78 0.58 0.77 LM501349/LM501314 1.625 2.891 0.78 0.6537 0.8437 M802048/M802011 1.625 3.25 1.01 0.795 1.045 12168/12303 1.6875 3.0312 0.675 0.4688 0.6875 25577/25521 1.688 1.688 1 0.75 0.9375 12175/12303 1.75 3.0312 0.675 0.4688 0.6875 25580/25522 1.75 3.27 1 0.7525 0.94 25581/25523 1.75 3.265 1 0.875 1.0625 25582/25523 1.75 3.265 1 0.875 1.0625 3782/3730 1.75 3.6718 1.193 0.9375 1.1875 535/532A 1.75 4.375 1.455 1.1875 1.5 535/532X 1.75 4.25 1.455 1.125 1.4375 HM803149/HM803110 1.75 3.5 1.1563 0.9063 1.1875 37763727 1.771 3.6875 1.193 0.9375 1.1875 1788717831 1.7807 3.149 0.8125 0.5937 0.7812 LM603049A/LM603012 1.7812 3.0625 0.7812 0.6562 0.8437 LM603049A/LM603014 1.7812 3.1496 0.7812 0.5937 0.7812 LM603049/LM603011 1.7812 3.0625 0.7812 0.594 0.7812 LM102949/LM102910 1.7812 2.891 0.78 0.62 0.77 LM102949/LM102911 1.7812 2.891 0.78 0.6937 0.8437 25590/25523 1.796 3.265 1 0.875 1.0625 72187/72487 1.875 4.875 1.291 1 1.4375 3781/3730 1.9375 3.6718 1.193 0.9375 1.1875 385/382 1.9685 3.875 0.864 0.7018 0.8268 JLMI04947A/JLMI04910 1.9685 3.2283 0.875 0.6693 0.8652 JMI04948/LMI04911 1.9685 3.25 0.8465 0.65 0.85 RI01204/72487 1.9685 4.875 1.291 1 1.4375 28580/28521 2 3.625 1 0.7813 0.9688 28678/28622b 2 3.8437 0.9688 0.7656 0.9688 33889/33821 2 3.75 1.125 0.875 1.0938 368a/362a 2 3.5 0.875 0.6501 0.8125 368/362 2 3.5433 0.875 0.625 0.7874 3775/3720 2 3.6718 1.193 0.9375 1.1875 3780/3730 2 3.6718 1.193 0.9375 1.1875 3784/3730 2 3.6718 1.193 0.9375 1.1875 LMI04949E/LMI04911 2 3.25 1.019 0.65 0.85 LMI04949/LMI04911 2 2 3.25 0.875 0.65 0.85 28584/28521 2.0625 3.625 1 0.7813 0.9688 33891/33821 2.0625 3.75 1.125 0.875 1.0938 78215C/78551 2.125 5.513 1.3085 0.926 1.4375 527053/HM807010 2.1457 4.125 1.4375 1.125 1.4375 HM807048/HM807010 2.1457 4.125 1.4375 1.125 1.4375 JLM506849/jLM506810 2.1654 3.5433 0.9055 0.7283 0.9055 28680/28622B 2.1875 3.8437 0.9688 0.7656 38437 387AS/382S 2.25 3.8125 0.864 0.7982 1 387A/382A 2.25 3.8125 0.864 0.625 0.8268 390/394 2.25 4.3307 0.866 0.8661 0.8661 462/453X 2.25 4.125 1.1542 0.9687 1.1875 29580/29520 2.3622 4.25 1 0.75 1 28985/28920 2.375 4 1 0.7813 1 28985/28921 2.375 3.937 1 0.7813 1 HM813843/HM813810 2.4375 5.0000 1.4375 1.0625 1.4375 29586/29522 2.5 4.25 1 0.75 1 390A/394A 2.5 4.3307 0.866 0.7411 0.8661 3982/3920 2.5 4.4375 1.183 0.9375 1.1875 HM212047/HM212010 2.5 4.8125 1.51 1.17 1.5 29590/29521 2.625 4.3307 1 0.75 1 3984/3925 2.625 4.4375 1.183 0.9375 1.1875 3994/3925 2.625 4.4375 1.183 0.9375 1.1875 HM212049/HM212011 2.625 4.8125 1.51 1.17 1.5 9278/9220 2.6875 6.375 1.8125 1.25 1.9375 33275/33462 2.75 4.625 1.1875 0.9375 1.1875 33281/33472 2.8125 4.7244 1.1875 0.923 1.173 29685/29620 2.875 4.4375 1 0.75 1 33287/33472 2.875 4.7244 1.1875 0.923 1.173 575/572 3 5.5115 1.4212 1.125 1.4375 580/572 3.25 5.5115 1.4212 1.125 1.4375 595/593X 3.25 5.9055 1.43 1.063 1.417 663/653 3.25 5.75 1.625 1.25 1.625 749A/742 3.25 5.909 1.8375 1.4375 1.75 27690/27620 3.2813 4.9375 1 0.7813 1 JM716649/JM716610 3.3465 5.1181 1.1417 0.9449 1.1811 749/742 3.3475 5.909 1.8375 1.4375 1.75 HM518445/HM518410 3.5 6.0000 1.5625 1.1875 1.5625 HM218248/HM218210 3.5433 5.7874 1.5748 1.2795 1.5748 598A/593X 3.625 5.9055 1.43 1.063 1.417 594A/592A 3.75 6 1.43 1.1875 1.5625 594R/593X 3.75 5.9055 1.43 1.063 1.417 42381/42584 3.8125 5.8437 1.1406 0.8438 1.125 JM720249/JM720210 2 3.937 6.1024 1.378 1.1024 1.4173 37431/37625 4.3125 6.25 0.844 0.625 0.9063 64450/64700 4.5 7 1.625 1.1875 1.625 799/792 5.0625 8.125 1.875 1.375 1.875 74550A/74850 5.5 8.5 1.875 1.375 1.875 67989/67920 8.25 11.125 1.8125 1.4375 1.8125

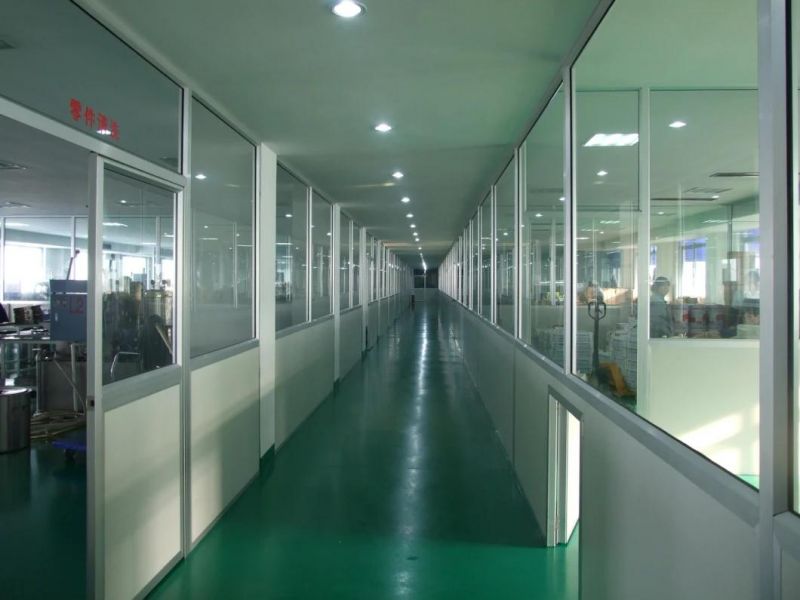

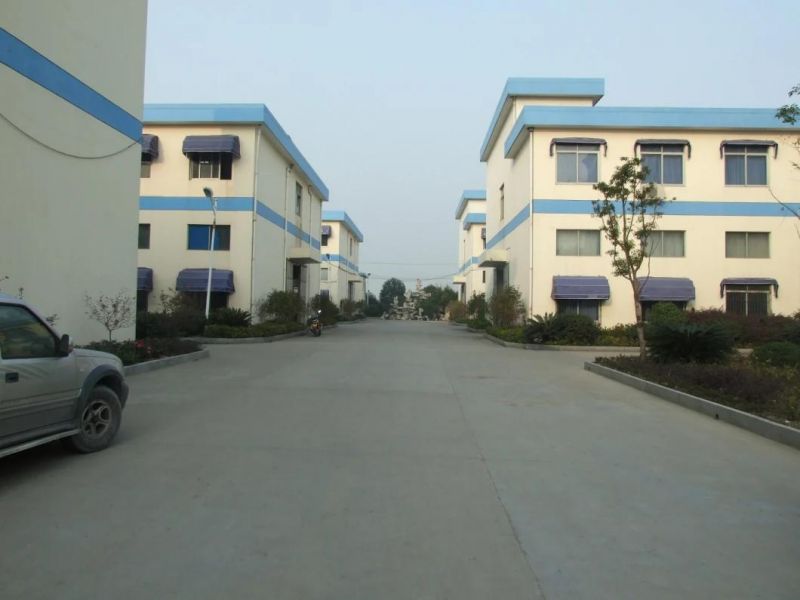

Factory

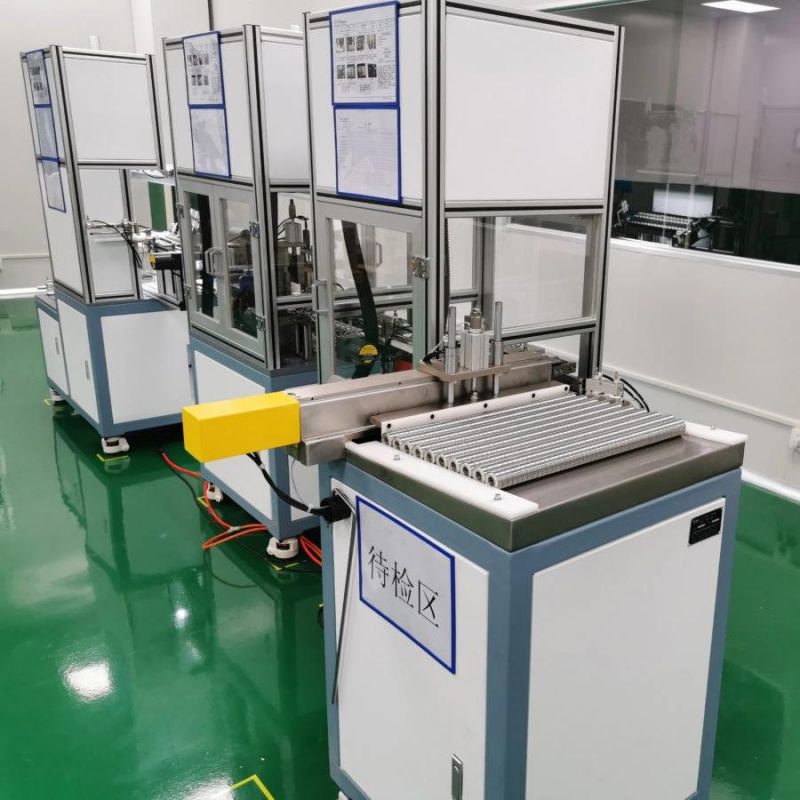

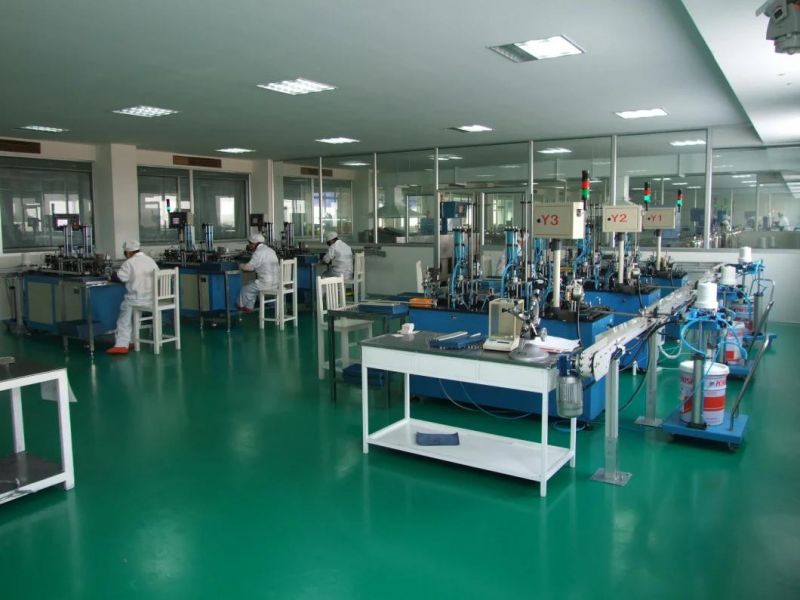

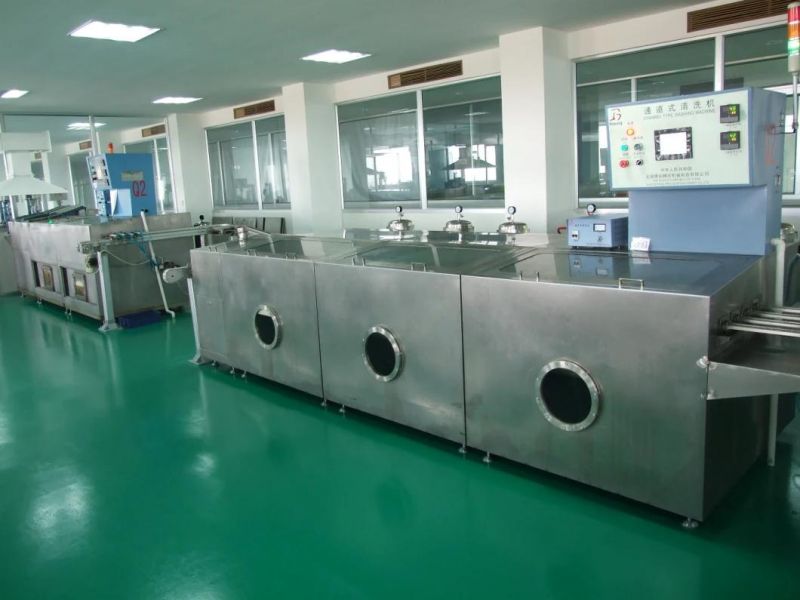

Production Workshop

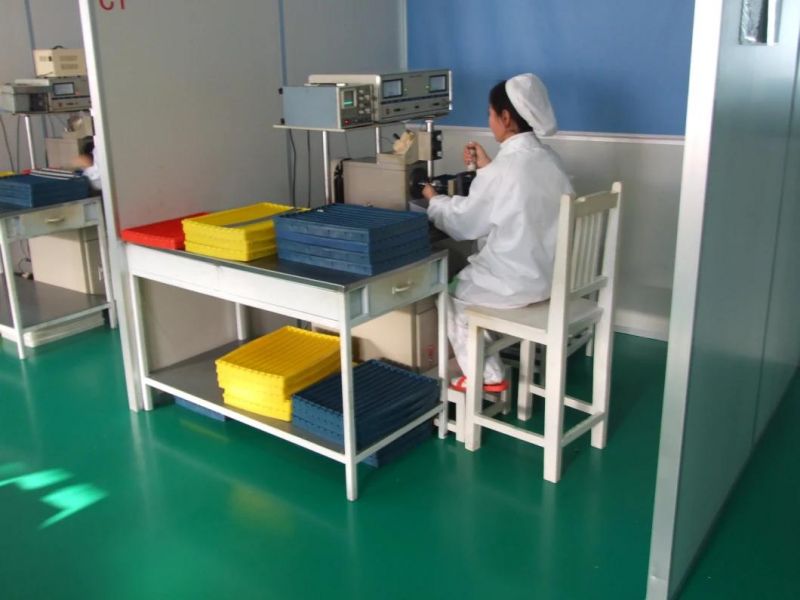

Inspection

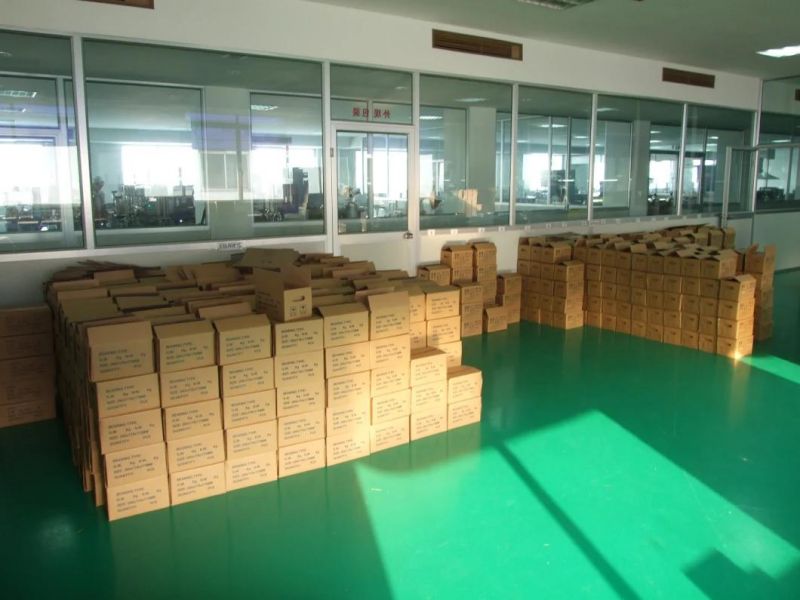

Warehouse
Application
Factory
Production Workshop
Inspection
Warehouse
Application
