• Model NO.：SC21-125-25RH-250A
• IP Class：IP65
• Static Axial Load：1598kn
• Static Radial Laod：640kn
• Outer Dia.M：584mm
• Inner Dia.M：465mm
• Color：Grey
• Hydraulic Motor：Yes
• Transport Package：Standard Wooden Case

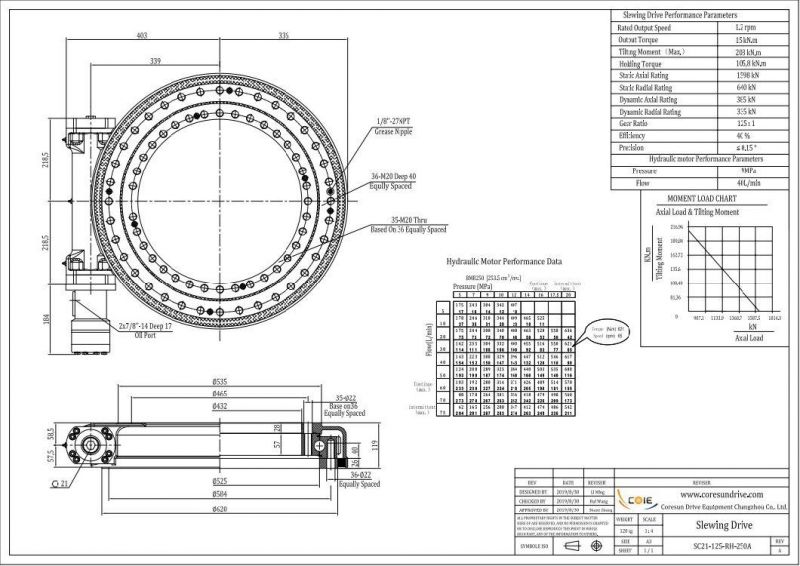

• Specification：SC21-125-25RH-250A
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：3000PCS,Month

The Coresun Drive Slew Drive with 100 % Self-Locking Worm Gear permit to transmit the Maximum Torque between the worm gear and the rotating ring.

Slew Drives are equipped with Standard Flange input for Hydraulic Or Electric Motor.

The Coresun Drive Hourglass Design can Withstand and Grant a Survivability Load that is Four To Nine Greaterthan alternative products.

The Special Hourglass Screw Shape Allows More Teeth To Be Engaged On Time, enabling much higher torque endurance.

Thanks to this Technology, we can supply Durable and Reliable Slew Drive for your equipments.

Coresun Drive Slewing Bearings (also named Antifriction Bearing, Slew Ring) are mechanical components made of two Drilled Rings and an internal Rolling System to stand simultaneously Axial and Radial Loads, Tilting Moments, also of considerable values. The Fixing Holes and the simple Manufacturing Shape of the Slew Bearings, permit an easy Mounting and a sensible Cost Reduction for the Manufacturing of the companion Structures.

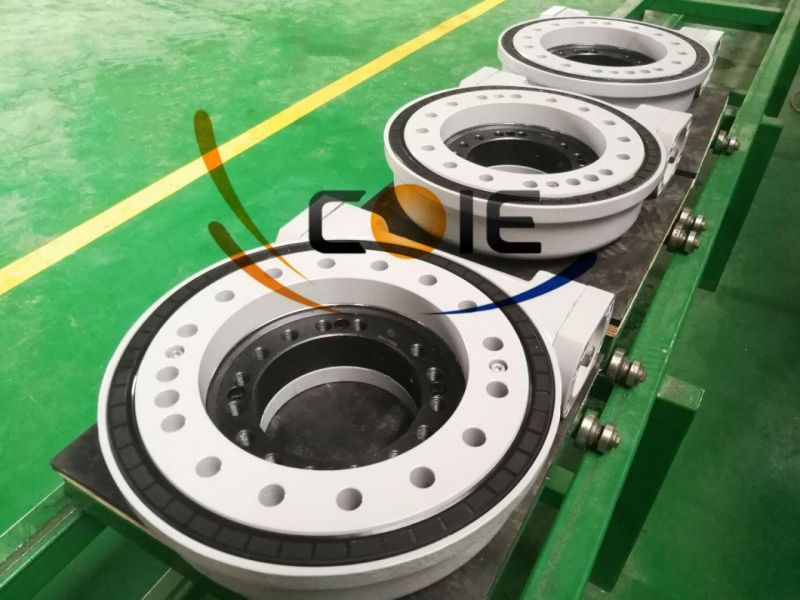

Coresun Drive Slewing Bearing Production Photo

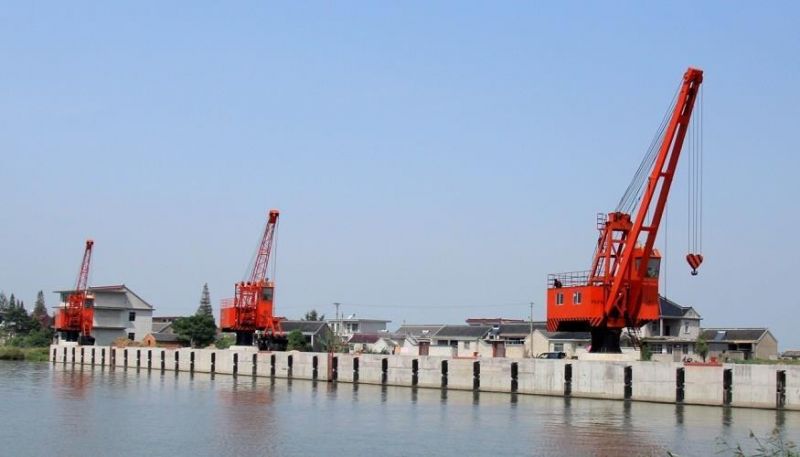

Application

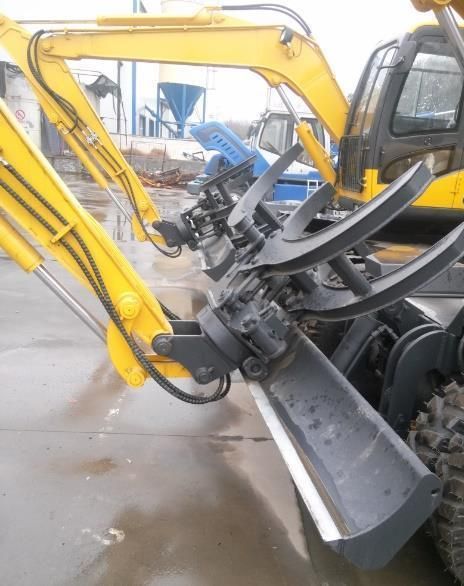

slewing bearing worm gear for timber grab

SC21 Slewing Drive Slewing Bearing Worm Gear Certification
