Sports Perimeter P10 Advertising LED Display with True Color RGB

Xiamen Everspring Technology Co., Ltd

Tube Chip Color：Full Color
IP Rating：IP65
Pixel Pitch：10mm
Pixel Configuration：1R, 1G, 1B
Display Function：Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption：600W , m²

Base Info

Model NO.：P10 Perimeter LED Display
Pixel Density：10000 dot , m²
Scanning Mode：1,4 Scan
Display Type：LED Video Display
Application：Advertising
Certification：CE, RoHS, ETL
Cabinet Materiel：Standard Steel
Drive IC：Mbi5124
LED Lamp：SMD3535
Brightness：6000nits
Refresh Rate：>1920Hz
IP Level：IP65
Module Size：320*160mm
Cabinet Weight：38.5kg
Power Supply：Meanwell
LED Brand：Nationstar
Transport Package：Wooden Case
Specification：960*960mm
Trademark：KEASYLED
Origin：China
HS Code：85285910
Production Capacity：10000000 M2, Year

Description

^{The specifications of modules}^Items^{LED Display Parameter}^{Product Model}^{P10 Full Color Led Display Module}^{Module size}^320mm*160mm^{Pixel pitch}^10mm^{Pixel density}^10000dots/m2^{Pixel configuration}^1R1G1B^{Module resolution}^{32dots(W)*16dots}^{Module maximum power consumption}^20W^{Module Thickness}^25CM^{Module Weight}^0.45kg^{Driving method}^{Constant Current Driving}^{Scanning method}^{1/4 scan}^Interface^HUB75^Brightness^7500cd/m2^{The specifications of cabinets}^{Cabinet size}^960mm*960mm^{Module quantity}^18pcs^{Power supply}^{5V/40A 5V/60A}^{Cabinet resolution}^96*96dots^{Optimal viewing distance}^10M~100M^{Optimal viewing angle}^{160°(W) 120°(H)}^{RH Working temperature}^{(Work: -25°C~+55°C)}^{System operating humility}^10%-95%^{The specifications of the power supplier}^{Operating Voltage}^AC220V±10%^{Average power consumption}^350W/H^{Maximum power consumption}^≤700W/m2^{Electric current}^{≤20mA(single LED)}^{The specifications of the control card}^{Control Panels}^{Pentium4 or above}^{Operating system}^{WIN98/2000/NT/XP}^{Control model}^{Synchronization with PC}^{The specifications of the main technical parameters}^{Driving device}^{Constant Current Driving}^{Refresh rate}^≥320HZ^Greyscale^{RGB Each 256, can display 16.7M colors)}^MTBF^≥9000hours^{Power switch}^{Automatic Switch}^{Display Mode}^{800*600/1024*768/1280*900}

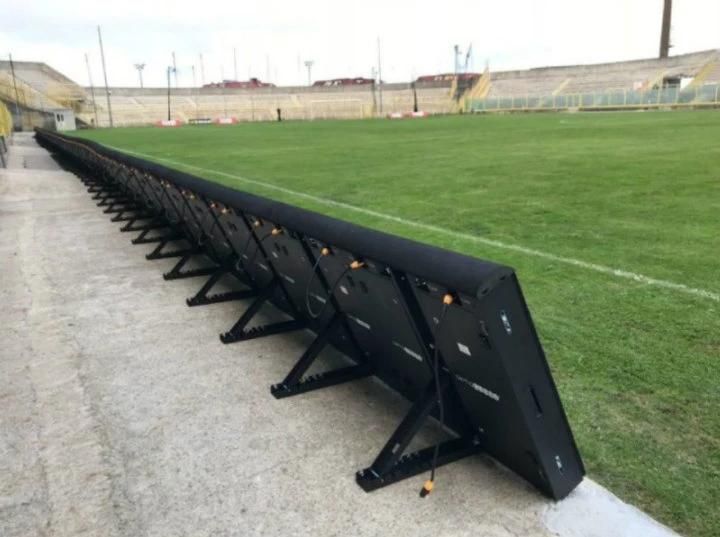

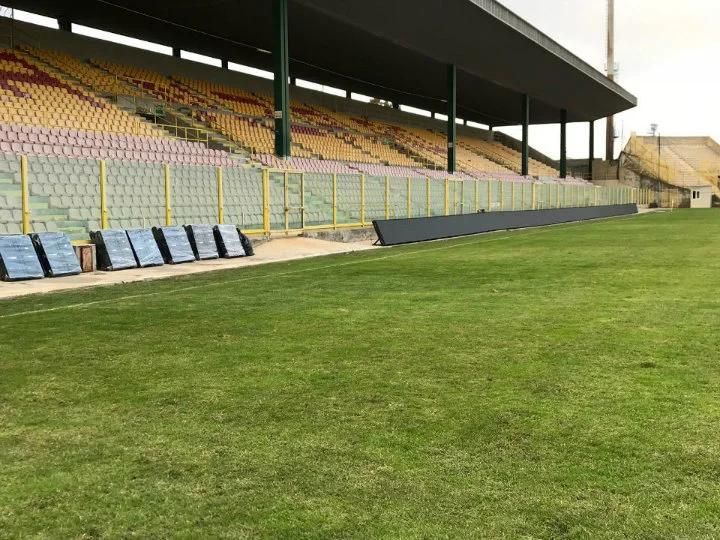

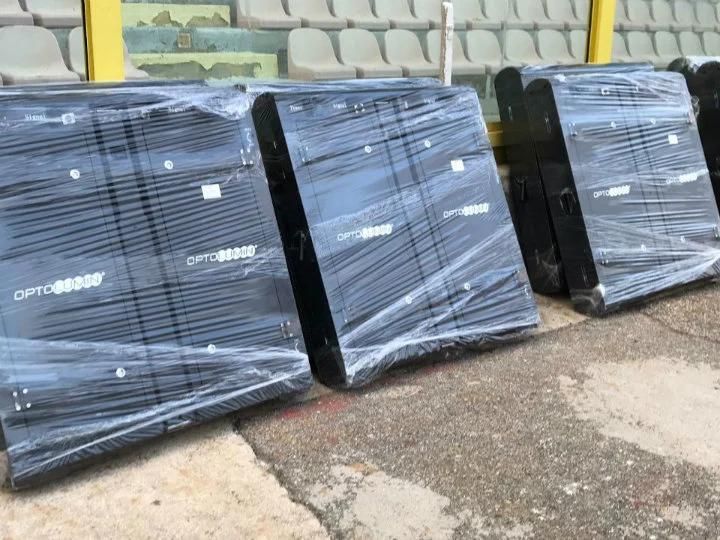

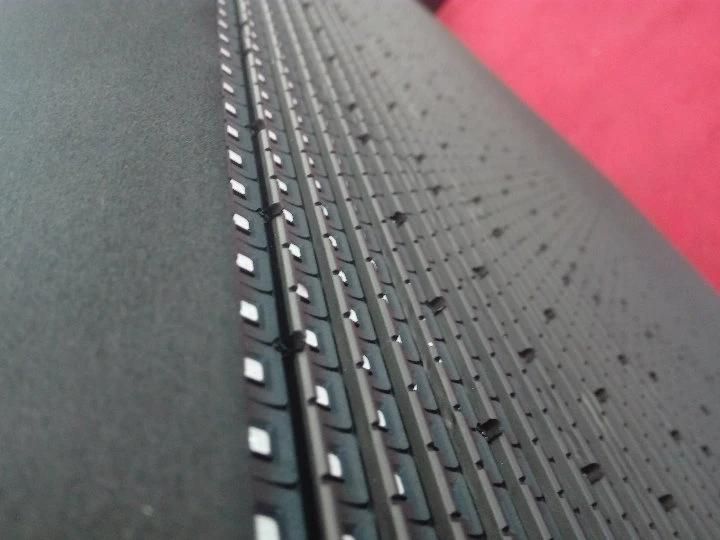

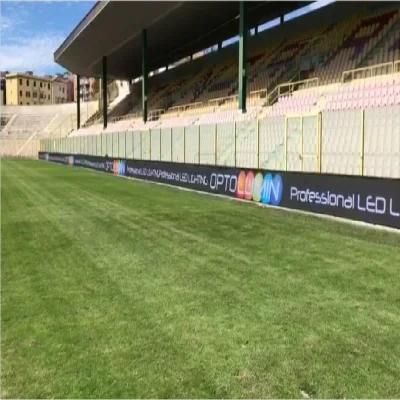

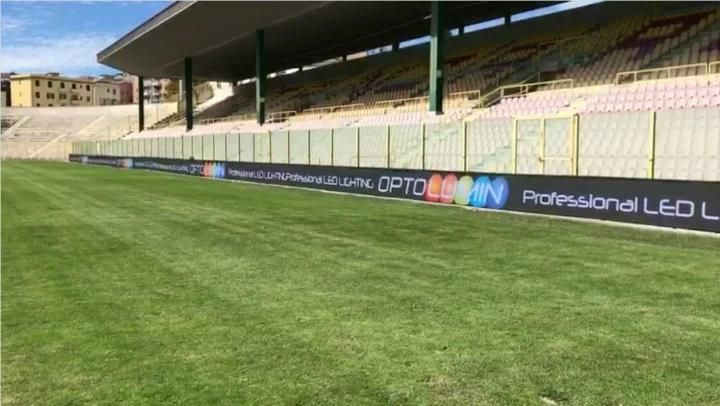

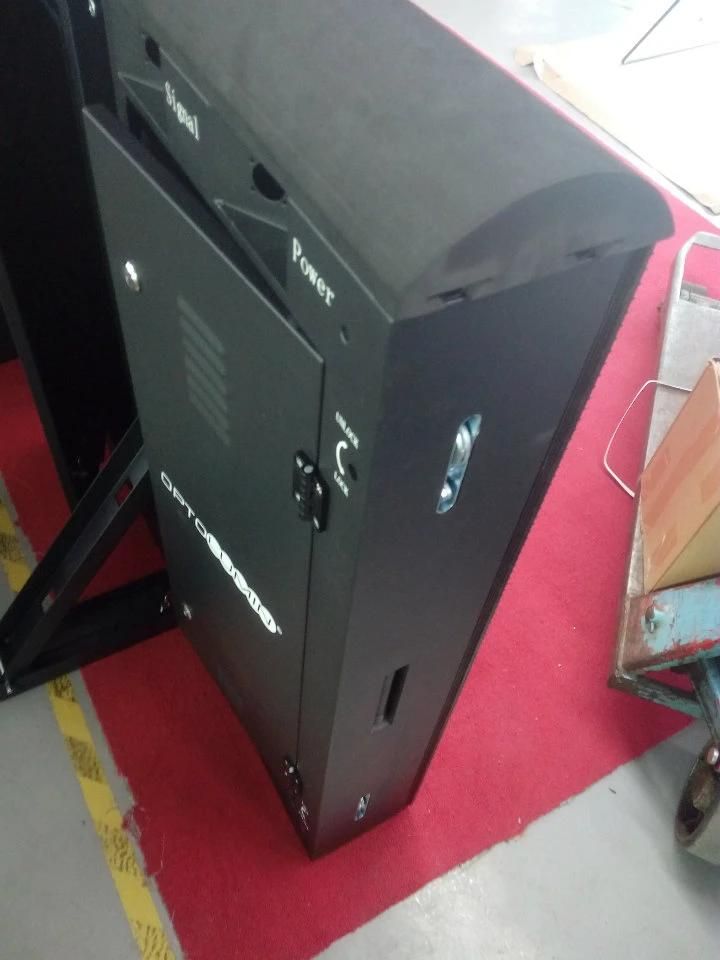

Project pictures:

Sports Perimeter P10 Advertising LED Display with True Color RGB

Sports Perimeter P10 Advertising LED Display with True Color RGB

Applications:
^{1. Application: Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools,
monitoring, restaurants, entertainment, enterprises etc
2. Market: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania,}^MID^{East, Eastern Asia, Western Europe}

Our services:
^{1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will deliver goods as you demand, you can choose the cheaper and more convenient way!}

Trade terms:
^{1.Packing: Anti-shaking wooden case/Air flight case/carton
2.Shipping port: Shenzhen, China
3. Shipping freights are quoted according to your requests
4.Delivery time:30 working days
5.Two years warranty, lifelong maintaining. In the Maintenance period, free of all maintenance charges.
After Maintenance period, only charge the material cost fees.}
