P12 Custom Full Colour Waterproof LED Screen Display Outdoor
Emoer Industry Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：12mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：25W
Base Info
- Model NO.：P12
- Pixel Density：6944 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, CCC
- Deliver Time：15-20 Days
- Warranty Period：2years
- Drive Type：Constant Drive
- Package Mode：546
- Modle Size：192mm*192mm
- Life Span：100000 Hours
- Brightness：6500
- Transport Package：Carton Box
- Specification：640mm*340mm*350mm
- Trademark：FWS
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：2500square Foot,Square Feet Per Month
Description

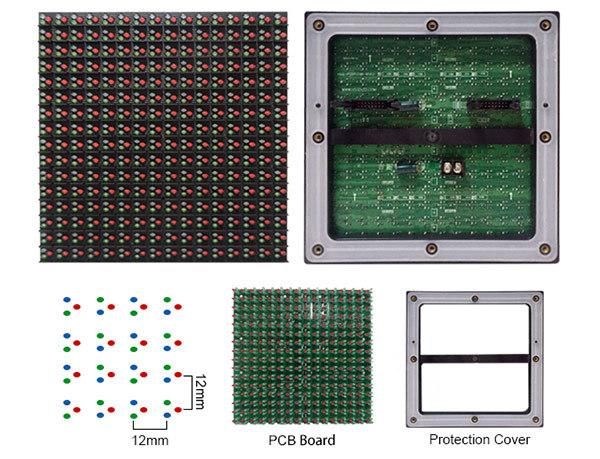

P12 Outdoor full Color LED Screen SpecificationPixel pitch 12mm Pixel Configuration 1R1G1B LED component DIP 546 Size of module 192mm x 192mm Resolution of module 16x16 Resolution of cabinet 96x80 Material of Cabinet Iron with back doors Weight of Cabinet <70KGS Brightness >7500cd/sq.m Density 6944dots/sq.m Best viewing angle 110 /50 Best viewing distance 10-150M Maximum power consumption <800W/sq.m Average power consumption <300W/sq.m Driving method 1/4 scan Control method Synchronization/Asynchronization Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1800Hz IP grade IP65 Life Span 100,000 hours Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
