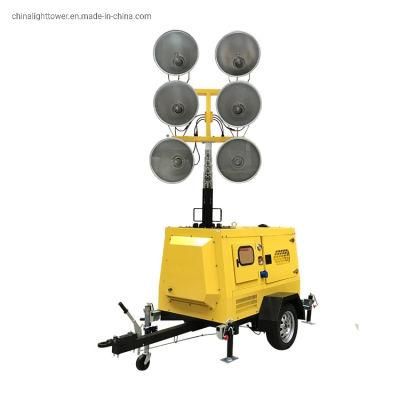

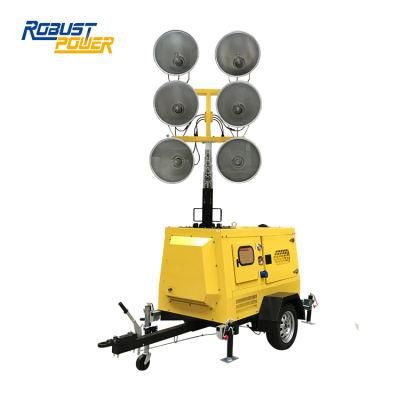

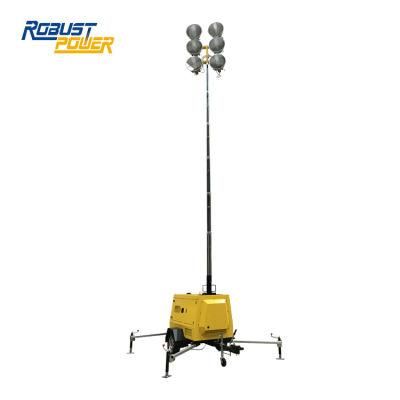

100L 8m Telescopic Mast Mobile Hydraulic Lighting Tower
Hebei Rongyuan Plastic Products Co., Ltd.- Fuel Capacity：100L
- Fuel Consumption：2.0L,Hr
- Engine：Kubota
- Power：8kw
- Alternator：Sm160
- Lamp：4*1000W Metal Halide
Base Info
- Model NO.：RPLT-6700
- Lumen：4*110000lm
- Mast：4-Section Hydraulic 8m
- Transport Package：Plywood Pallet,Plwood Case,Cartons
- Specification：ISO9001: 2000, CE
- Trademark：Robust Power
- Origin：China
- HS Code：94054090
- Production Capacity：250set,Month
Description
GENERATORAlternator Stamford PI044F/4-Pole,Brushless,excitation Voltage 120,220,230,240v Insulation H Fuel tank capacity 100L Fuel consumption 2.0l/h Maximum working hours 50 Control system GU3303 Digital controller Engine shutdown protection Low oil press, over speed, over current,
high temperature detection, low fuel level Auxiliary sockets 2 LIGHTING Total power of lamps 4*1000w Type of lamp Metal halide lamp Housing materials Galvanization reflector housing Lumen 4*110000 Lifetime of lamp 5000 hours Working temperature ≤85 Connection protection index IP54 MAST Mast type 6-sections telescopic mast 8m Total height 8m Rotation 360 degrees Operate for elevation Hydraulic TRAILER Tow hitch Ring/ball hitch Stabilize supports 4*manual /hydraulic Tire size 13inch Brakes Manual DIMENSION&WEIGHT Dry /net weight 930/890 kg Extended dimension 4500*1350*1700 Shipping package Iron pallet 2100*1300*2400mm
Carton 520*520*400mm Container load (20GP/40HQ) 6/12set Color White/yellow/optional
high temperature detection, low fuel level
Carton 520*520*400mm

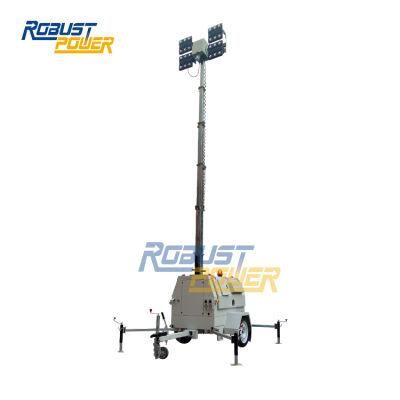

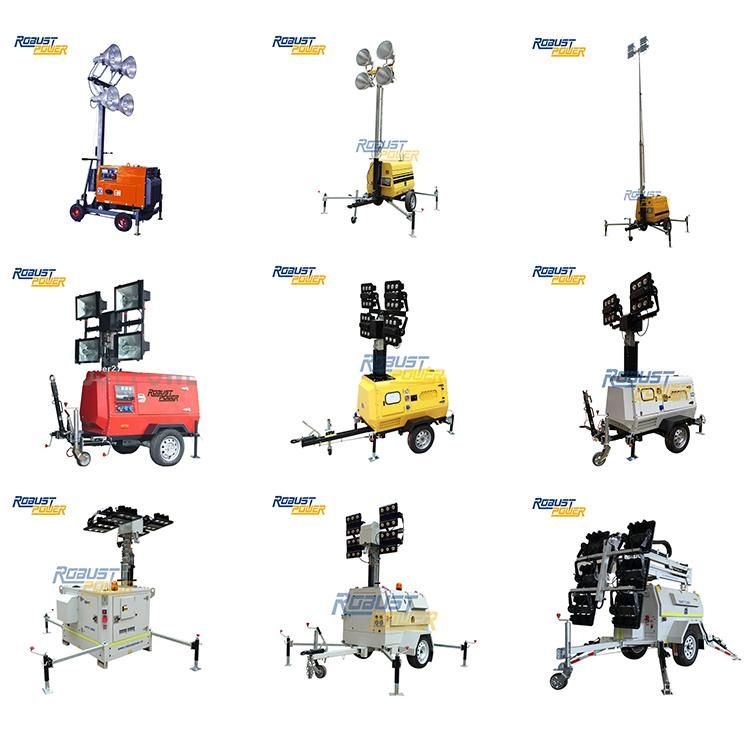

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
