Thin Section Open Sealed Metric Radial Ball Bearing for Sorting Equipment (6700 Series)

Guangzhou Heyi Craft Product Co., Ltd.
  • Contact Angle：1
  • Aligning：Non-Aligning Bearing
  • Separated：Unseparated
  • Rows Number：Single
  • Load Direction：Radial Bearing
  • Material：Bearing Steel

Base Info

  • Model NO.：6700
  • Structure：Deep Groove Ball Bearing
  • Sample：Free
  • Seals Type：RS Zz Open
  • Certificate：ISO9001:2008
  • Payment Terms：Tt Payment
  • Transport Package：Industrial Package; Single Box Package
  • Specification：10*15*3mm
  • Trademark：SKF NTN NACHI NSK KOYO CHIK OEM
  • Origin：China
  • HS Code：8482102000
  • Production Capacity：100, 000 ,Month, 1000000PCS,Year

Description

Basic Info.

Model NO. 6700 Structure Deep Groove Ball Bearing Sample Free Seals Type RS Zz Open Certificate ISO9001:2008 Payment Terms Tt Payment Transport Package Industrial Package; Single Box Package Specification 10*15*3mm Trademark SKF NTN NACHI NSK KOYO CHIK OEM Origin China HS Code 8482102000 Production Capacity 100, 000 /Month, 1000000PCS/Year

Product Description

I. PRODUCT INFO.
Bearing TypeOpen
Bore Dia (d)10mm
Outer Dia (D)15mm
Width (B)3mm
Radius (min) (rs)0.15mm
Dynamic Load Rating (Cr)855N
Static Load Rating (Cor)435N
Max Speed (Grease)15,000rpm
Max Speed (Oil)17,000rpm
Max. Shaft Shoulder Dia. Inner (Li)11mm
Min. Housing Shoulder Dia., Outer (Lo)14mm
Ball Qty11
Ball Dia (Dw)1.588mm
Weight (g)1.4grams
PrecisionA1
Standard ClearanceC0
Material52100 Chrome steel, or equivalent

Thin Section Ball Bearings were developed for applications where space limitations are of the utmost importance. As the name implies, the difference between the inside and outside diameters of the rings has been minimized or thinned out. Of course this comes at a price by compromising load capacities. However, these bearings can still accommodate a relatively light radial thrust or combined loads.

CHIK has nearly 300 different models of thin section ball bearings organized into the following numerical series:

  • SR Series - Inch dimensional series with bore sizes ranging from 3/8" to 1-5/8"
  • 6700 Series - Metric dimensional series for very limited space applications and very light loads
  • 6800 Series - Metric dimensional series for limited space applications and light loads
  • 63800 Series - A hybrid between the 6800 and 6900 Series with the load capacities of the 6800 series but the width of the 6900 series.
  • 6900 Series - Metric dimensional series for limited space applications and heavier loads
  • Aerospace and defense
  • Astronomy instrumentation
  • Fixturing and workholding equipment
  • Food processing equipment
  • Glassworking equipment
  • Index and rotary tables
  • Packaging equipment
  • Machine tools
  • Medical systems and medical devices
  • Optical scanning equipment
  • Tire making equipment
  • Radar, satellite and communications equipment
  • Robotics
  • Textile machinery
  • Tube and pipe cutting machines
  • Semiconductor manufacturing equipment
  • Sorting equipment
Thin Section Open Sealed Metric Radial Ball Bearing for Sorting Equipment (6700 Series)

II.PACKAGING & SHIPPING
Thin Section Open Sealed Metric Radial Ball Bearing for Sorting Equipment (6700 Series)

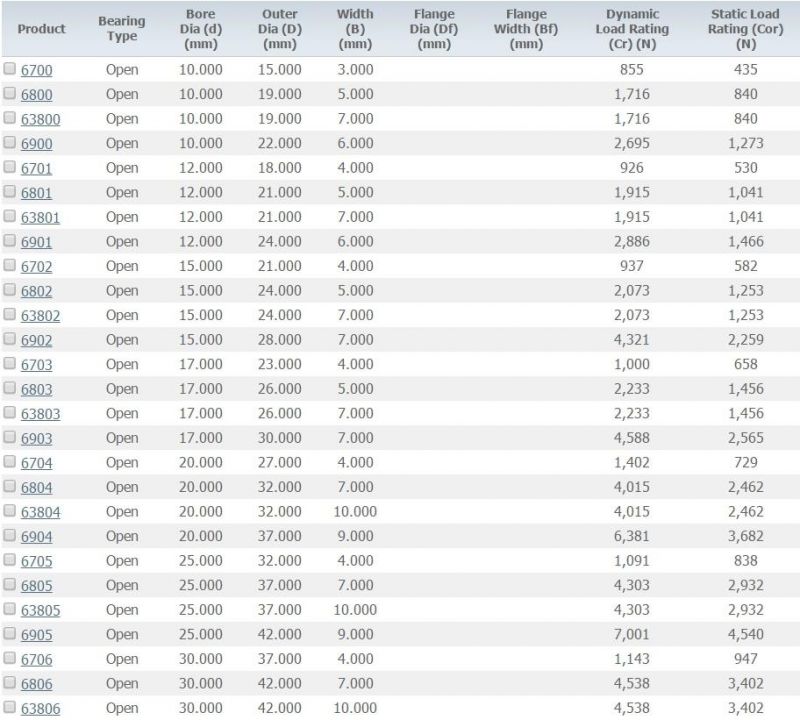

III. OTHER MODELS WE CAN SUPPLY
Thin Section Open Sealed Metric Radial Ball Bearing for Sorting Equipment (6700 Series)

VI. CONTACT INFO.
SHANDONG CHIK BEARING CO, .LTD.
Chris  ( Export Dep. )
Add:  No.9 Longao, North Longao Road, Jinan city,Shandong,china 250000
Website:   chikbearing.en.made-in-china.com
Tel:        0086-531-82964086
Fax:       0086-531-82964081
Mobile: 0086-15806686790
