• Model NO.：P1.25 COB
• System Operating Platform：WIN98
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Viewing Angle：H: 170 V:170
• Cabinet Material：Die-Casting Aluminum
• Module Resolution：120×48
• Grey Scale：16nits
• Refresh Rate：3840Hz
• Cabinet Size：300*60mm
• Brightness：500-800CD
• Transport Package：Wood Case
• Specification：300*60mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

ItemParametersModelP1.25 COBPixel Pitch(mm)1.25Physical Density (dot/sqm)640,000LED Configuration1RGBLED TypeCOBModule Size (mmxmm)150x60Module Resolution (PXxPX)120×48Scanning mode1/45Brightness(cd/sqm)500-800Grey Scale16bitRefresh Rate(Hz)3840zDrive ModeConstant Current DriveHorizontal Viewing Angle(Deg)170Vertical Viewing Angle(Deg)170Cabinet Resolution(PXxPX)240x46Module Power Consumption(w)40Cabinet Max Power Consumption(w)130Cabinet Average Power Consumption(w)40Cabinet Size(mmxmm)300x60mmCabinet Weight(kg)0.35kgCabinet Thickness(mm)60mmCabinet MaterialDie-casting AluminumColor(M)16.7Input VoltageAC100V-240V +/-10%Refresh Frame Frequency(Hz)50-60Protection LevelIP33Working EnvironmentIndoorWorking Temperature(ºC)-40°-+60°Storage Humidity(RH)40%-60%Life Span(H)100,000

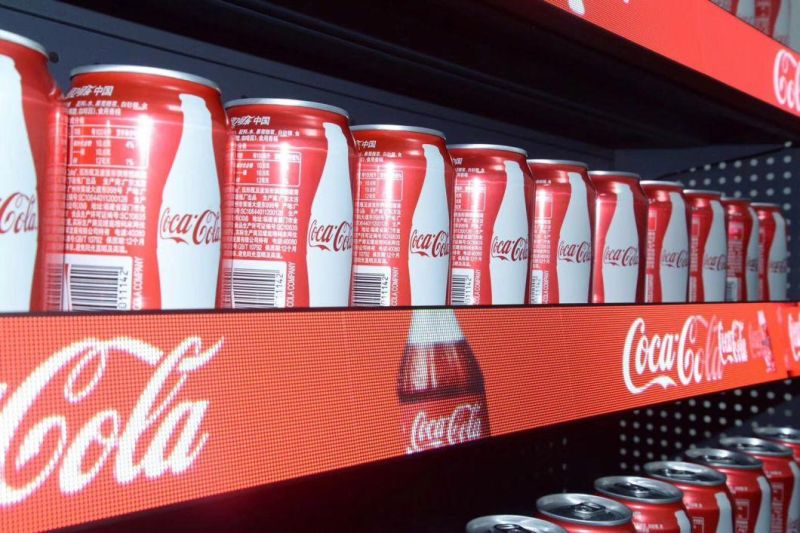

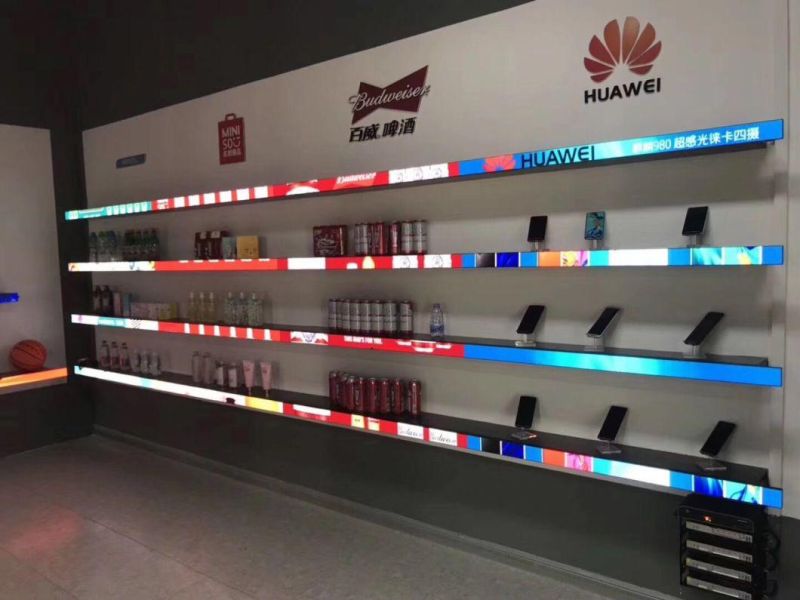

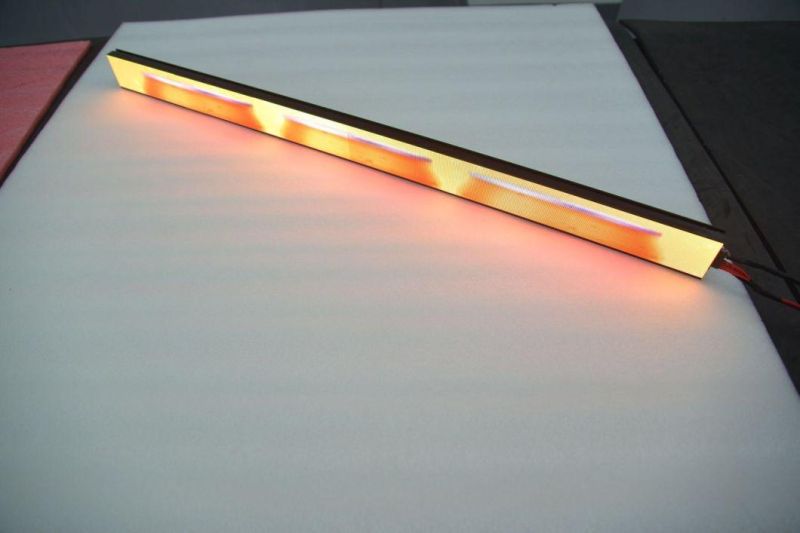

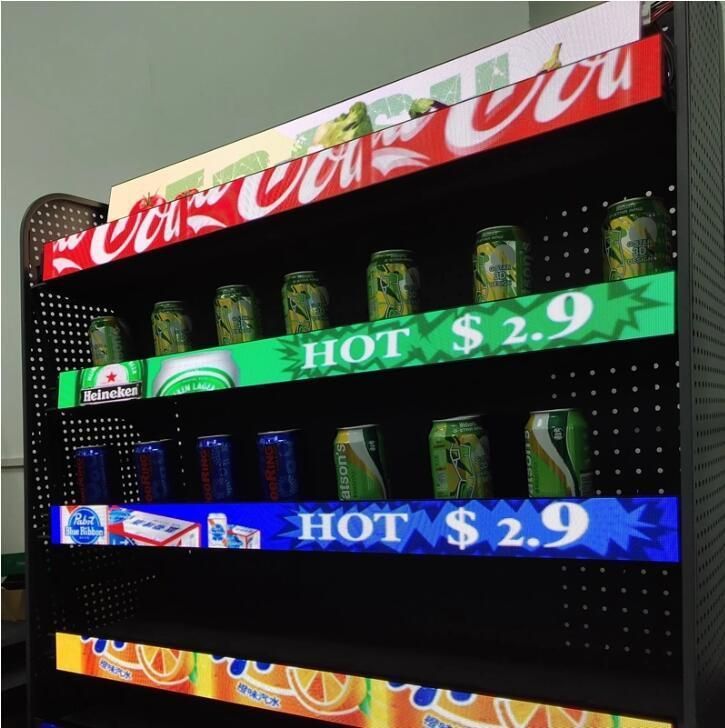

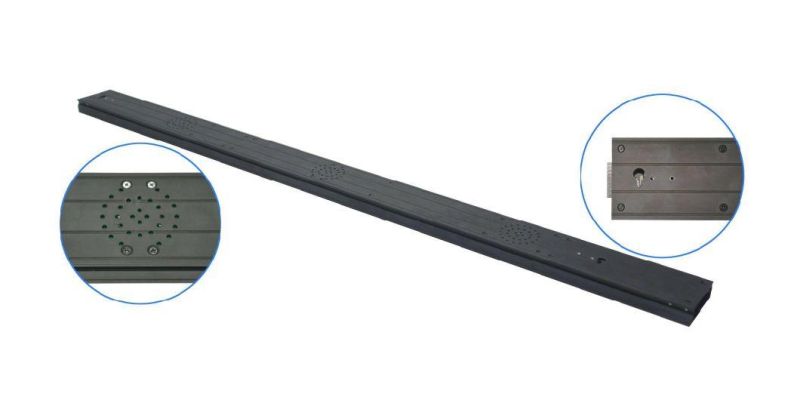

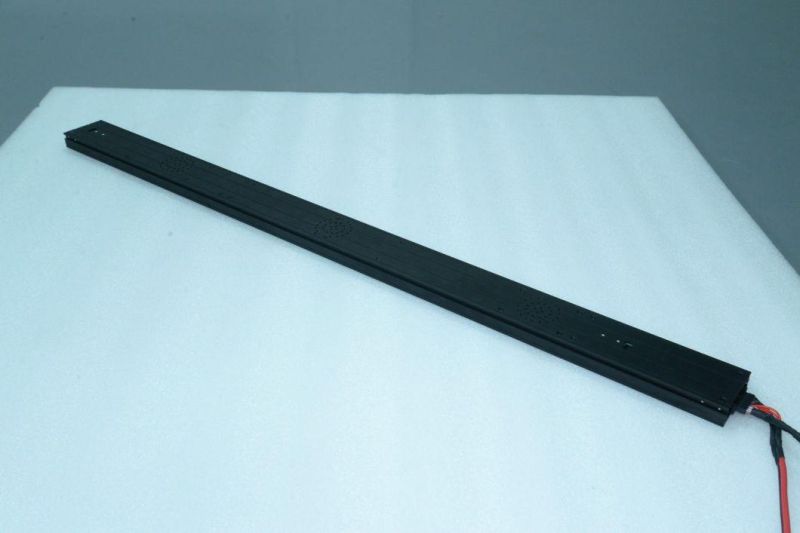

PRODUCT PHOTOS:









Certificates:



FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
