5050RGB Kit Series Flex Strip Smart WiFi 30LED 12V 24V
Qingdao Haochen Packing Co., Ltd.- Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
- Power：2.4W,7.2W
- Emitting Color：RGB
- Voltage：12,24
- IP Rating：IP65 IP66 IP67 IP68

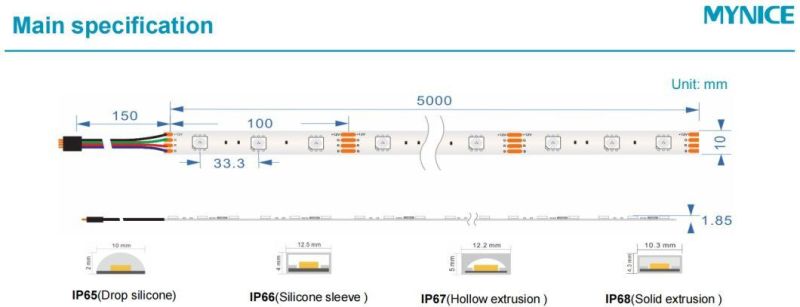

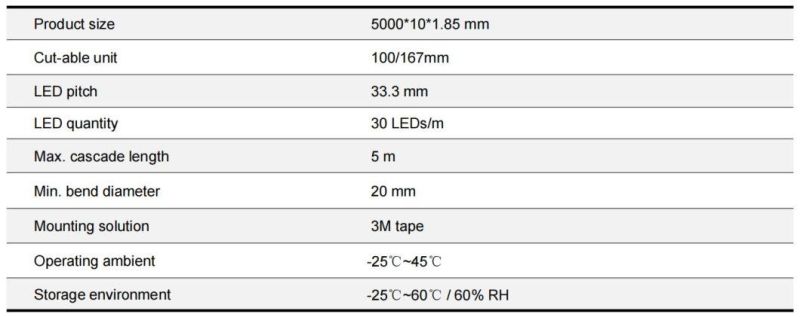

- Product Size：5000*10*1.85 mm
Base Info
- Model NO.：R030AA10Q-KIT,R030AA10R-KIT
- Cut-Able Unit：100,167mm
- LED Pitch：33.3 mm
- LED Quantity：30 LEDs,M
- Max. Cascade Length：5 M
- Min. Bend Diameter：20 mm
- Mounting Solution：3m Tape

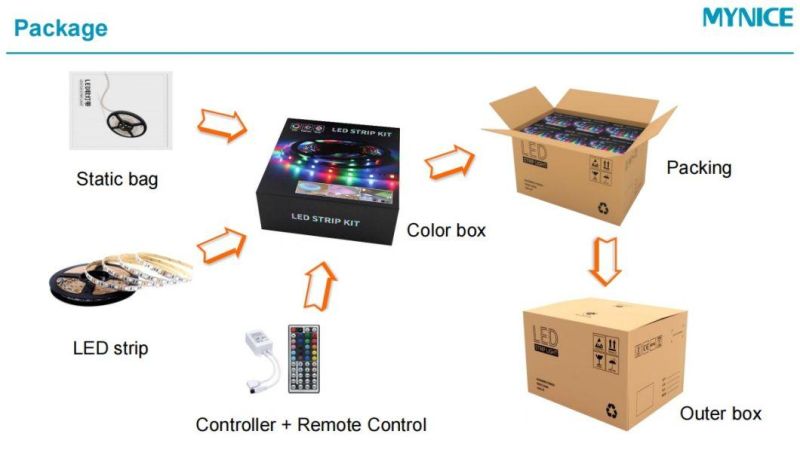

- Transport Package：5m,Roll,Bag, 20bags,CTN
- Specification：5m,roll
- Trademark：YOUNICE,ODM
- Origin：China
- HS Code：9405429000
- Production Capacity：100000m,Day
Description
/temperature
- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms. - Installation by qualified electrician only. - Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%. - Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability. - Do not fold it in case any damage of LED beads. - Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited. - Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage. - LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH. - Please use the strips without waterproof within indoor environment with humidity less than 70%. - Please be careful during operation. Do not touch the AC power supply in case of electric shock. - Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product. - Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement)
