Multicolor Red, Green, Blue, Orange Available SMD3528 LED Flexible Strip
Shanghai ZW Tech Co., Ltd.- Certification：FCC, LVD, UL, EMC, RoHS, CE
- Power：19.2W,M
- Emitting Color：White
- Voltage：24V
- IP Rating：IP20
- LED Qty/m：240LEDs,m 3528
Base Info
- Model NO.：LM3528-WN240-24V-10mm
- LEDs Suppliers：Honglitronic,Osram,Samsung
- LEDs material：packaged by 99.99% pure gold wire
- LED BINs：3-Step,5-Step, same BIN for each order
- LED Chip Brand：Sanan(Epistar optional)
- PCB Width：10mm
- PCB material：Double-sided coated pure copper
- PCB thickness：2Oz (front 35um,back 35um)
- Adhesive Tape：9495 3000LSE 3M tape

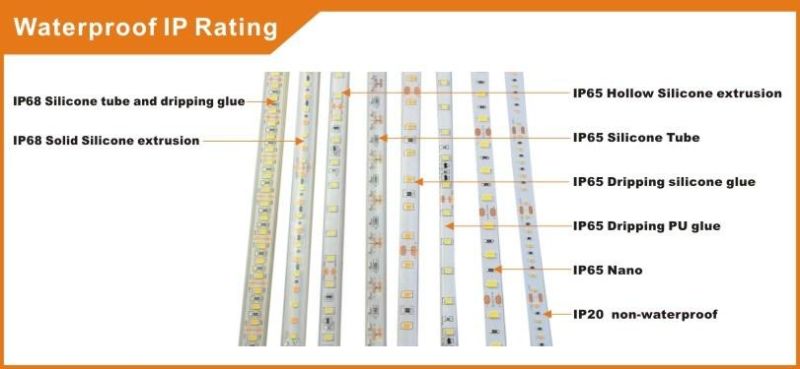

- IP Grade：IP20,IP60,IP65,IP68

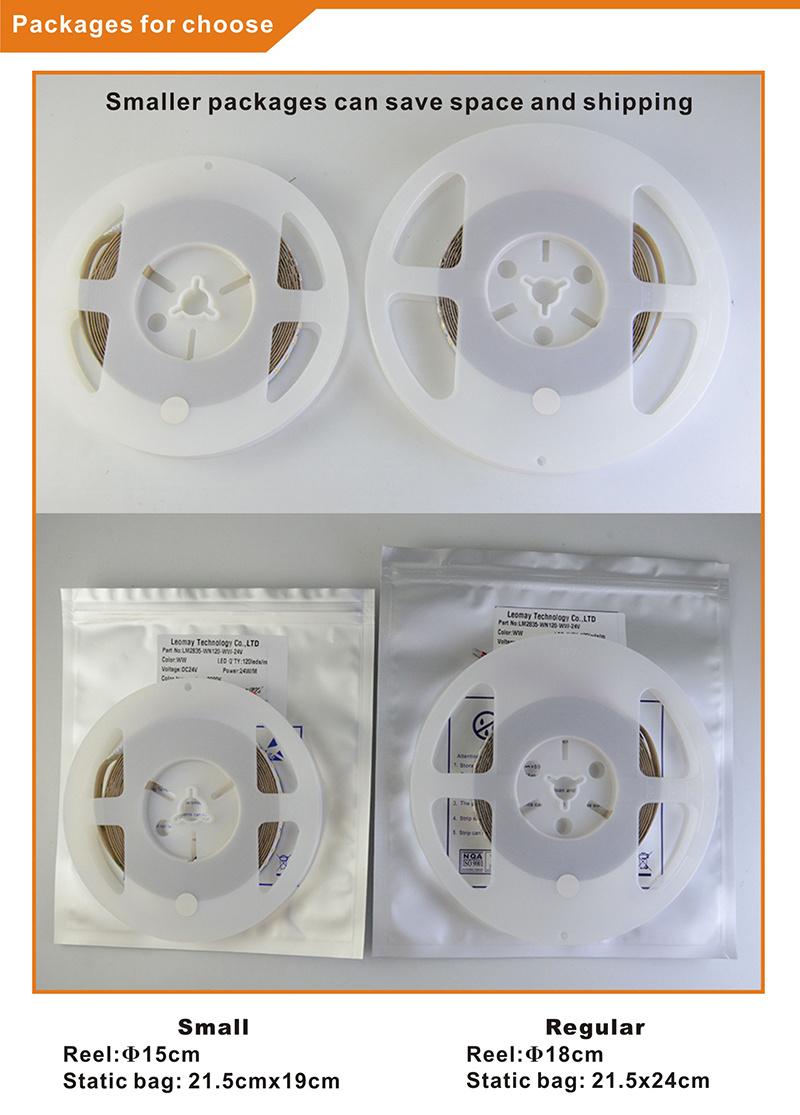

- Transport Package：5meters,Reel, Static- Resisted Bag
- Specification：CE, RoHS
- Trademark：leomay
- Origin：Zhongshan, China
- HS Code：9405409000
- Production Capacity：50, 000meters,Month
Description
SMD3528seriesModelLED QuantityVoltagePowerLumen/mCRIPCB widthIP ratecolorLM3528-WN3030leds/m12/24V2.4w/m180lm/m808mmIP20/IP65/IP67/IP68red,green,blue,yellow,white,orangeLM3528-WN6060leds/m12/24V4.8w/m360lm/m808mmIP20/IP65/IP67/IP68red,green,blue,yellow,white,orangeLM3528-WN60-RGB60leds/m12V4.8w/m360lm/m808mmIP20/IP65/IP67/IP68red,green,blueLM3528-WN9696leds/m12V7.68w/m576lm/m808mmIP20/IP65/IP67/IP68red,green,blue,yellow,white,orangeLM3528-WN120120leds/m12/24V9.6w/m720lm/m808mmIP20/IP65/IP67/IP68red,green,blue,yellow,white,orangeLM3528-WN240-single row240leds/m24V19.2w/m1440lm/m8010mmIP20red,green,blue,yellow,white,orangeLM3528-WN240-double row240leds/m24V19.2w/m1440lm/m8015mmIP20/IP65red,green,blue,yellow,white,orangeLM-3528-WN120-CCT120leds/m12V9.6w/m720lm/m8010mmIP20/IP65/IP67/IP68white,warm whiteLM3528-WN60-HL60leds/m12/24V4.8w/m360lm/m8010mmIP20/IP65/IP67/IP68red,yellow,blue,green,white,orange
Main features:
1CE,RoHS certificated with high quality
2,3M tape at backside,easier to install
3 Epistar LED chips with super brightness
4, 24 months longer warranty time
5 Factory direct sale with most competitive price and shortest delivery lead time
6 CRI is above 85 with best light effect
Applications:
1 Architectural decorative lighting
2 Accent lighting
3 Border/contour lighting
4 Emergency&security lighting
5 Auditorium walkway lighting
6 Stairway accent lighting
7 Concealed lighting
8 Backlighting for signage letters
9 Channel letter lighting
10 Cove lighting
Main features:
1CE,RoHS certificated with high quality
2,3M tape at backside,easier to install
3 Epistar LED chips with super brightness
4, 24 months longer warranty time
5 Factory direct sale with most competitive price and shortest delivery lead time
6 CRI is above 85 with best light effect
Applications:
1 Architectural decorative lighting
2 Accent lighting
3 Border/contour lighting
4 Emergency&security lighting
5 Auditorium walkway lighting
6 Stairway accent lighting
7 Concealed lighting
8 Backlighting for signage letters
9 Channel letter lighting
10 Cove lighting
