Outdoor Waterproof Save Energy Full Color P6 LED Billboard

Danyang Yun Kai Metal Products

IP Rating：IP65
Pixel Pitch：6.66mm

Base Info

Model NO.：6.66mm
Pixel Configuration：1R, 1G, 1B
Display Function：Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption：145W,Sqm
Pixel Density：27777dots,Sqm
Scanning Mode：1,6 Scan
Display Type：LED Video Display
Application：Advertising
Certification：CE, RoHS, UL, CCC, ETL
Module Size：320X160mm
Module Resolution：48X24dots
Cabinet Size：960X960mm , Customizable Size
Cabinet Resolution：144X144dots
Screen Brightness：7500nits
Protection Grade：waterproof IP65
Compliance：Ce ,RoHS ,CCC,FCC
Cabinet Material：Die-Casting Aluminum
Drive Method：1,6 Scan
Refresh Rate：1920-3840Hz
Maintenance：Rear Service
Ave.Power Consumption：145W,Sqm
Max.Power Consumption：300W,Sqm
Transport Package：Plywooden Case
Specification：4,6,8 pcs cabinet in one case
Trademark：CKGLED
Origin：China
HS Code：8528591090
Production Capacity：6000sqm,Month

Description

Pixel pitch6.66mmPixel configuration1R1G1BModule size320mm*160mmPixel density27777 dots/sqmModule pixel48dots*24dotsModule resolution1152dotsDriving method1/6 constant driving

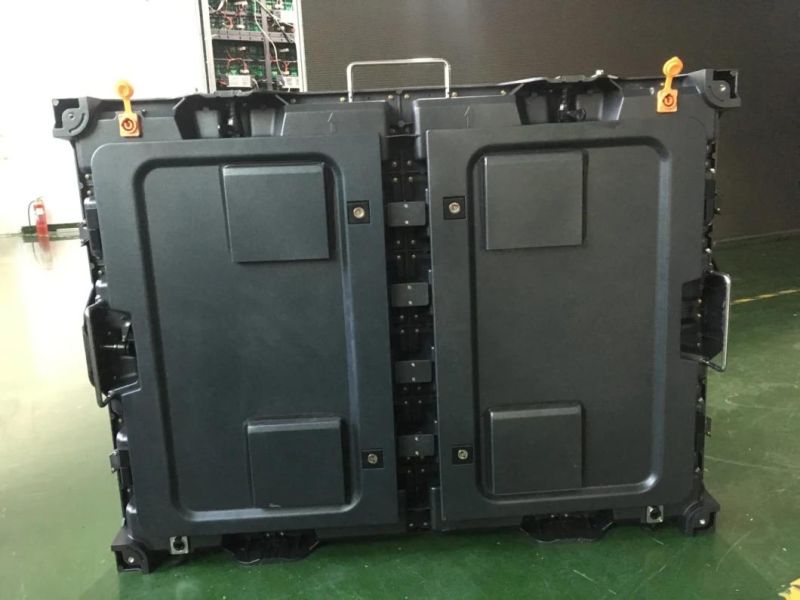

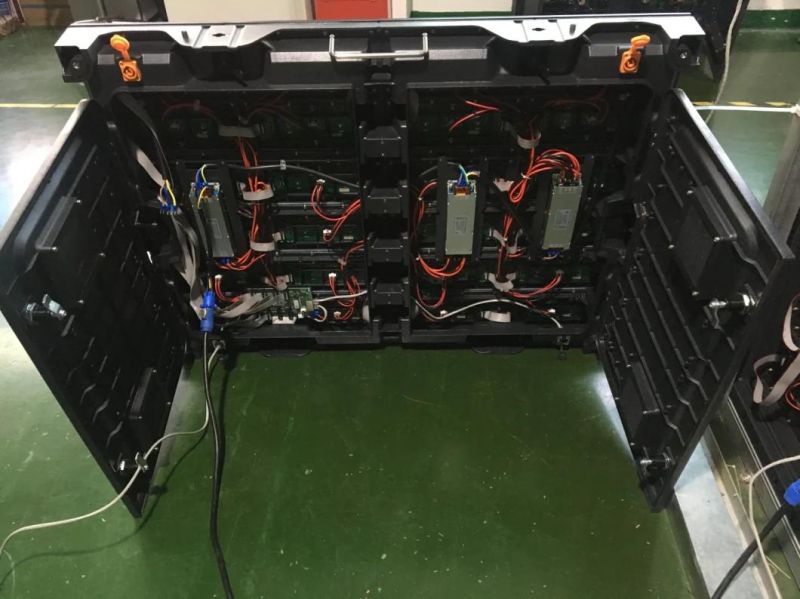

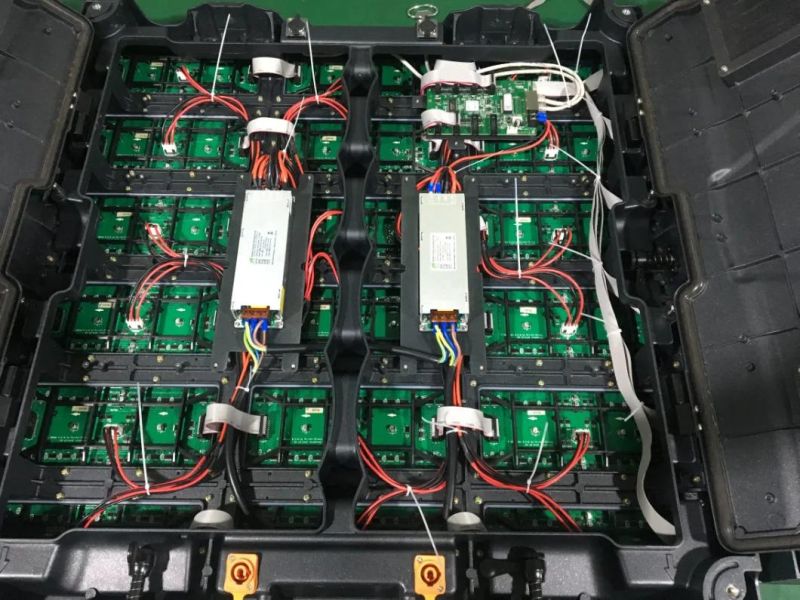

Cabinet specifications:
Cabinet size960mm*960mmModule Qty18pcsCabinet resolution144dots*144dotsCabinet pixel20736dotsCabinet weight23kg power consumption(w/sqm)AVE.145 / MAX.300

SCREEN PARAMETERS:
No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)120°,(V)60°5Brightness ≥7500cd/sqm6Drive Method1/6 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 145W/sqm16Max. Power Consumption300W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

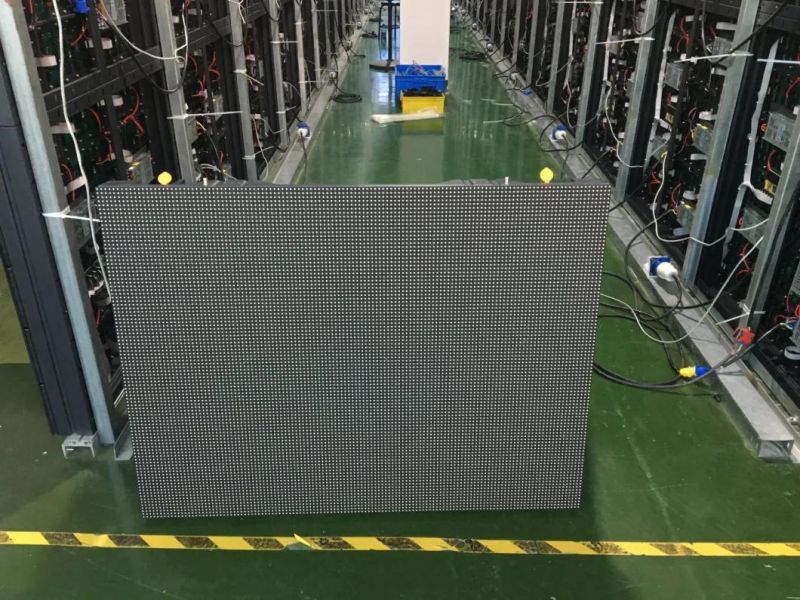

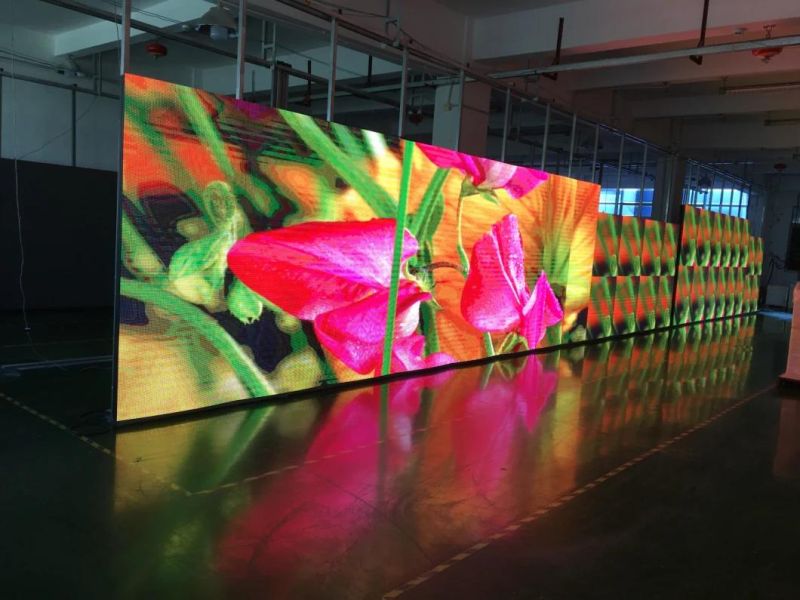

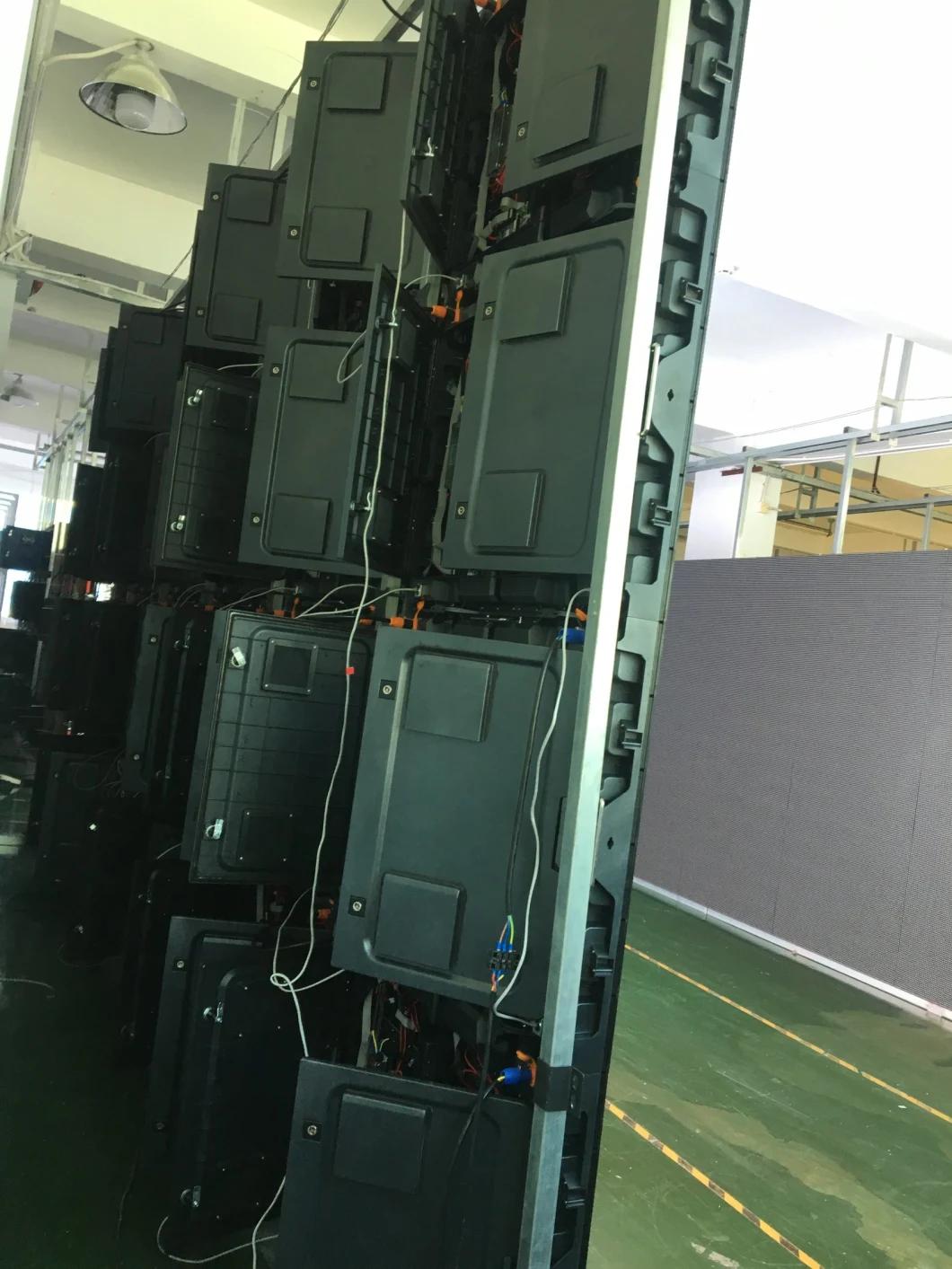

PRODUCTION WORKSHOP:
Outdoor Waterproof Save Energy Full Color P6 LED Billboard

Outdoor Waterproof Save Energy Full Color P6 LED Billboard

FOREIGN EXHIBITION:
Outdoor Waterproof Save Energy Full Color P6 LED Billboard

Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms

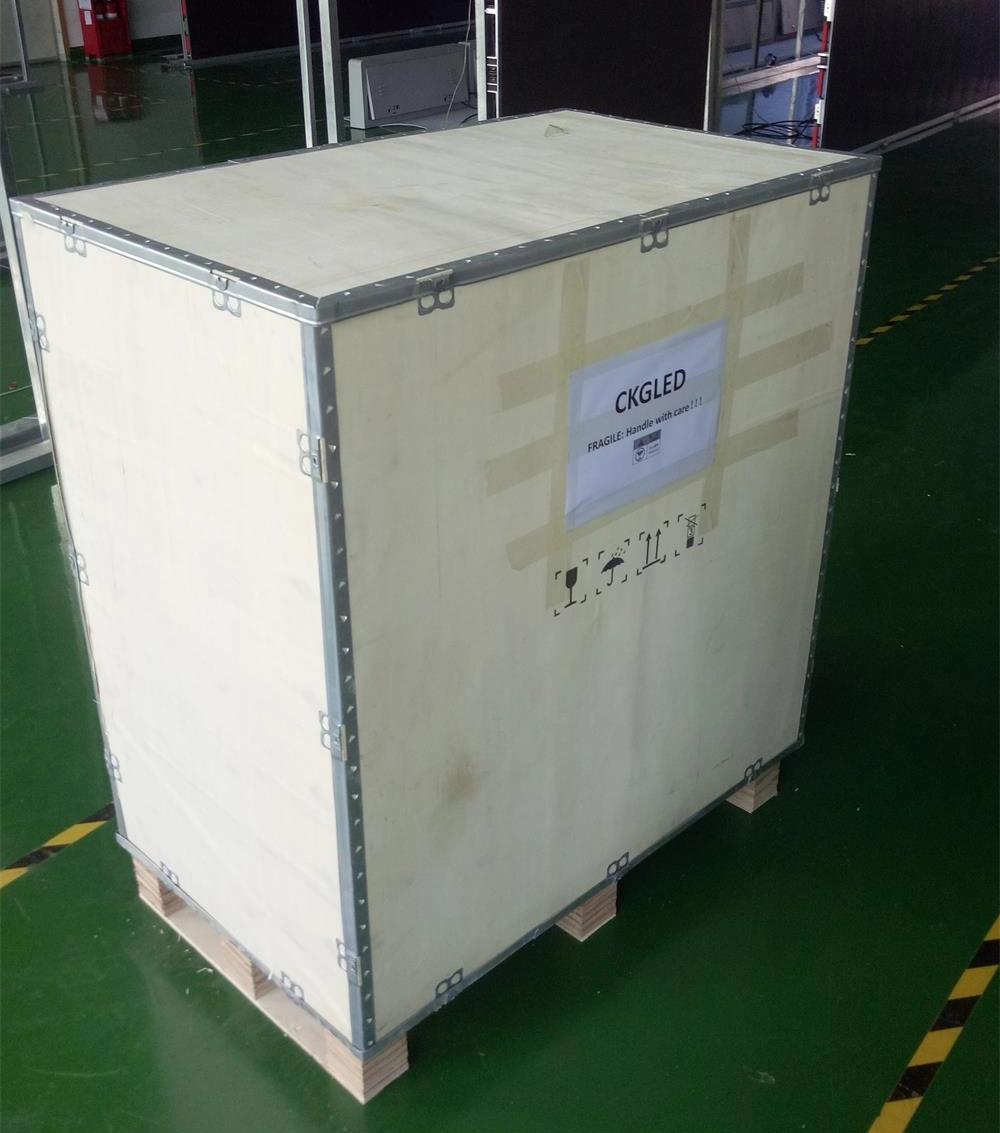

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
