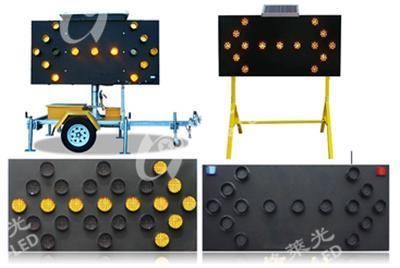

Traffic Road Expressway Guidance Directing Sign Arrow Board
Dongguan Sowo Packaging Materials Co., Ltd.- Tube Chip Color：Single Color
- IP Rating：IP65
- Display Function：Video Display, Image & Text Display, Text Display, Market Display, Digital Display
- Scanning Mode：Static Scan
- Display Type：LED Dot Matrix Display
- Application：Urban Roadxpressway T
Base Info
- Model NO.：GLG-AR-100Y
- Certification：CE, RoHS, CCC
- Brightness (CD/M2)：6000
- LED Tube：15,22,25PCS
- Wave Length：590-594nm
- Color：Yellow or Red
- Life Time：10000hous
- Viewing Angle：30
- Viewing Distance：>1000m
- Transport Package：Wooden Carton
- Specification：1500*750*70mm
- Trademark：GLG-LED
- Origin：China
- HS Code：8531200000
- Production Capacity：50000PCS,Month
Description

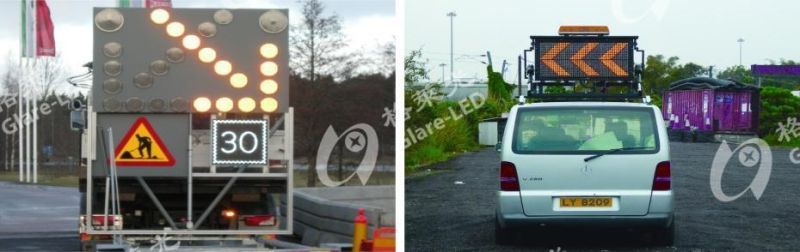

Road construction often leads to road congestion even traffic accidents. LED Car-oriented board is mainly for temporary ease road congestion when there is a traffic jam, the glowing LED indicator arrow provides drivers with a clear direction, which plays an important role in avoiding accidents and insuring the smooth of roads. And it is essential for (especially for the highway) construction work vehicles. LED car-oriented board is generally composed of LED light tubes, which has led traffic lamps with high brightness and they are controlled by the control system. A combination of different light blinking tubes can display different directions or instruction graphics, solar panels can also be installed. PARAMETERSParametersProduct name15 LEDs Guide Display22 Light tube LED Guide Display25Light tube LED Guide DisplayLED Tube15pcs22pcs25pcsWave length590-594nm590-594nm590-594nmColorYellow or RedYellow or RedYellow or RedBrightness6000mcd above6000mcd above6000mcd aboveLife time100000 hours100000 hours100000hoursViewing angle30°30°30°Viewing distance≥1000m≥1000m≥1000mProtection levelIP65IP65IP65MaterialAluminum ,Iron alloy,plastic Aluminum ,Iron alloy,plastic Aluminum ,Iron alloy,plastic Product size1200*600*70mm1200*600*70mm1500*750*70mmGuide functionLeft ,right ,Left and right Left ,right,left and right Left ,right,left and right Working voltageDC12V or 24VDC12V or 24VDC12V or 24VWorking temp-40ºC~+80ºC -40ºC~+80ºC -40ºC~+80ºC
PRODUCT FEATURENovel structure, good- looking appearance;
Aluminum carton or sheet metal iron etc, with a waterproof level of IP65;
Energy saving, LED light-emitting adopted, low power consumption;
Visual distance more than 1000 meters;
Unique optical system, uniform chroma;
Long service life ≥100000 hours;
Flexible control methods, manual control or remote control;
Application Area Widely used in expressway, toll gate, tunnel, etc...
